Installing the Switch
Sample Network Topologies
Installing the Switch
Sample Network Topologies
This section shows a few sample network topologies in which the Switch is
implemented. For more topology information, see the ProCurve networking
products Web site,
www.procurve.com.

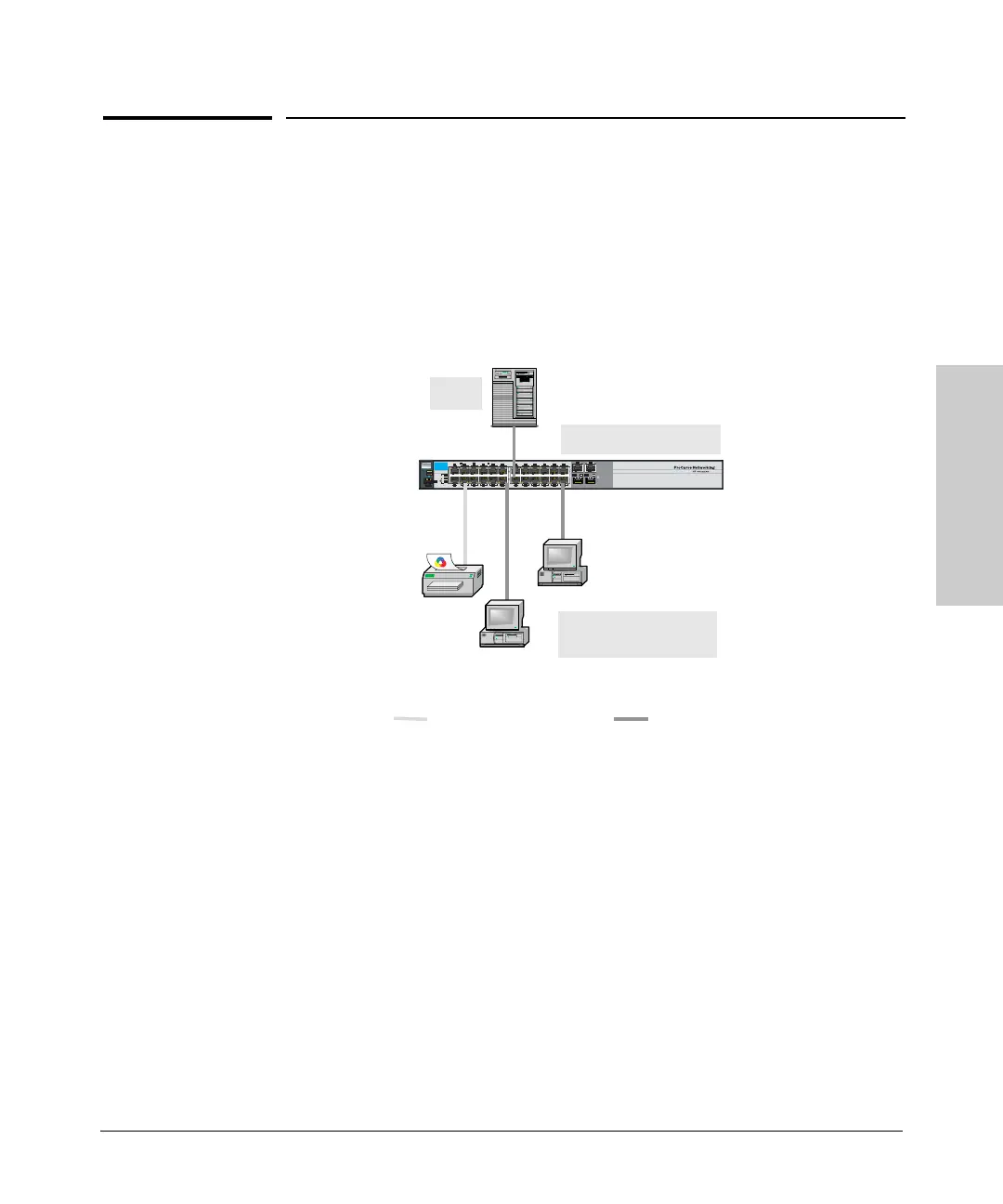

As a Desktop Switch
The Switch is designed to be used primarily as a desktop switch to which end
nodes, printers and other peripherals, and servers are directly connected, as
shown in the above illustration. Notice that the end node devices are
connected to the switch by straight-through or crossover twisted-pair cables.
Either cable type can be used because of the “IEEE Auto MDI/MDI-X” features
on the Switch.
Power
Fault
Locator
Console
10/100Base-T P orts (1 - 24) — Ports are HP Auto MDI-X
Dual-PersonalityP orts:
10/100/1 000-T (T)
orMini-GBIC (M)
!
Useonly one (T or M)
foreac h Por t
25M
*
Spdmode: off = 10Mbps, flash= 100Mbps, on= 1000 Mbps
1210
8642
119
7
53
1
Link
Mode
Link
Mode
24
2220181614
2321
19
171513
Link
Mode
Link
Mode
Link
Mode
LED
Mode
ClearReset
Test
FDx
Spd
Act
*
ProCurve Switch
2510-24
J9019A
26M
25T 26T
Link
Mode
LEGEND: GigabitEthernetcableF ast E thernet cable
Server
ProCurve Switch 2510-24
PCs, local servers and
peripherals
