Introducing the Switch
1
Introducing the Switch
The ProCurve Switch 2510-24 is a multiport switch that can be used to build
high-performance switched workgroup networks. These switches are store-
and-forward devices offering low latency for high-speed networking.
The Switch 2510-24 has 24 auto-sensing 10/100Base-TX RJ-45 ports, two dual-
personality ports—either auto-sensing 10/100/1000Base-T RJ-45 or mini-
GBIC.
The dual-personality ports have either auto-sensing 10/100/1000Base-T RJ-45,
or mini-GBIC connectivity. If any of the mini-GBIC ports are used the corre-
sponding RJ-45 port will be disabled.
These switches are designed to be used primarily as a high-density wiring
closet or desktop switch. These switches can directly connect computers,
printers, and servers to provide dedicated bandwidth to those devices, and
can build a switched network infrastructure by connecting the switch to hubs,
other switches, or routers. In addition, the Series 2510 Switch offer full
network management capabilities.
This chapter describes the ProCurve Switch 2510-24, including:
■ front and back of the switch
■ LEDs
■ switch features
Power
Fault
Locator
Console
10/100Base-T Ports (1 - 24)  Ports are HP Auto MDI-X
Dual-Personality Ports:
10/100/1000-T (T)
or Mini-GBIC (M)
!
Use only one (T or M)
for each Port
25M
*
Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps
12
10
864
2
11
97
5
3
1
Link
Mode
Link
Mode
24
222018
16
14
23
2119
17
15
13
Link
Mode
Link
Mode
Link
Mode
LED
Mode
Clear
Reset
Test
FDx
Spd
Act
*
ProCurve Switch
2510-24
J9019A
26M
25T 26T
Link
Mode

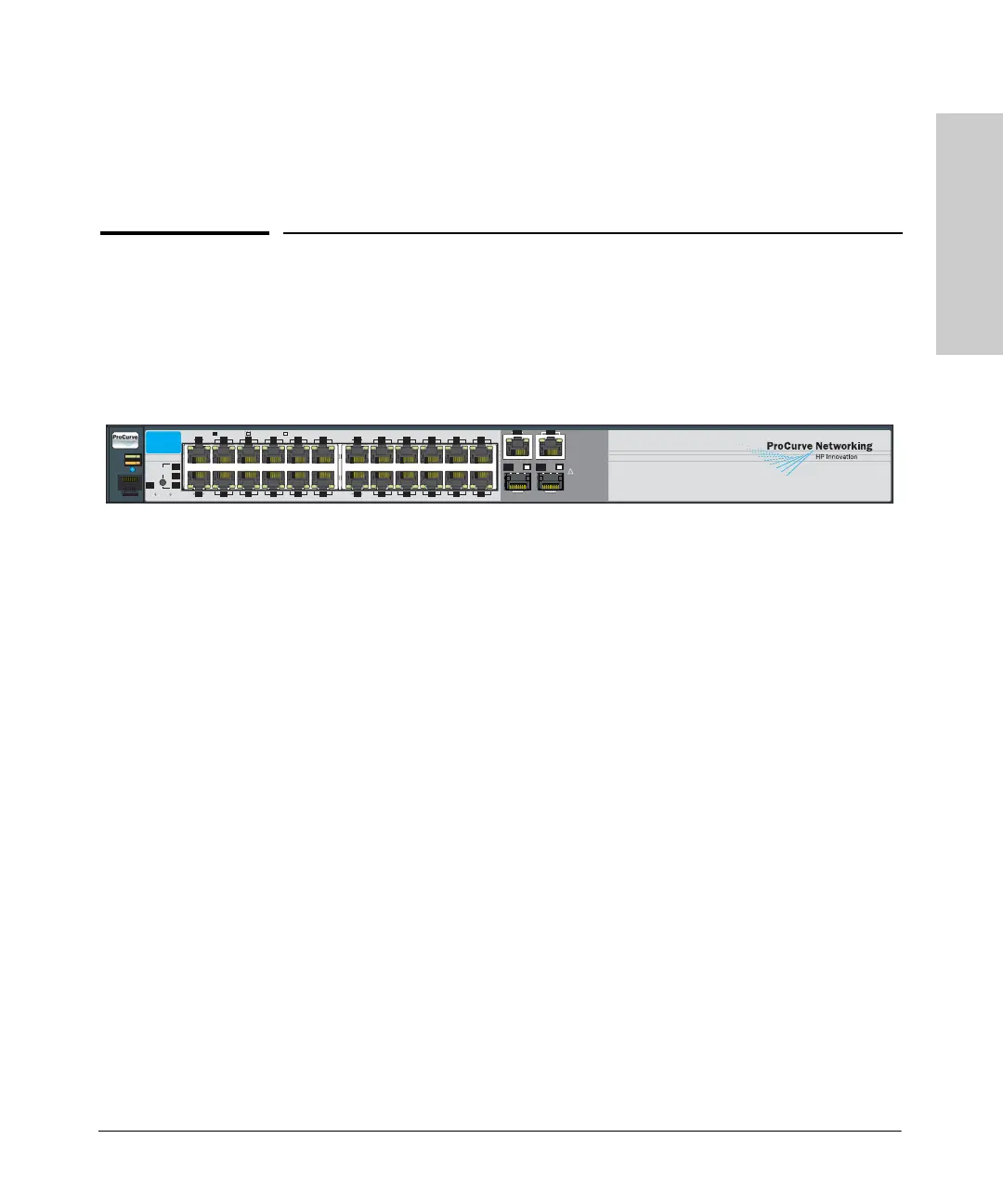

ProCurve Switch 2510-24 (J9019A)
