HP 5120 EI Switch Series User Manual

103
Current online user number is 1
MAC Addr Authenticate state Auth Index
00e0-fc12-3456 MAC_AUTHENTICATOR_SUCCESS 29
# After the user passes authentication, use the display connection command to display the online user
information.
<Device> display connection
Index=29 ,Username=00-e0-fc-12-34-56@aabbcc.net
MAC=00e0-fc12-3456
IP=N/A
IPv6=N/A
Total 1 connection(s) matched.
RADIUS-based MAC authentication configuration example
Network requirements
As shown in Figure 38, a host connects to the device through port GigabitEthernet 1/0/1. The device
uses RADIUS servers for authentication, authorization, and accounting.
Perform MAC authentication on port GigabitEthernet 1/0/1 to control Internet access. Ensure that:
 The device detects whether a user has gone offline every 180 seconds. If a user fails authentication,
the device does not authenticate the user within 180 seconds.
 All MAC authentication users belong to ISP domain 2000 and share the user account aaa with
password 123456.

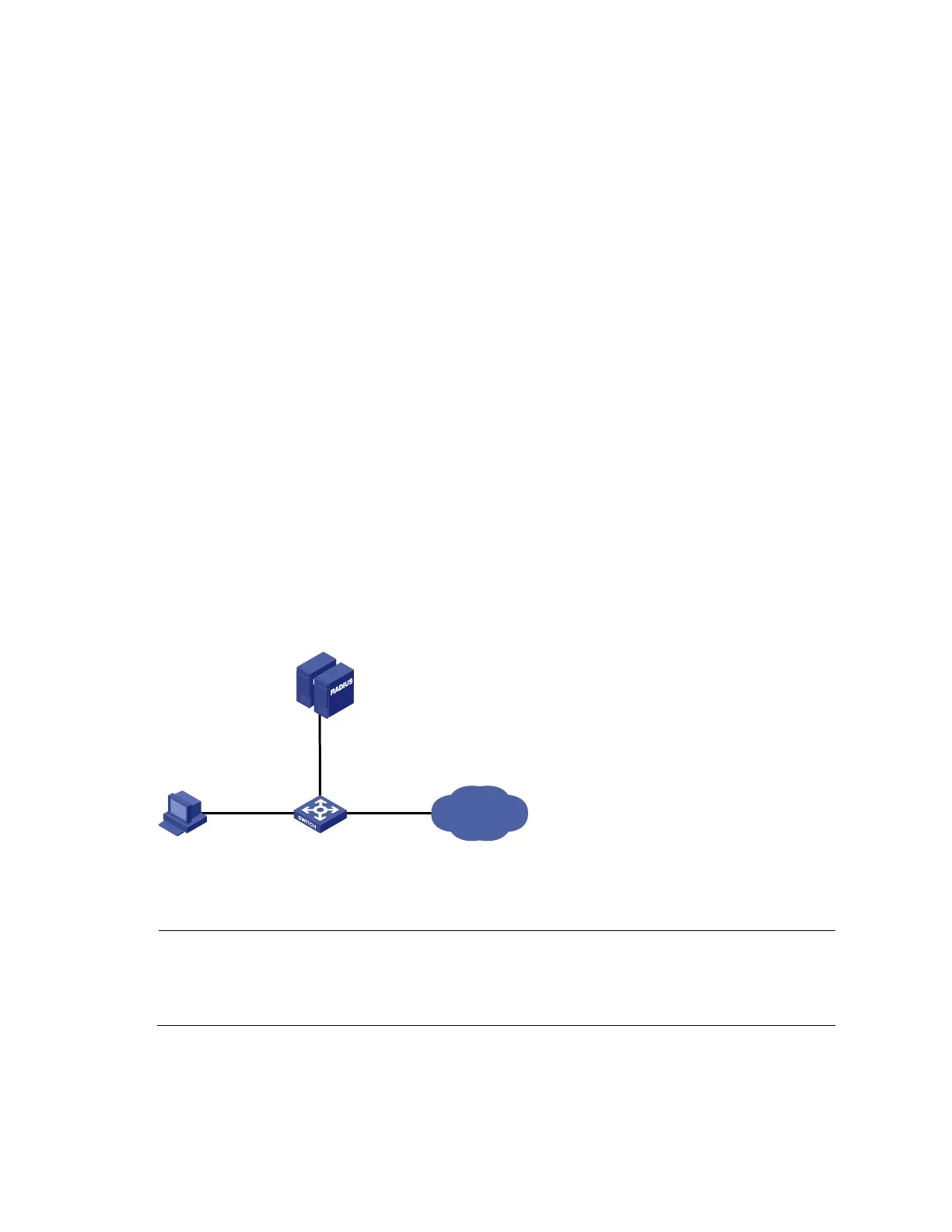

Figure 38 Network diagram for RADIUS-based MAC authentication
IP network
GE1/0/1
DeviceHost
RADIUS servers
Auth:10.1.1.1
Acct:10.1.1.2
Configuration procedure
NOTE:
Ensure that the RADIUS server and the access device can reach each other. Create a shared account
for MAC authentication users on the RADIUS server, and set the username aaa and password 123456
for the account.
1. Configure RADIUS-based MAC authentication on the device.
# Configure a RADIUS scheme.
<Device> system-view
[Device] radius scheme 2000
