HP Elite x2 1011 G1 Maintenance And Service Guide

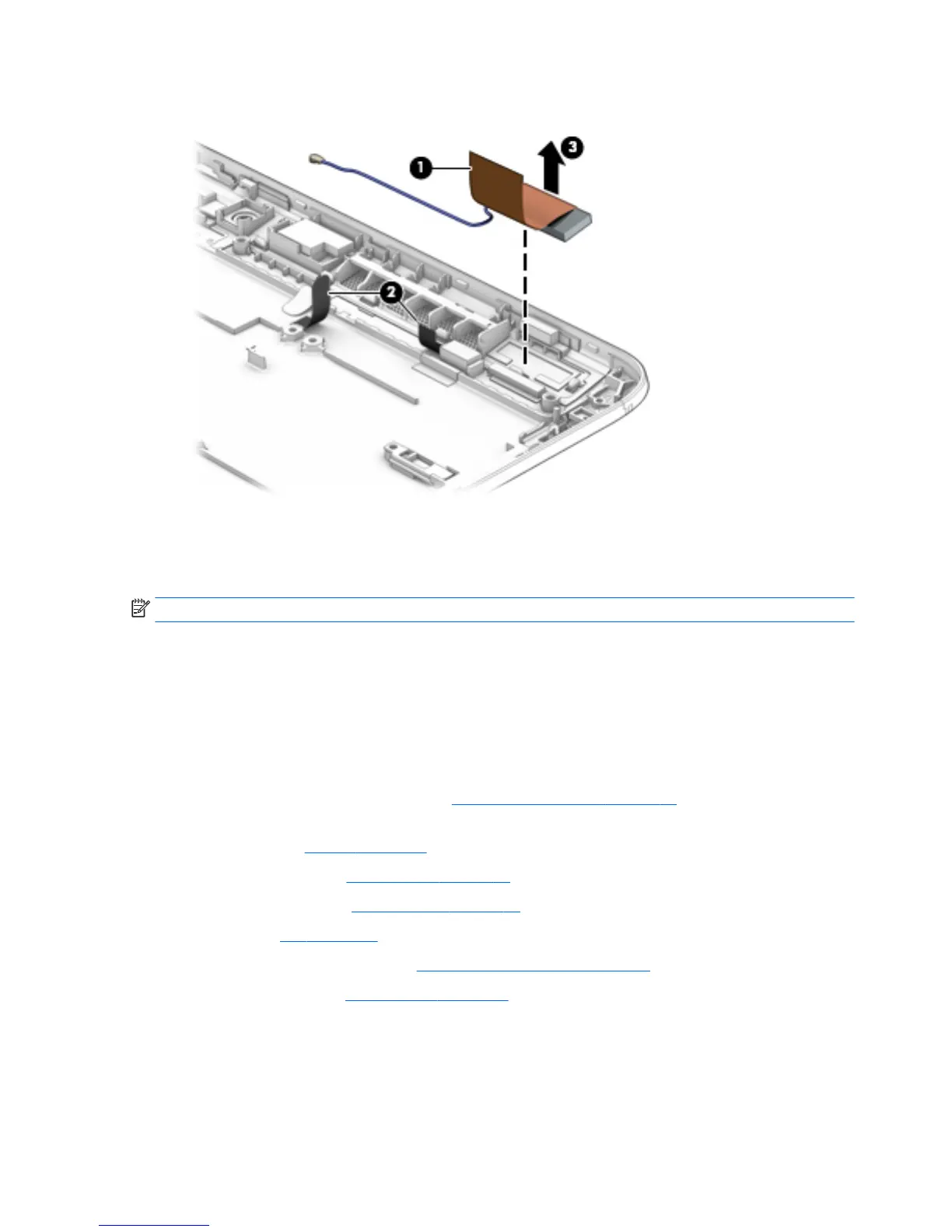

3. Remove the WiGig antenna (3) cable and transceiver.
Reverse this procedure to install the WiGig antenna.
Docking connector board cable
NOTE: The docking connector board cable is included in the Slate Cable Kit, spare part number 793721-001.
Before removing the docking connector board cable, follow these steps:
1. Shut down the slate. If you are unsure whether the slate is off or in Hibernation, turn the slate on, and
then shut it down through the operating system.
2. Disconnect all external devices connected to the slate.
3. Disconnect the power from the slate by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the slate.
4. Remove the display panel assembly (see Display panel assembly on page 35), and then remove
the following components:
a. Battery (see Battery on page 39)
b. WLAN module (see WLAN module on page 40)
c. WWAN module (see WWAN module on page 42)
d. Fan (see Fan on page 46)
e. Docking connector board (see Docking connector board on page 49)
f. System board (see System board on page 52)
Remove the docking connector board cable:
1. Detach the docking connector board cable (1) from the bottom cover. (The docking connector
board cable is attached to the bottom cover with double-sided adhesive.)
72 Chapter 5 Removal and replacement procedures – slate

HP Elite x2 1011 G1 Specifications

General

Stepping	F0
Tjunction	95 °C
Processor code	SR23L
Processor cache	4 MB
Processor cores	2
System bus rate	- GT/s
Processor family	Intel® Core™ M
Processor series	Intel Core M-5Y Mobile series
Processor threads	4
Processor codename	Broadwell
Processor frequency	1.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor package size	30 x 16.5 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor boost frequency	2.6 GHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	14 nm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	4.5 W
Scenario Design Power (SDP)	3.5 W
Configurable TDP-down frequency	0.6 GHz
Internal memory	8 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
Storage media	SSD
Compatible memory cards	MicroSD (TransFlash)
Internal storage capacity	256 GB
Display diagonal	11.6 \
Touch technology	Multi-touch
Graphics card	HD Graphics 5300
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	2 MP
Processor ARK ID	84669
Processor socket	BGA 1234
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Near Field Communication (NFC)	-
Microphone in	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Device type	Tablet PC
Form factor	Slate
Product color	Black, Silver
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Battery capacity	- mAh
Battery life (max)	9 h
Platform	Windows
Operating system installed	Windows 8.1 Pro

Weight and Dimensions

Depth	192.7 mm
Width	298 mm
Height	10.7 mm
Weight	780 g
