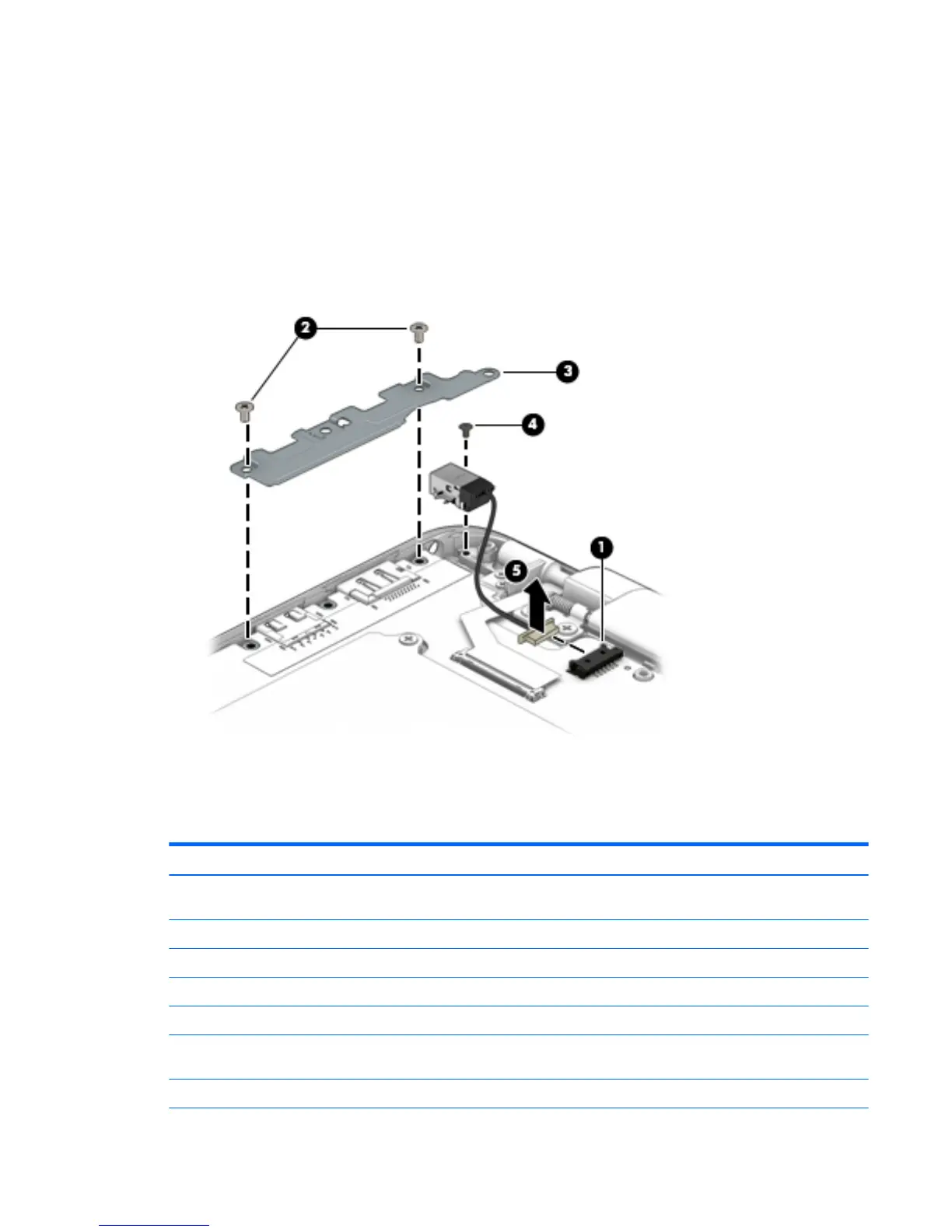

1. Disconnect the power connector cable (1) from the keyboard base system board.
2. Remove the two Phillips PM2.0×3.6 screws (2) that secure the power connector cable bracket to
the top cover.
3. Remove the power connector cable bracket (3).
The power connector cable bracket is included in the Keyboard Base Bracket Kit, spare part number
793728-001.
4. Remove the Phillips PM1.5×2.7 screw (4) that secures the power connector to the top cover.
5. Remove the power connector cable (5).
Reverse this procedure to install the power connector cable.
Keyboard
For use in country or region: Spare part number: For use in country or region: Spare part number:
Keyboard (includes keyboard cable and keyboard
backlight cable):
For use in the Netherlands 793738-B31
For use in Belgium 793738-A41 For use in Northwest Africa 793738-FP1
For use in Brazil 793738-201 For use in Norway 793738-091
For use in Bulgaria 793738-261 For use in Portugal 793738-131
For use in Canada 793738-DB1 For use in Romania 793738-271
For use in the Czech Republic
and Slovakia
793738-FL1 For use in Russia 793738-251
For use in Denmark 793738-081 For use in Saudi Arabia 793738-171
Keyboard 77

HP Elite x2 1011 G1 Specifications

General

Stepping	F0
Tjunction	95 °C
Processor code	SR23L
Processor cache	4 MB
Processor cores	2
System bus rate	- GT/s
Processor family	Intel® Core™ M
Processor series	Intel Core M-5Y Mobile series
Processor threads	4
Processor codename	Broadwell
Processor frequency	1.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor package size	30 x 16.5 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor boost frequency	2.6 GHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	14 nm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	4.5 W
Scenario Design Power (SDP)	3.5 W
Configurable TDP-down frequency	0.6 GHz
Internal memory	8 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
Storage media	SSD
Compatible memory cards	MicroSD (TransFlash)
Internal storage capacity	256 GB
Display diagonal	11.6 \
Touch technology	Multi-touch
Graphics card	HD Graphics 5300
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	2 MP
Processor ARK ID	84669
Processor socket	BGA 1234
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Near Field Communication (NFC)	-
Microphone in	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Device type	Tablet PC
Form factor	Slate
Product color	Black, Silver
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Battery capacity	- mAh
Battery life (max)	9 h
Platform	Windows
Operating system installed	Windows 8.1 Pro

Weight and Dimensions

Depth	192.7 mm
Width	298 mm
Height	10.7 mm
Weight	780 g
