HP Elite x2 1011 G1 Maintenance And Service Guide

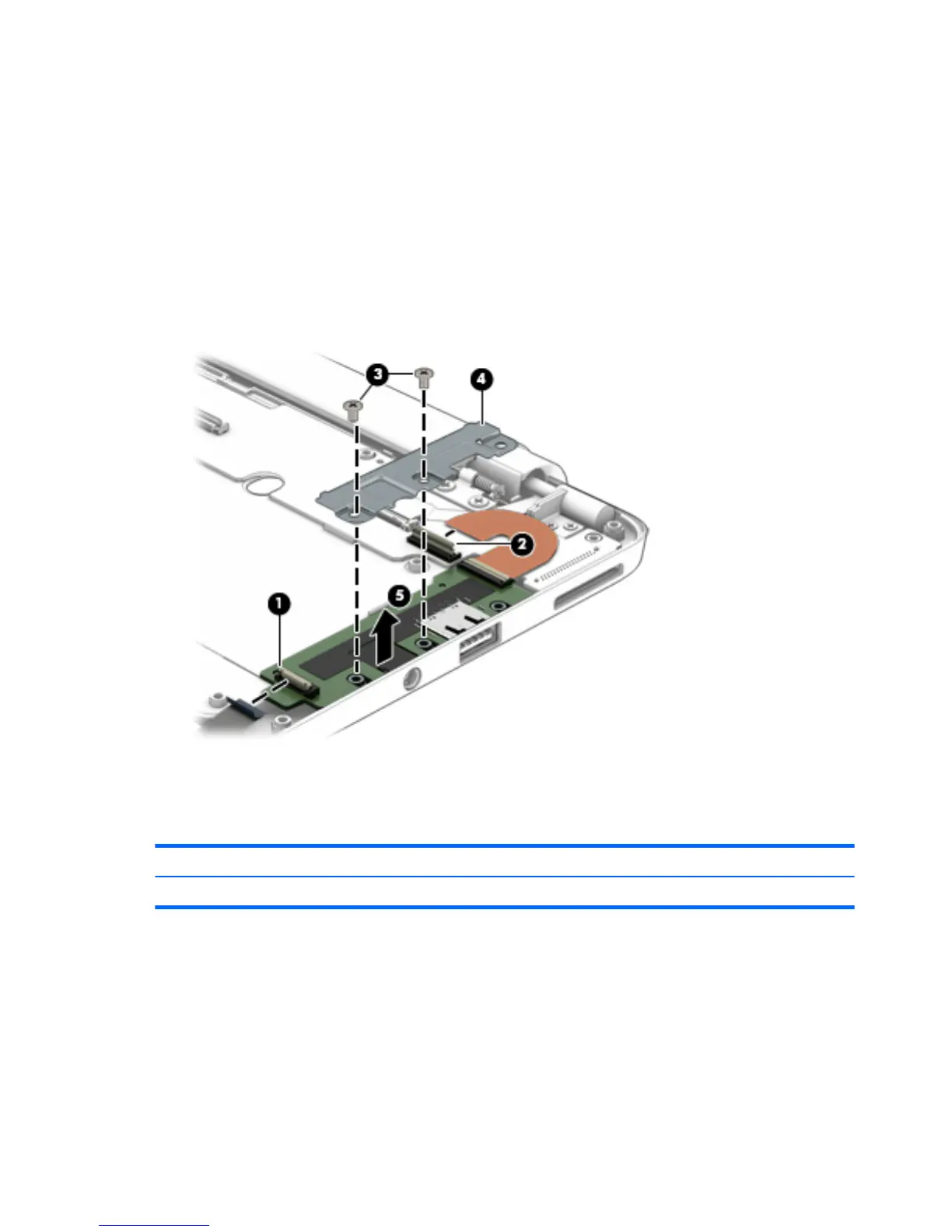

1. Release the ZIF connector (1) to which the smart card reader board cable is attached, and then
disconnect the smart card reader board cable from the keyboard base connector board.
2. Release the ZIF connector (2) to which the connector board cable is attached, and then disconnect
the connector board cable from the keyboard base system board.
3. Remove the two Phillips PM2.0×3.6 screws (3) that secure the connector board and bracket to
the top cover.
4. Remove the connector board bracket (4).
The connector board bracket is included in the Keyboard Base Bracket Kit, spare part number
793728-001.
5. Remove the connector board (5) and cable.
Reverse this procedure to install the connector board.
Keyboard base system board
Description Spare part number
Keyboard base system board (includes docking/adapter port, USB port, and audio jack) 806252-001
Before removing the keyboard base system board, follow these steps:
1. Shut down the keyboard base. If you are unsure whether the keyboard base is off or in Hibernation, turn
the keyboard base on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the keyboard base.
3. Disconnect the power from the keyboard base by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the keyboard base.
84 Chapter 6 Removal and replacement procedures – Keyboard base

HP Elite x2 1011 G1 Specifications

General

Stepping	F0
Tjunction	95 °C
Processor code	SR23L
Processor cache	4 MB
Processor cores	2
System bus rate	- GT/s
Processor family	Intel® Core™ M
Processor series	Intel Core M-5Y Mobile series
Processor threads	4
Processor codename	Broadwell
Processor frequency	1.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor package size	30 x 16.5 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor boost frequency	2.6 GHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	14 nm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Design Power (TDP)	4.5 W
Scenario Design Power (SDP)	3.5 W
Configurable TDP-down frequency	0.6 GHz
Internal memory	8 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
Storage media	SSD
Compatible memory cards	MicroSD (TransFlash)
Internal storage capacity	256 GB
Display diagonal	11.6 \
Touch technology	Multi-touch
Graphics card	HD Graphics 5300
Rear camera type	Single camera
Rear camera resolution (numeric)	5 MP
Front camera resolution (numeric)	2 MP
Processor ARK ID	84669
Processor socket	BGA 1234
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Near Field Communication (NFC)	-
Microphone in	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Device type	Tablet PC
Form factor	Slate
Product color	Black, Silver
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
Battery capacity	- mAh
Battery life (max)	9 h
Platform	Windows
Operating system installed	Windows 8.1 Pro

Weight and Dimensions

Depth	192.7 mm
Width	298 mm
Height	10.7 mm
Weight	780 g
