System board callouts

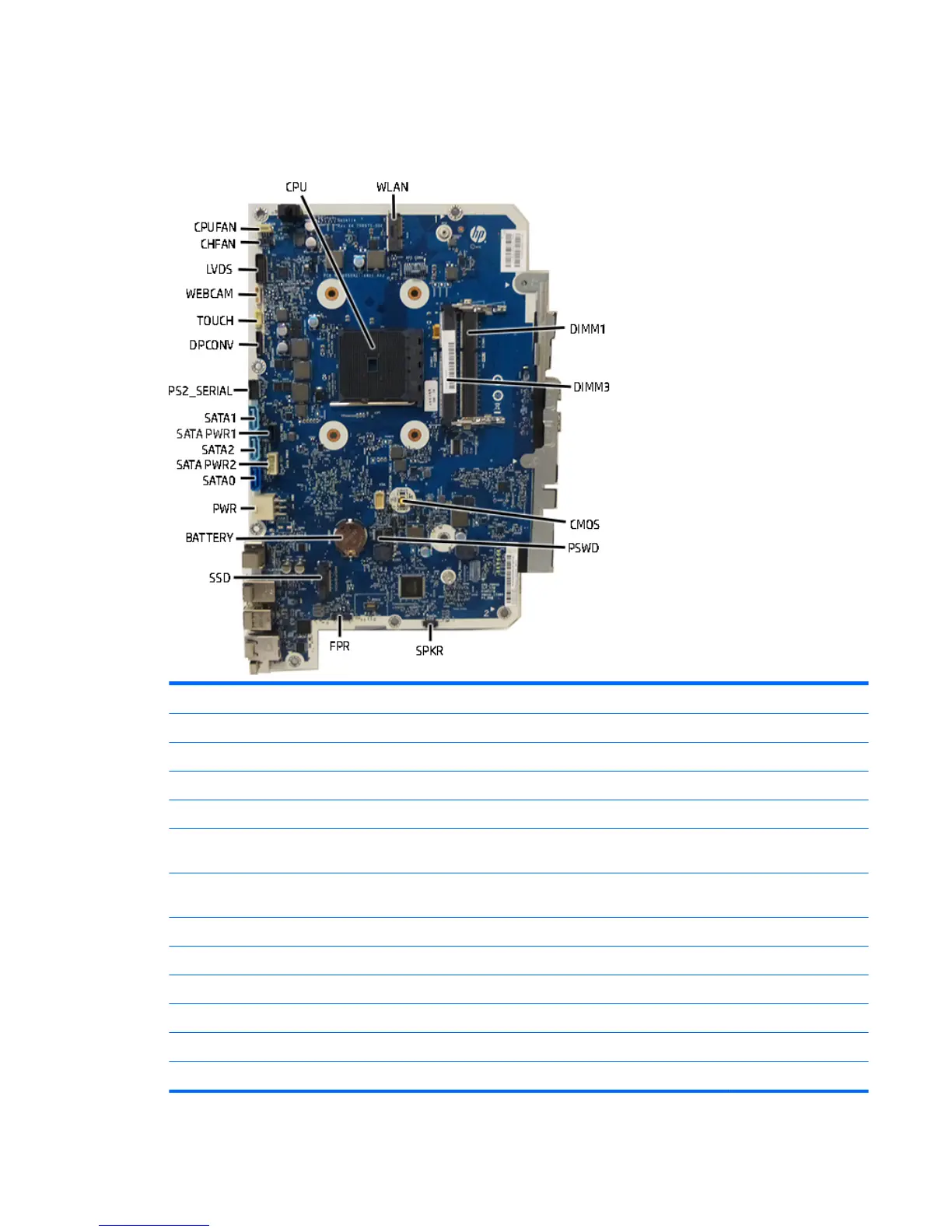

System board callouts, HP EliteOne 705 G2 models
Sys Bd Label Color Component Sys Bd Label Color Component
CPU Black Processor socket SATA0 Dark blue Hard drive
WLAN Black WLAN module connector SATAPWR2 White Hard drive power
DIMM1 Black Memory module SATA2 Black Optical drive connector
DIMM3 Black Memory module SATAPWR1 Black Optical drive power
VGA Black Display connector SATA1 White Second hard drive
connector
CMOS Yellow Reset CMOS PS2_SERIAL Black PS2/serial board
connector
PSWD Green Clear system passwords DPCONV Black Converter board
SPKR Black Speaker TOUCH White Touch screen connector
FPR Black Fingerprint reader WEBCAM Black Webcam connector
SSD Black M.2 SSD drive LVDS Black Display connector
BATTERY Black RTC battery CHFAN Black Fan connector
PWR White Main power connector CPUFAN White Fan connector
System board callouts 67
