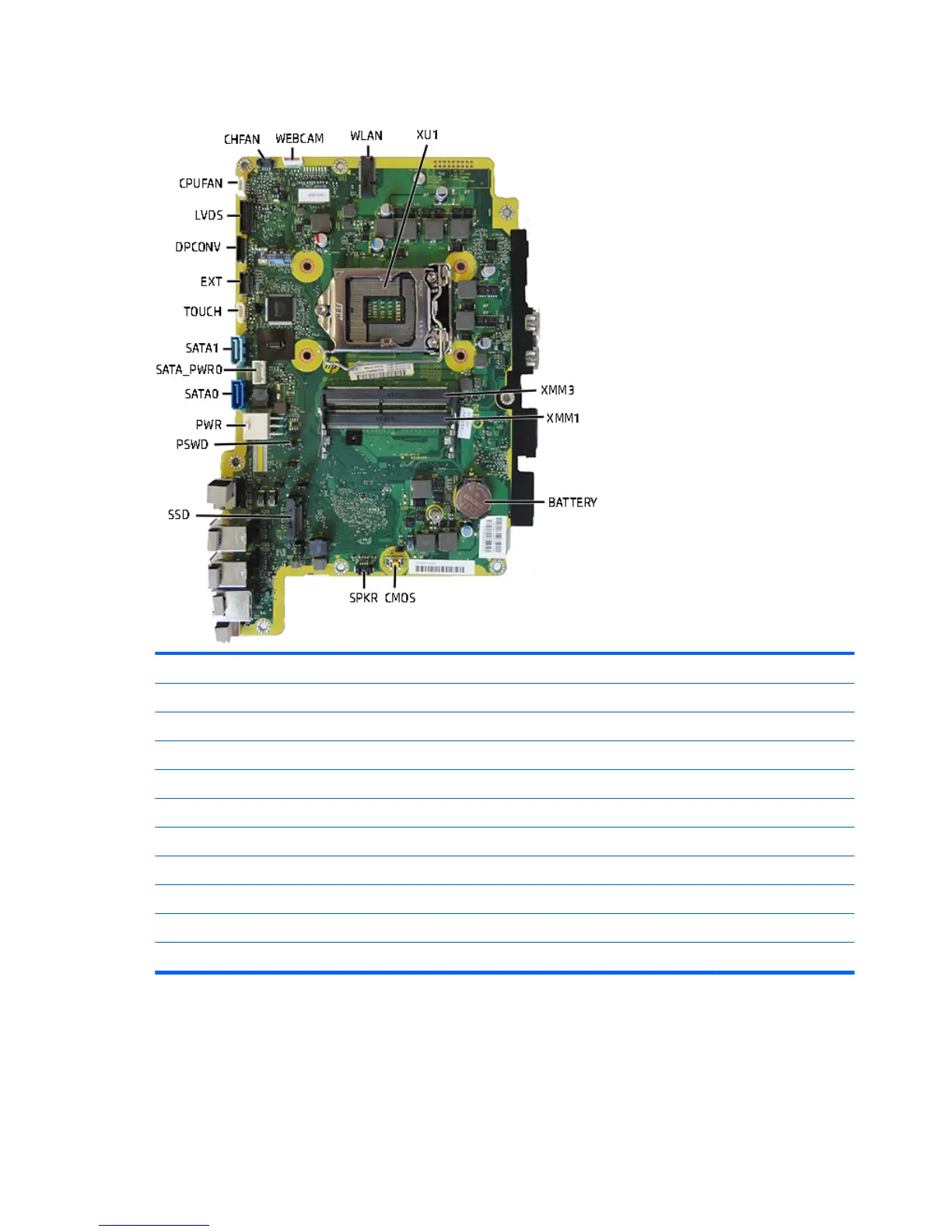

System board callouts, HP ProOne 600 G2 models
Sys Bd Label Color Component Sys Bd Label Color Component
CHFAN Black Fan connector PSWD Green Clear system passwords
WEBCAM Black Webcam connector PWR White Main power
WLAN Black WLAN module SATA0 Dark blue Hard drive
XU Black Processor socket SATAPWR0 White Hard drive power
XMM3 Black Memory module SATA1 White Second hard drive
XMM1 Black Memory module TOUCH White Touch screen
BATTERY Black RTC battery EXT Black PS2/serial board
CMOS Yellow Reset CMOS DPCONV Black Converter board
SPKR Black Speaker LVDS Black Display connector
SSD Black M.2 SSD drive CPUFAN White Fan connector
70 Chapter 4 Removal and Replacement Procedures
