Serial/PS2 board

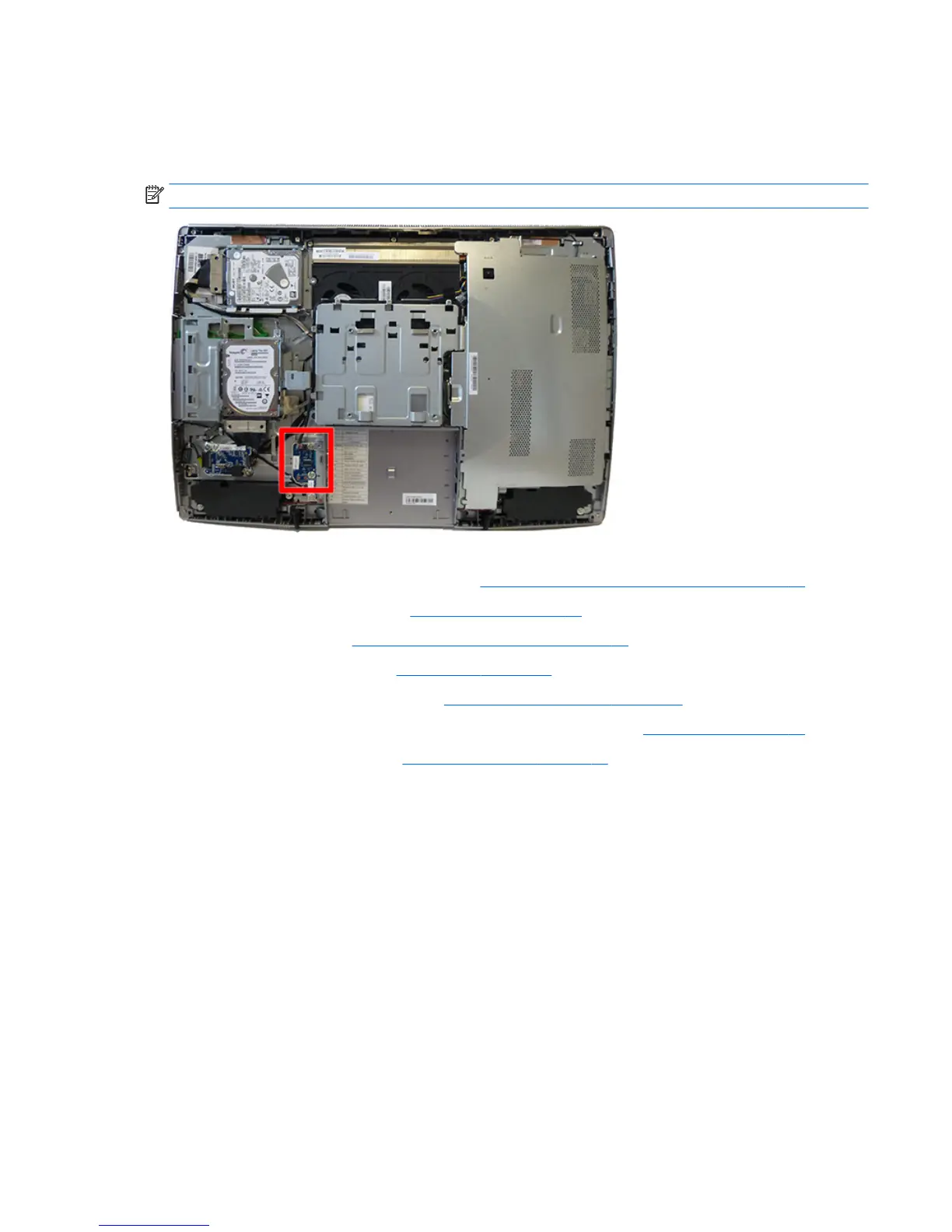

The serial/PS2 board is located to the left of the center rear I/O panel. It is secured with two screws and has
one connected cable.
NOTE: HP ProOne 600 models also include a hood sensor on the serial port/PS2 board.
To remove the serial/PS2 board:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 31).
2. Remove the rear port cover (see Rear port cover on page 31).
3. Remove the stand (see Attaching and removing a stand on page 32).
4. Remove the access panel (see Access panel on page 37).
5. Remove the system board shield (see System board (EMI) shield on page 48).
6. Remove the I/O bracket secured to the system board (see callout 2 in System board on page 64).
7. Remove the rear I/O panel (see Center rear I/O panel on page 73).
8. Disconnect the cable (1) from the board.
Serial/PS2 board 71
