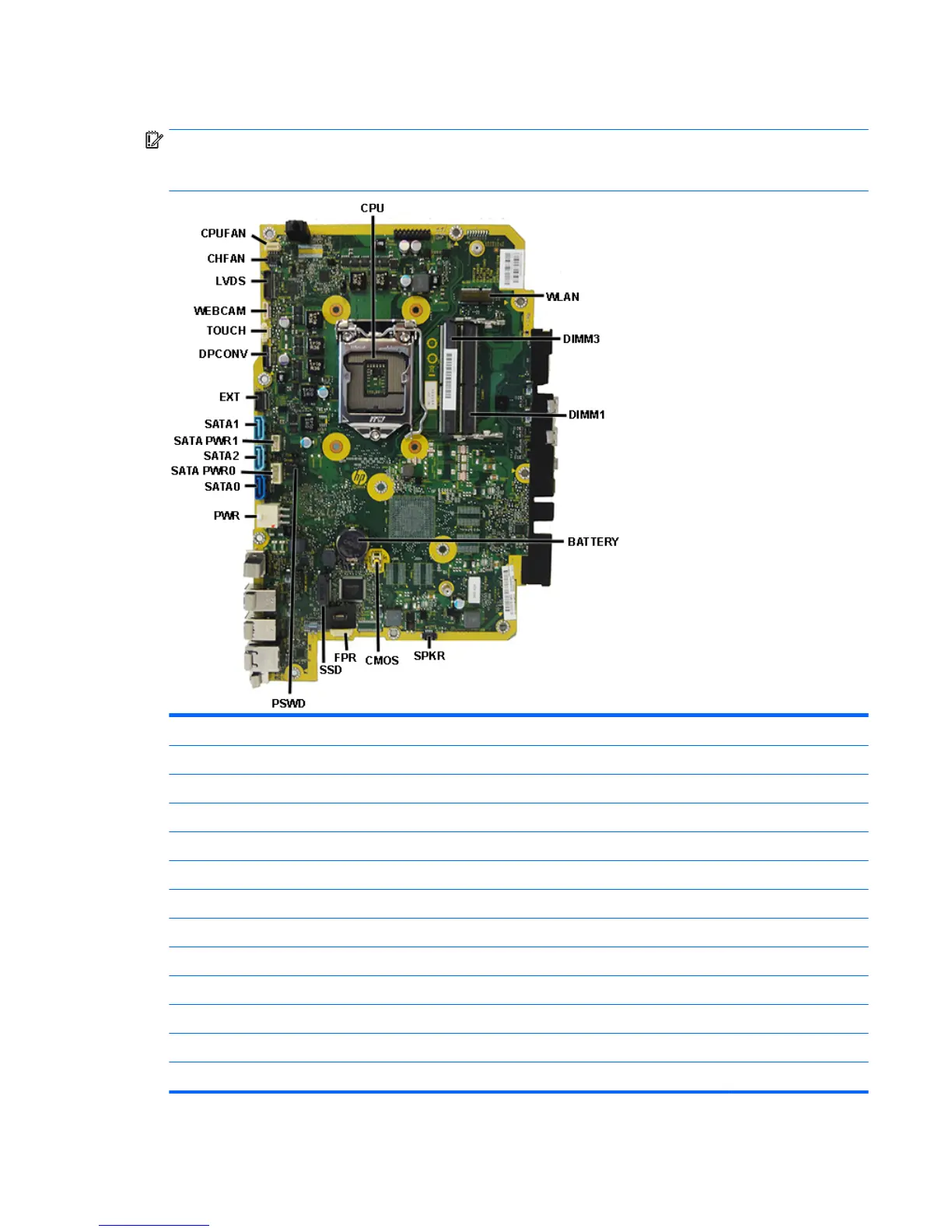

System board callouts, HP EliteOne 800 G2 UMA models
IMPORTANT: The LVDS connector is in a dierent location on the system board of EliteOne 800 dGPU
models and EliteOne 800 UMA models. Additionally, each model has a unique LVDS cable. The cables are not
interchangeable between dGPU (discrete) and UMA models.
Sys Bd Label Color Component Sys Bd Label Color Component
CPU Black Processor socket SATAPWR0 White Hard drive power
WLAN Black WLAN module SATA2 Black Optical drive
DIMM3 Black Memory module SATAPWR1 Black Optical drive power
DIMM1 Black Memory module SATA1 White Second hard drive
BATTERY Black RTC battery EXT Black PS2/serial board
SPKR Black Speaker DPCONV Black Converter board
CMOS Yellow Reset CMOS TOUCH White Touch screen
FPR Black Fingerprint reader WEBCAM Black Webcam connector
SSD Black M.2 SSD drive LVDS Black Display connector
PSWD Green Clear system passwords CHFAN Black Fan connector
PWR White Main power CPUFAN White Fan connector
SATA0 Dark blue Hard drive
