If the server does not power on, verify the following items:
• The site power is available.
• The power cord is properly connected to the server power jack and to a working power source.
• The internal power supply cable is properly connected to the system board.

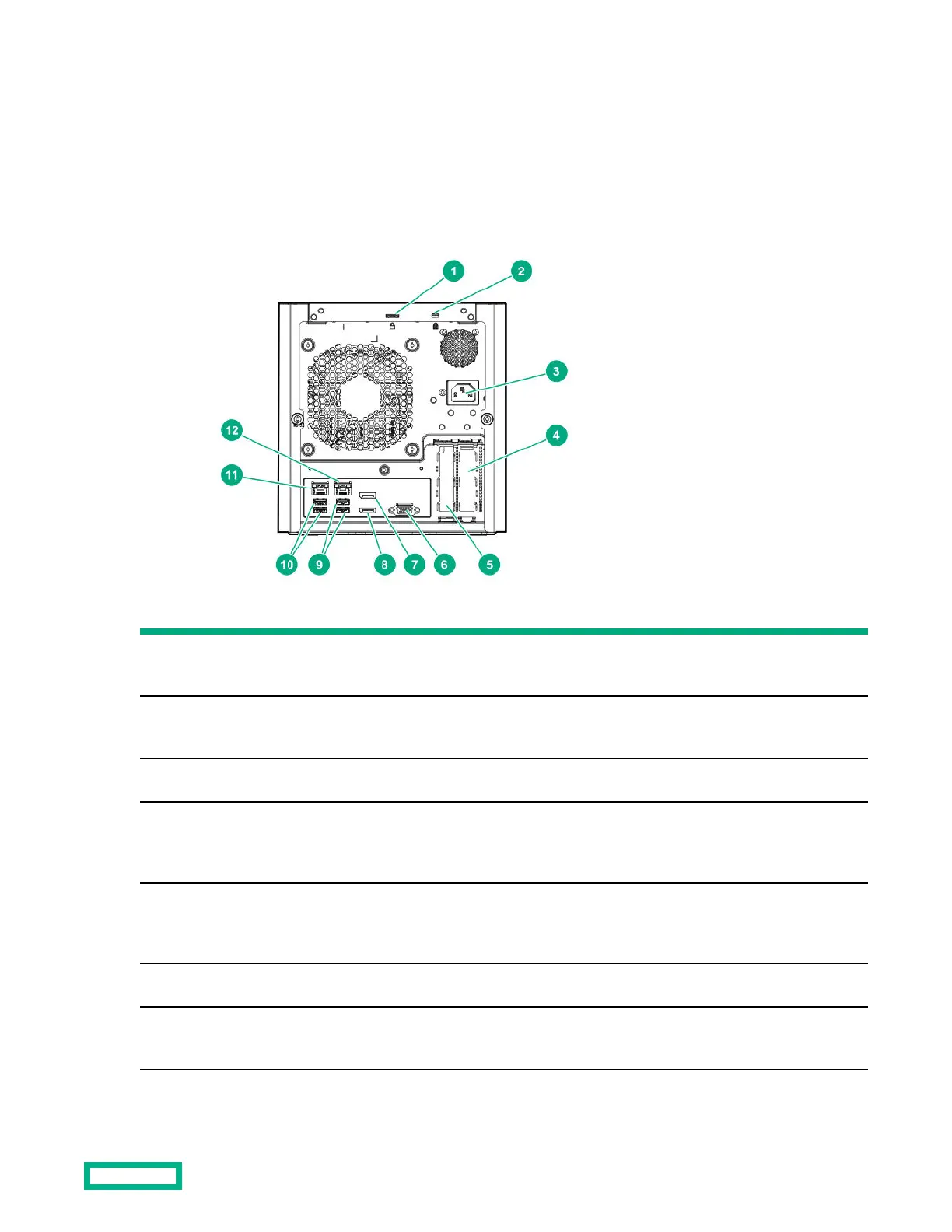

Rear panel components
Item Component Description
1 Padlock eye To lock the chassis cover and prevent access to the internal
components, attach a padlock here.
2 Kensington security slot To secure the server to a heavy or immovable object, connect an
anti-theft security cable here.
3 Power jack Connects the power cord.
4 Expansion slot 2, PCIe3 ×4 (1) For additional hardware capabilities, install a compatible low‑profile
PCIe expansion board here. This expansion slot supports expansion
boards with a physical connector link widths of up to ×16.
1
5 Expansion slot 1, PCIe3 ×8 (8, 4, 1) For additional hardware capabilities, install a compatible low‑profile
PCIe expansion board here. This expansion slot supports expansion
boards with a physical connector link widths of up to ×16.
1
6 Video port
Connects to an analog VGA monitor or projector.
7 Display port 1 Connects to a digital display device, such as a high-resolution set top
boxes or TV displays.
2
Table Continued
Component identification 8
