Solid-state drive (M.2)
Description
256-GB solid-state drive, 2280SS, PCIe
128-GB solid-state drive, 2280SS, PCIe
Before removing the solid-state drive, follow these steps:
To remove the solid-state drive:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 17).
2. Remove the bezel (see Bezel on page 23).
3. Remove the display panel (see Display panel on page 26).
4. Remove the system board (see System board on page 43), and then turn it over.
Remove the solid-state drive:

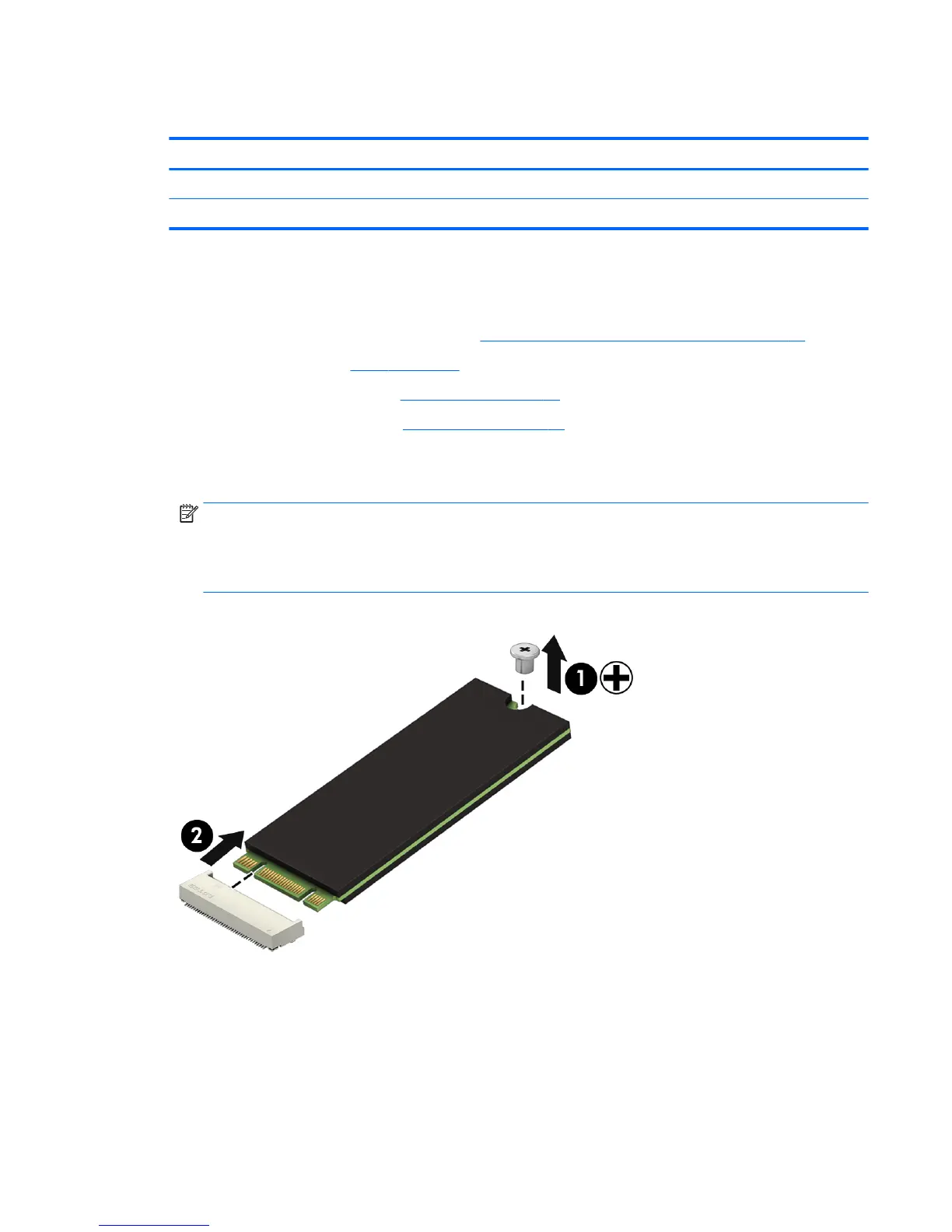

1. Remove the Phillips PM2.0×3.5 screw (1) that secures the solid-state drive to the system board.
NOTE: If the module springs up when the screw is removed, be sure to remove the module at the angle
dictated by the spring mechanism.
When installing the module, be sure to insert the module at the angle that it sits after the screw is
removed and the module springs up.
2. Remove the solid-state drive (2) by pulling the drive away from the slot at an angle.
Reverse this procedure to install the solid-state drive.
Solid-state drive (M.2) 51
