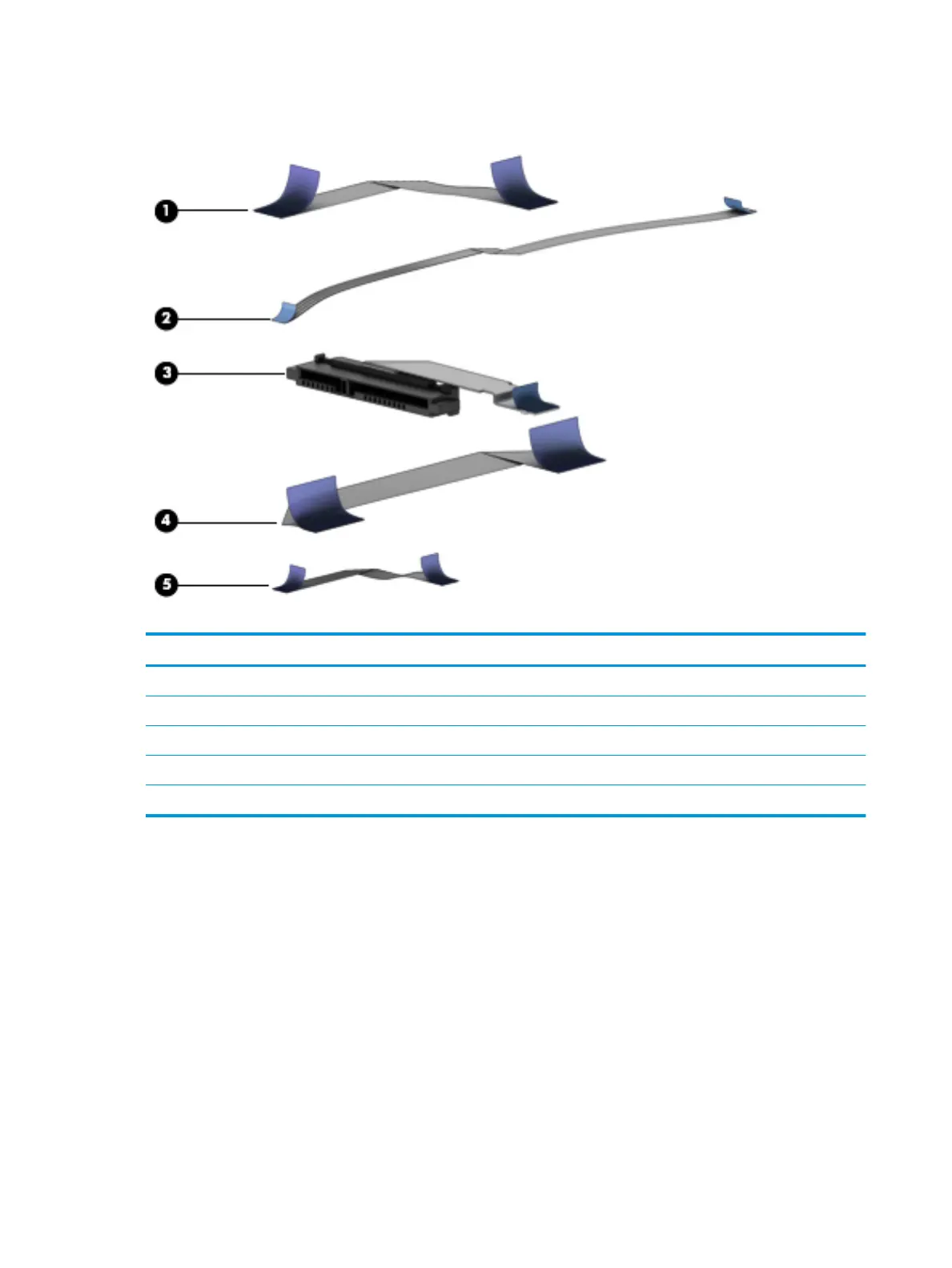

Cables
T
able 3-4
Cables and their descriptions
Item
C
omponent
Spare part number
(1)
T
ouchPad cable
L51092-001
(2)
Po
wer button board cable
L51094-001
(3)
Hard drive cable
L51095-001
(4)
USB/
audio board cable
L51093-001
(5)
Fingerprint reader cable
L51096-001
22
Chapter 3 Il
lustra
ted parts catalog
29
31
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 Getting to Know Your Computer
13
Right Side
13
Left Side
14
Display
16
Keyboard Area
17
Touchpad
17
Lights
18
Speakers and Fingerprint Reader
19
Special Keys
20
Bottom
21
Labels
22
3 Illustrated Parts Catalog
23
Computer Major Components
23
Display Assembly Subcomponents
27
Mass Storage Devices
29
Cables
30
Miscellaneous Parts
31
4 Removal and Replacement Procedures Preliminary Requirements
33
Tools Required
33
Service Considerations
33
Plastic Parts
33
Cables and Connectors
33
Drive Handling
34
Workstation Guidelines
34
Electrostatic Discharge Information
34
Generating Static Electricity
35
Preventing Electrostatic Damage to Equipment
35
Personal Grounding Methods and Equipment
36
Grounding the Work Area
36
Recommended Materials and Equipment
36
Packaging and Transporting Guidelines
37
5 Removal and Replacement Procedures for Authorized Service Provider Parts
38
Component Replacement Procedures
38
Preparation for Disassembly
38
Bottom Cover and Rubber Foot Kit
39
Battery
42
WLAN Module
43
Hard Drive and Hard Drive Cover
45
Solid-State Drive
48
Memory Module and Cover
49
Power Button Board
52
Power Button
53
Touchpad
54
Speakers
55
Heat Sink
57
Fingerprint Reader Board
60
Fan
61
Usb/Audio Board
62
System Board
64
Display Assembly
67
Power Connector
75
Keyboard/Top Cover
76
6 Using Setup Utility (BIOS)
77
Starting Setup Utility (BIOS)
77
Updating Setup Utility (BIOS)
77
Determining the BIOS Version
77
Downloading a BIOS Update
78
7 Using HP PC Hardware Diagnostics
79
Using HP PC Hardware Diagnostics Windows (Select Products Only)
79
Downloading HP PC Hardware Diagnostics Windows
79
Downloading the Latest HP PC Hardware Diagnostics Windows Version
80
Downloading HP Hardware Diagnostics Windows by Product Name or Number (Select Products Only)
80
Installing HP PC Hardware Diagnostics Windows
80
Using HP PC Hardware Diagnostics UEFI
80
Starting HP PC Hardware Diagnostics UEFI
81
Downloading HP PC Hardware Diagnostics UEFI to a USB Flash Drive
81
Downloading the Latest HP PC Hardware Diagnostics UEFI Version
81
Downloading HP PC Hardware Diagnostics UEFI by Product Name or Number (Select Products Only)
81
Using Remote HP PC Hardware Diagnostics UEFI Settings (Select Products Only)
82
Downloading Remote HP PC Hardware Diagnostics UEFI
82
Downloading the Latest Remote HP PC Hardware Diagnostics UEFI Version
82
Downloading Remote HP PC Hardware Diagnostics UEFI by Product Name or Number
82
Customizing Remote HP PC Hardware Diagnostics UEFI Settings
82
8 Backing Up, Restoring, and Recovering
84
Backing up Information and Creating Recovery Media
84
Using Windows Tools
84
Using the HP Cloud Recovery Download Tool to Create Recovery Media (Select Products Only)
84
Restoring and Recovery
85
Restoring, Resetting, and Refreshing Using Windows Tools
85
Recovering Using HP Recovery Media
85
Changing the Computer Boot Order
85
9 Specifications
86
10 Power Cord Set Requirements
87
Requirements for All Countries
87
Requirements for Specific Countries and Regions
88
11 Recycling
90
