Hard drive and hard drive cover
Table 5-4 Hard drive and hard drive cover descriptions and part numbers
Description Spare part number
Hard drive, 1 TB, 5400 rpm, hybrid 8 GB SSD 924036-860
Hard drive, 1 TB, 5400 rpm L30422-006
Hard drive, 500 GB, 5400 rpm 778186-005
Hard drive cover for use in models without a ngerprint reader L51121-001
Hard drive cover for use in models with a ngerprint reader L51122-001
Before removing the hard drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (see Bottom cover and Rubber Foot Kit on page 31).
3. Disconnect the battery (see Battery on page 34).

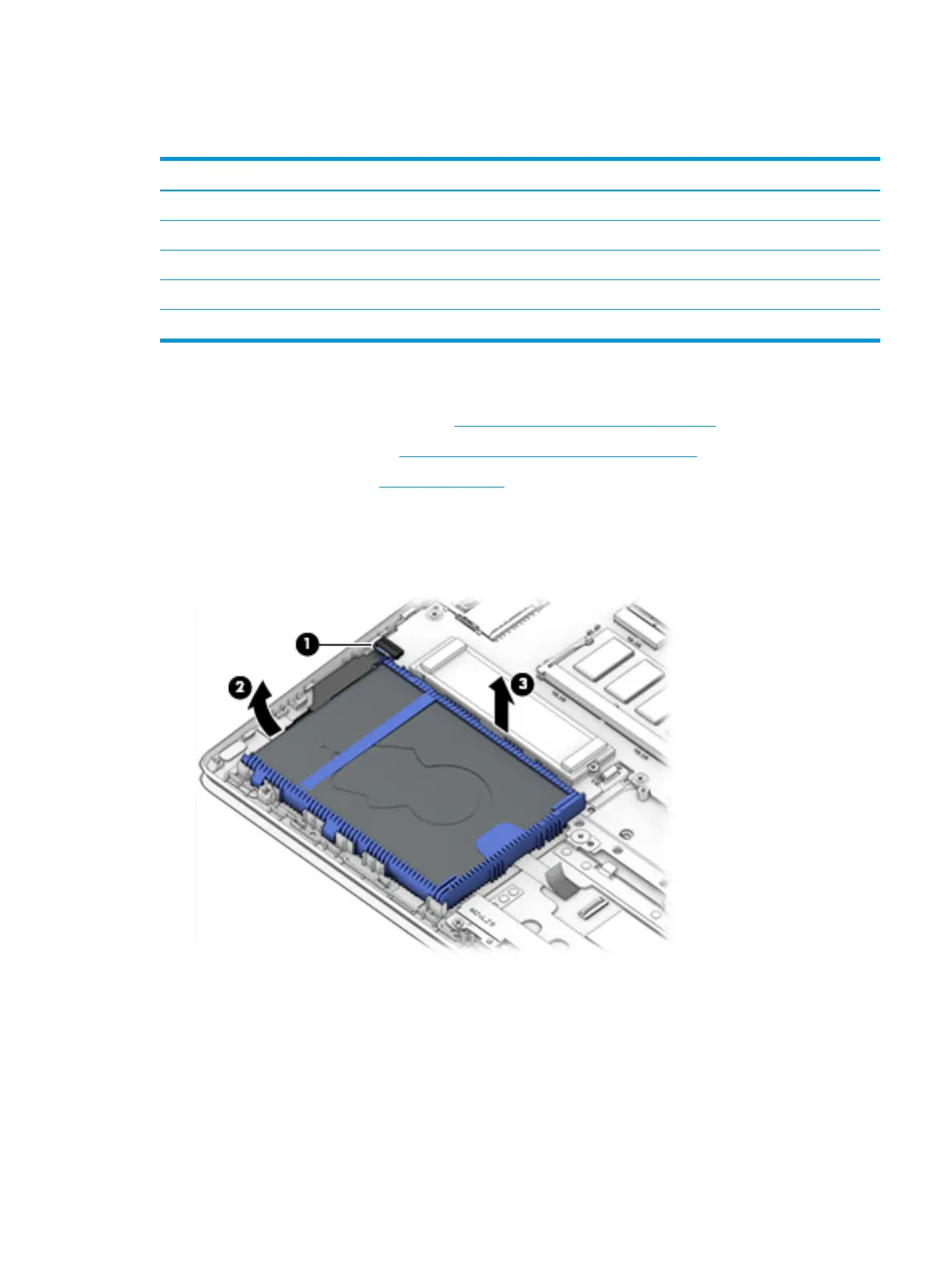

Remove the hard drive:
1. Disconnect the hard drive cable from the system board ZIF connector (1).
2. Lift up the connector side of the hard drive (2), and then remove the hard drive from the computer (3).
Component replacement procedures 37
