Display assembly
NOTE: The display assembly is spared at the subcomponent level only. For more display assembly spare
part information, see the individual removal subsections.
Before removing the display assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (see Bottom cover and Rubber Foot Kit on page 31).
3. Remove the battery (see Battery on page 34).
Remove the display assembly:

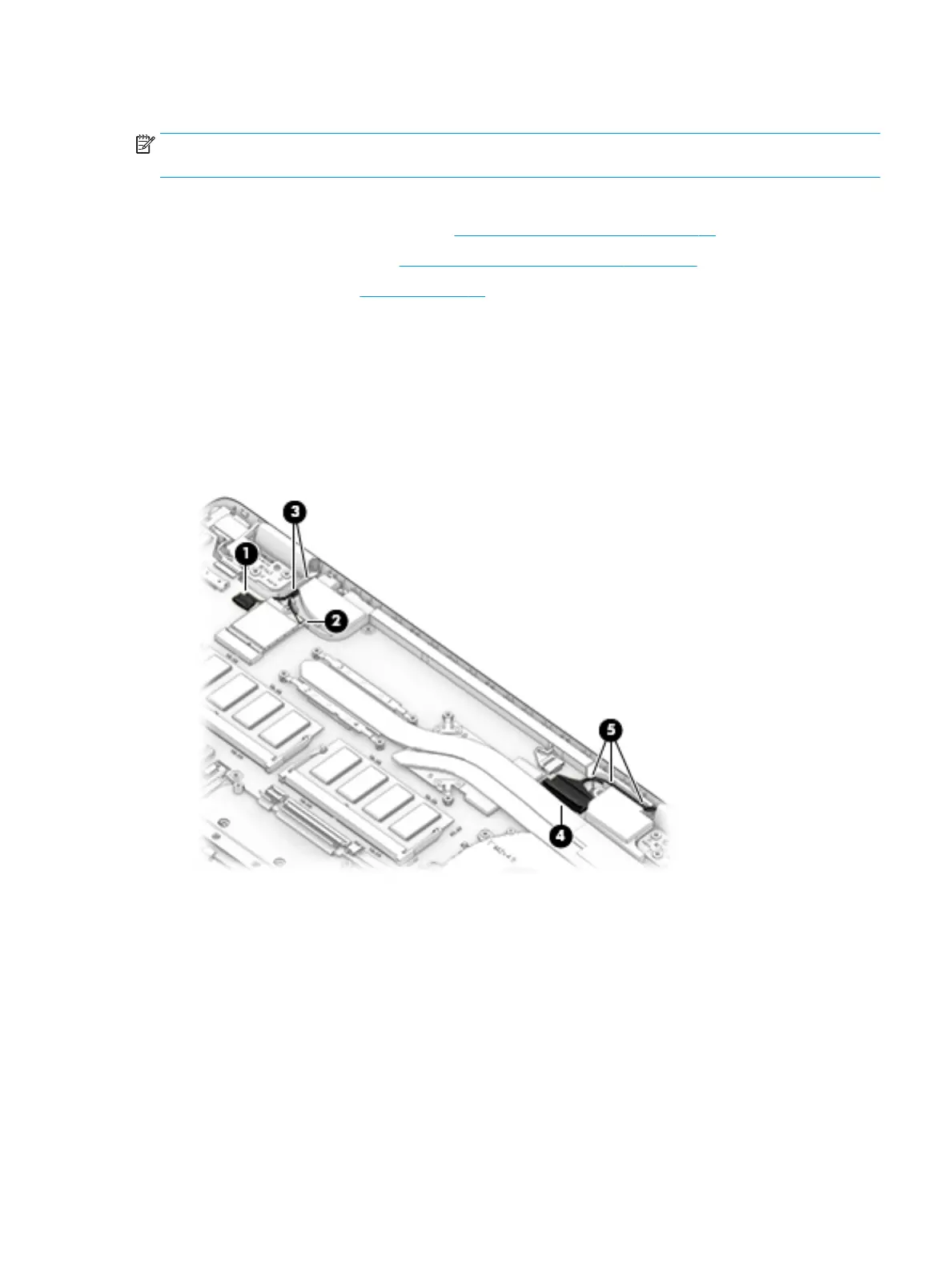

1. Disconnect the webcam (CCD) cable from the ZIF connector on the system board (1).
2. Disconnect the antenna cables from the WLAN module (2).
3. Remove the webcam cable and antenna cables from the routing channel in the speaker (3).
4. Disconnect the display cable from the ZIF connector on the system board (4).
5. Remove the display cable from the routing channel in the speaker (5).
6. Open the display.
7. Remove the two Phillips M2.5 × 5.0 screws (1) from each hinge.
Component replacement procedures 59
