Speakers
Table 5-10 Speaker description and part number
Description Spare part number
Speakers (includes left and right speakers and cables) L51127-001
Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 30).
2. Remove the bottom cover (see Bottom cover and Rubber Foot Kit on page 31).
3. Remove the battery (see Battery on page 34).

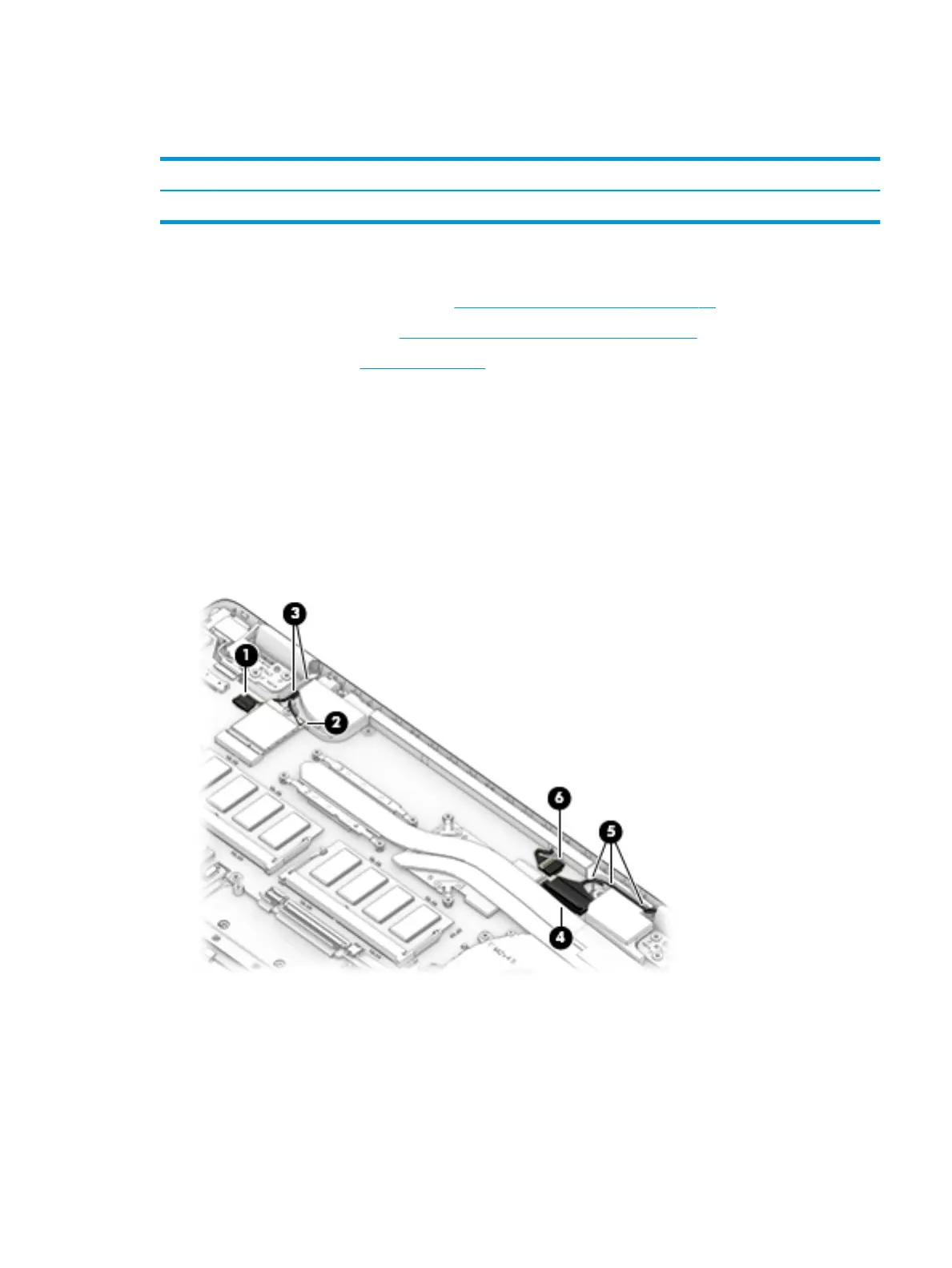

Remove the speakers:
1. Disconnect the speaker cable from the system board (1).
2. Disconnect the antenna cable from the WLAN module (2).
3. Release the cables from the routing over the speaker (3).
4. Disconnect the display cable from the system board (4).
5. Remove the display cable from the routing over the speaker (5).
6. Disconnect the CCD (webcam) cable from the system board (6).
Component replacement procedures 47
