Planning and Implementation for the 5400zl/8200zl Switches
Configuration Examples
Planning and
Implementation for the
5400zl/8200zl Switches
HP ProCurve 5412zl/8212zl Configurations
The 5412zl chassis and the 8212zl chassis share a completely common PoE/
PoE+ implementation. Port counts, power supply wattages, specifications,
and functionality for these two platforms are the same with respect to PoE.
This section is divided into sub-sections:
■ Standard J8712A Configurations
■ Standard J8713A Configurations
■ Mixed J8712A and J8713A Configurations
■ Using the J9306A Power Supply
■ HP ProCurve 5412zl/8212zl Configurations using the Power Supply Shelf
Standard J8712A Configurations
The table in each example configuration contains entries that show the PoE
power available for the PoE modules. There needs to be two power supplies
in the 5412zl/8212zl chassis to power all 12 slots. Only one power supply in
the 5412zl/8212zl is an unsupported configuration.

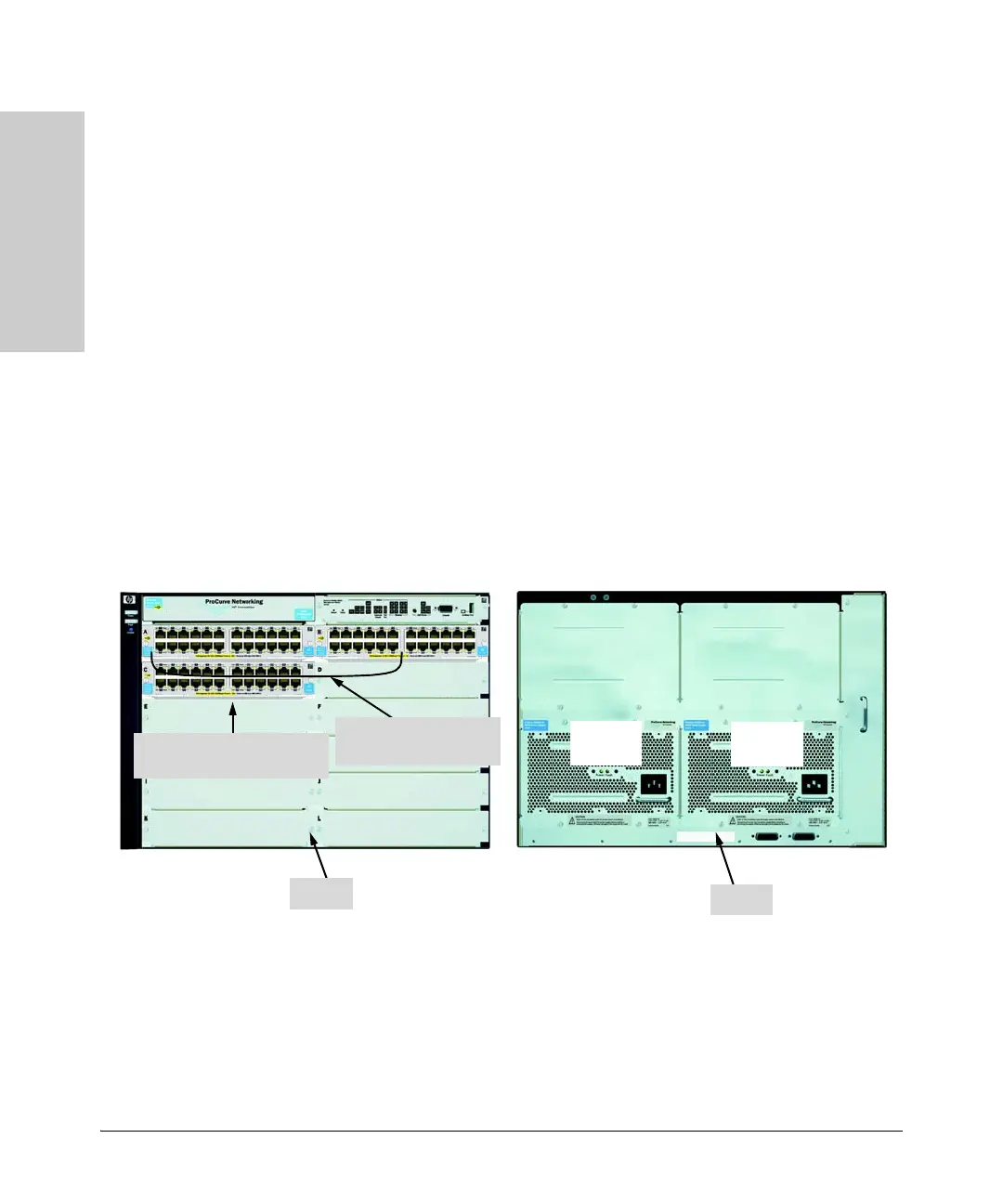

Figure 10-11.Example of a 5412zl with two power supplies, J8712A
In this example (Figure 10-11) there are two power supplies supplying 273
watts each for a maximum of 546 watts.
35 ports can receive up to
15.4 watts of PoE power
The PoE power for all ports on
this module have been disabled
273 watts
for PoE
273 watts
for PoE
Back
Front
To Next Page
