Planning and Implementation for the 2610-PWR Switches
Planning Your PoE Configuration
Planning and
Implementation for the 2610-
PWR Switches
ProCurve 2610-24-PWR Configurations
The tables in the example configurations contain entries that show the PoE
power available when the 2610-24-PWR is used alone. When used with the 600
RPS/EPS or 610 EPS unit, PoE power is available to the PoE ports should the
internal PoE power supply fail. Table entries show the PoE power available
when the 600 RPS/EPS or 610 EPS alone provides PoE power.

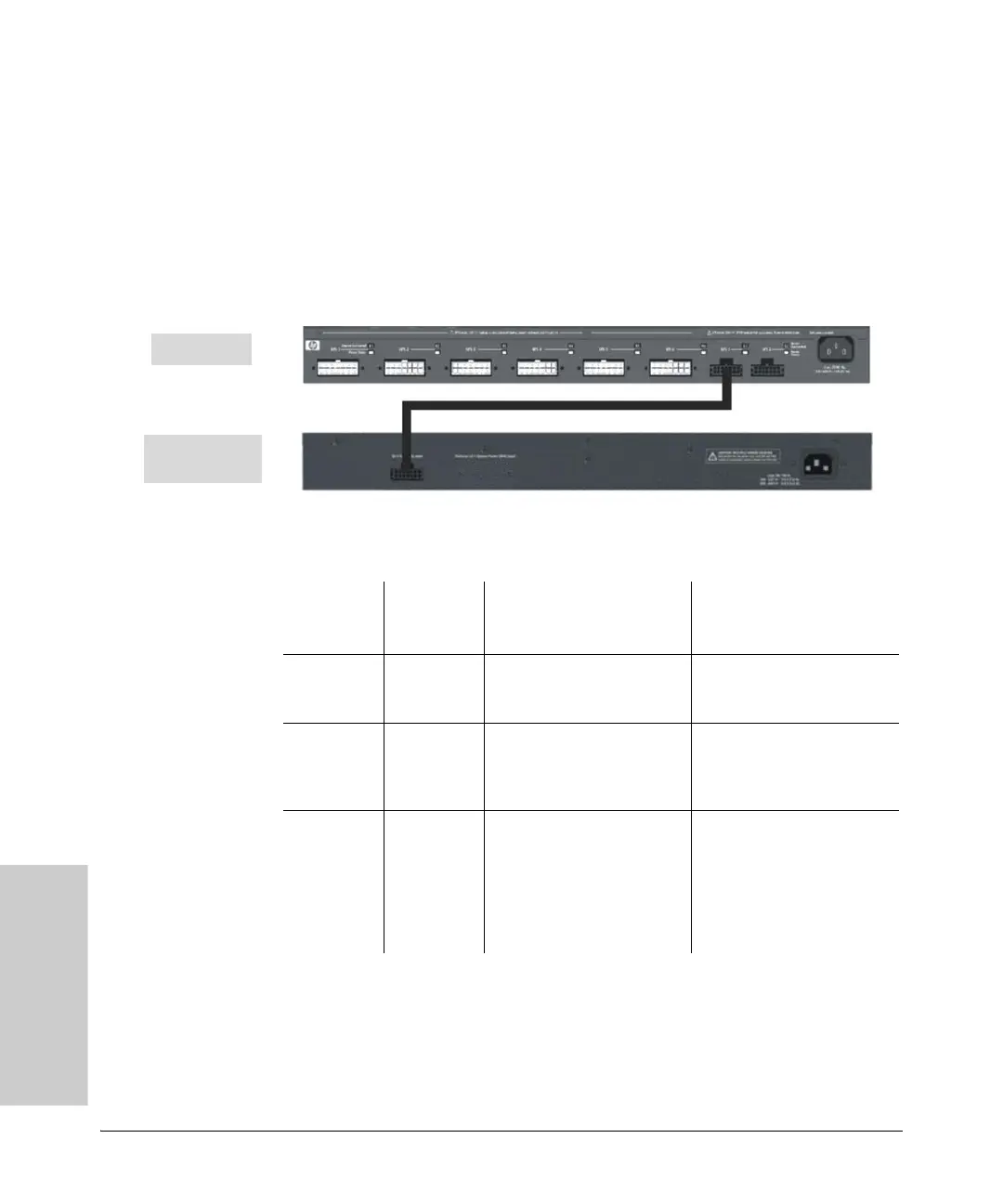

Figure 5-2. Example of an 600 RPS/EPS Powering One 2610-24-PWR Switch
A single 2610-24-PWR switch with a dedicated 600 RPS/EPS unit has fully
redundant PoE power for all 24 ports at 15.4 W per port.
ProCurve Switch
2610-24-PWR
600 RPS/EPS
Source of
Power
Watts
Available
# of Ports Powered and
Average watts/Port
Redundant # of Ports
Powered and Average watts/
Port
Internal PoE
Power
Supply
406 24 @ average 15.4 W each None
Internal plus
External PoE
Power
Supply
406 + 408
1 - 24
24 @ average 15.4 W each 24 @ average 15.4 W each
External PoE
Power
Supply
(Failed
Internal PoE
Power
Supply)
408 24 @ average 15.4 W each None
