Introduction

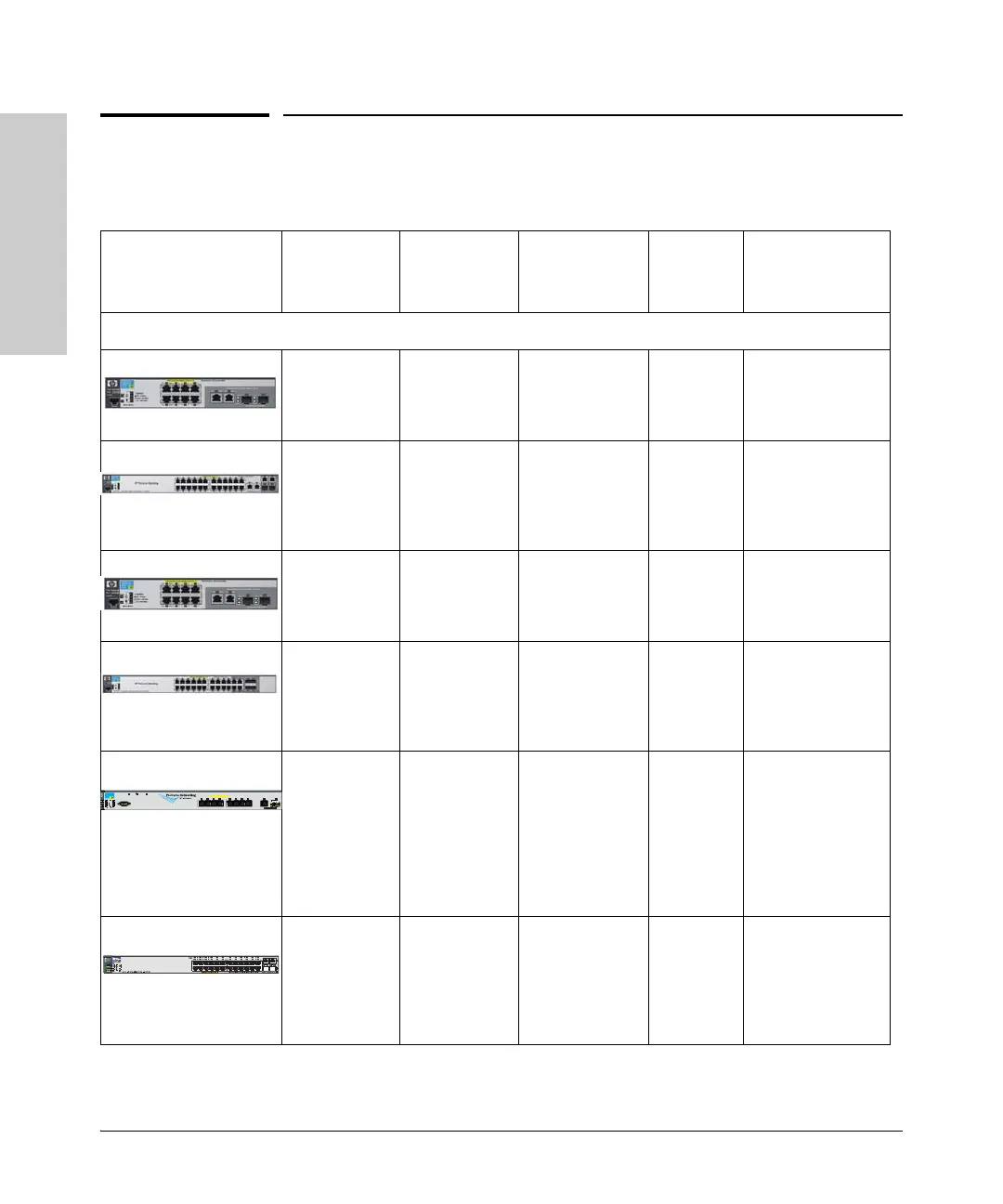

Quick Reference Table
Introduction
Quick Reference Table
Model/
Device
Port Type Port Count/
PoE watts per
port
1
Gig Uplink
Ports
RPS/EPS Maximum Power
Internal and
External
Stackable Switches:
2520-8-PoE
10/100 8
4 @ 15.4 watts
8 @ 7.5 watts
2
2
N/A 67 watts available
to ports 1-8,
provided by the
internal source.
2520-24-PoE
10/100 24
12 @ 15.4 watts
24 @ 7.5 watts
4
2 - RJ45 only
2
2
N/A 195 watts
available to ports
1-8, provided by
the internal
source.
2520G-8-PoE
10/100/1000 8
4 @ 15.4 watts
8 @ 7.5 watts
2
2
N/A 67 watts available
to ports 1-8,
provided by the
internal source.
2520G-24-PoE
10/100/1000 24
12 @ 15.4 watts
24 @ 7.5 watts
4
2
N/A 195 watts
available to ports
1-8, provided by
the internal
source.
2600-8-PWR
10/100 8
8 @ 15.4 watts
1
2
J8168A
J8169A
126 watts
available to ports
1-8, provided by
the internal
source. 408/204
4
watts available,
provided by the
EPS source.
2626-PWR
10/100 24
24 @ 15.4 watts
2
2
J8168A
J8169A
Redundant 408/
204
4
watts
available to ports
1-24. Only if the
internal power
supply fails.
PoE
wer
ult
Dual-Personality Port:
10/100/1000-T (T) or Mini-GBIC (M)
(Port 9T is IEEE Auto MDI/MDIX)
Status
Reset
Clear
Console
PoE-Integrated 10/100-TX Ports (1 - 8)  (Ports are HP Auto-MDIX)
ProCurve
Switch 2600-PWR
J8762A
*
Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps
Link
Mode
LED
Mode
Spd
Act
FDx
Test
EPS
Fan
2
3
4
Link
Mode
1
Link
Mode
5
6
7
8
9T
Link
Mode
PoE
*
9M
!
Use only one (T or M) for Port 9
RPS
