PIM-DM (Dense Mode) on the 5300xl Switches
Configuring PIM-DM on the Series 5300xl Switches
Dashed lines indicate configuration
settings affecting multicast routing.
Multinetting and IGMP
enabled in VLAN 25.
Multicast Routing Configuration
for Global Level..
Enables IP routing;
required for multicast
routing.
Indicates the source-IP-address
for multicast packets forwarded on
this VLAN.
Multicast Routing
Configuration for VLAN 25.
Multicast Routing
Configurations for VLANs
27 and 29.

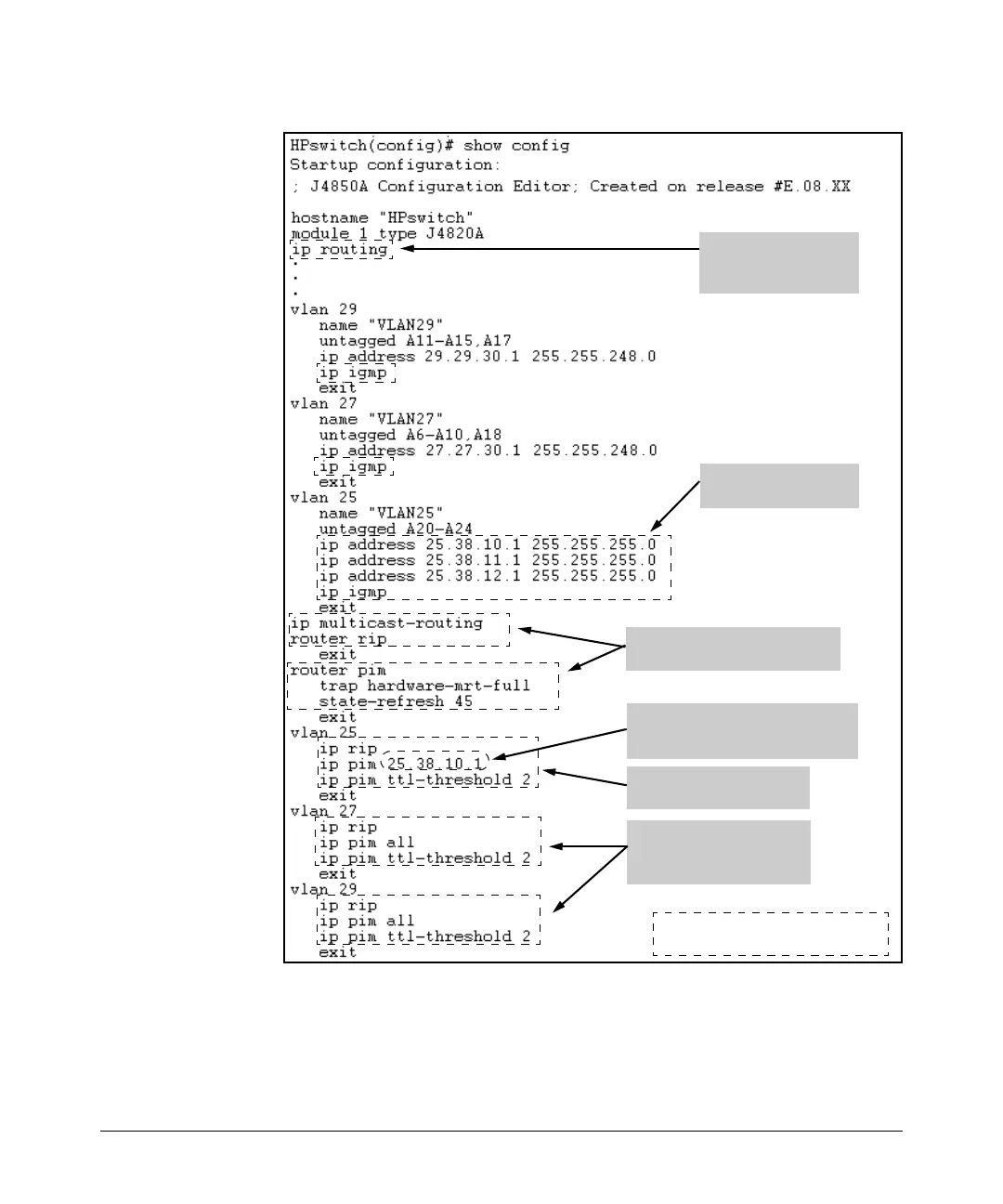

Figure 5-6. The Configuration Supporting Multicast Routing on the 5300XL #1
Routing Switch Shown in Figure 5-4 (Page 5-20)
5-21
To Next Page
