Component identification 11

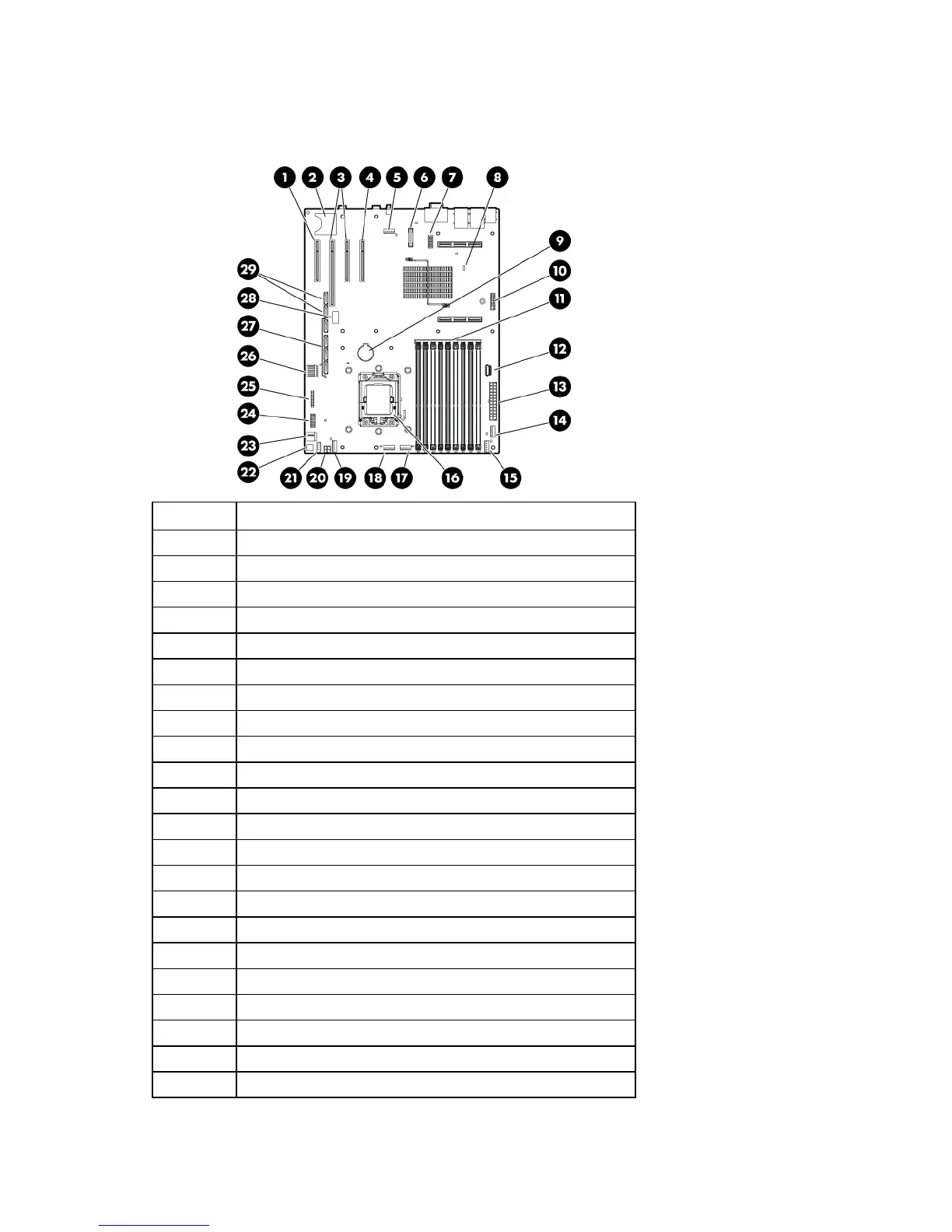

System board components
For this server, some system board slots and connectors are reserved.
Item Description
1 Reserved
2 SD card connector
3 PCIe riser board connectors
4 Reserved
5 Fan 6 connector (reserved)
6 Dedicated iLO 2 module connector (optional)
7 System maintenance switch
8 NMI jumper
9 System battery
10 TPM connector
11 DIMM slots 1-9
12 Reserved
13 System power connector
14 Fan 1 connector
15 Fan 2 connector
16 Processor socket
17 Fan 3 connector
18 Fan 4 connector
19 Fan 5 connector*
20 Power connector
21 Front USB connector
22 Hard drive backplane connector
