Setup 24
Installing the server into the rack
To install the server into a rack with square, round, or threaded holes, refer to the instructions that ship
with the rack hardware kit.
If you are installing the server into a telco rack, order the appropriate option kit at the RackSolutions.com
website (http://www.racksolutions.com/hp
). Follow the server-specific instructions on the website to install
the rack brackets.
Use the following information when connecting peripheral cables and power cords to the server.
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do not plug
telephone or telecommunications connectors into RJ-45 connectors.
For this server model, PCI expansion slots 1-3 and 6 are reserved.

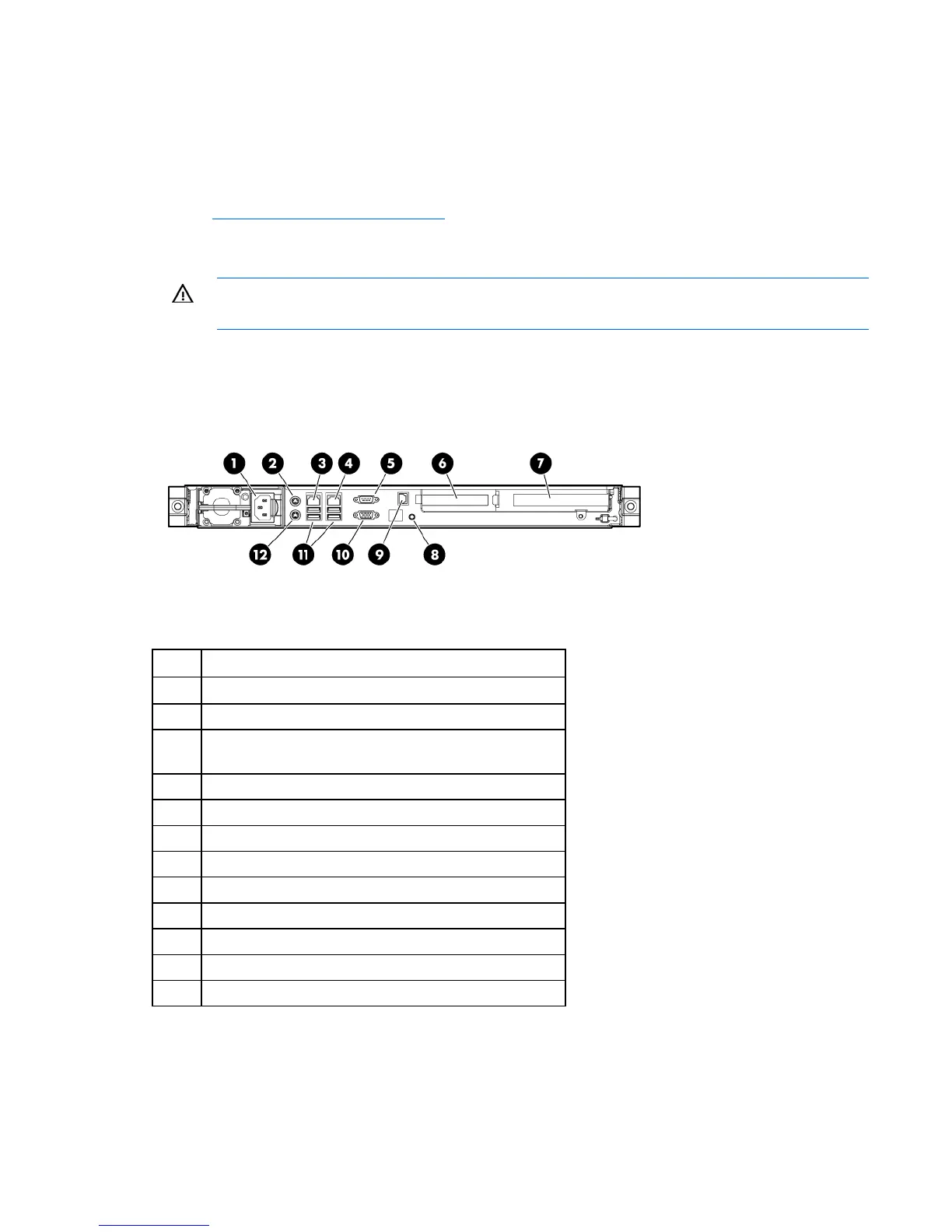

Item Description
1 Power cord connector
2 Mouse connector
3 10/100/1000 NIC 1 connector/shared iLO 2
management port
4 10/100/1000 NIC 2 connector
5 Serial connector
6 Slot 5 PCIe2 x16 (4, 2, 1)
7 Slot 4 PCIe2 x16 (16, 8, 4, 1)
8 UID button/LED
9 Dedicated iLO 2 management port
10 Video connector
11 USB connectors (2)
12 Keyboard connector
