Removal and Replacement Procedures
2-42 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 6/10/05 4:28 PM
Processors and Heatsinks

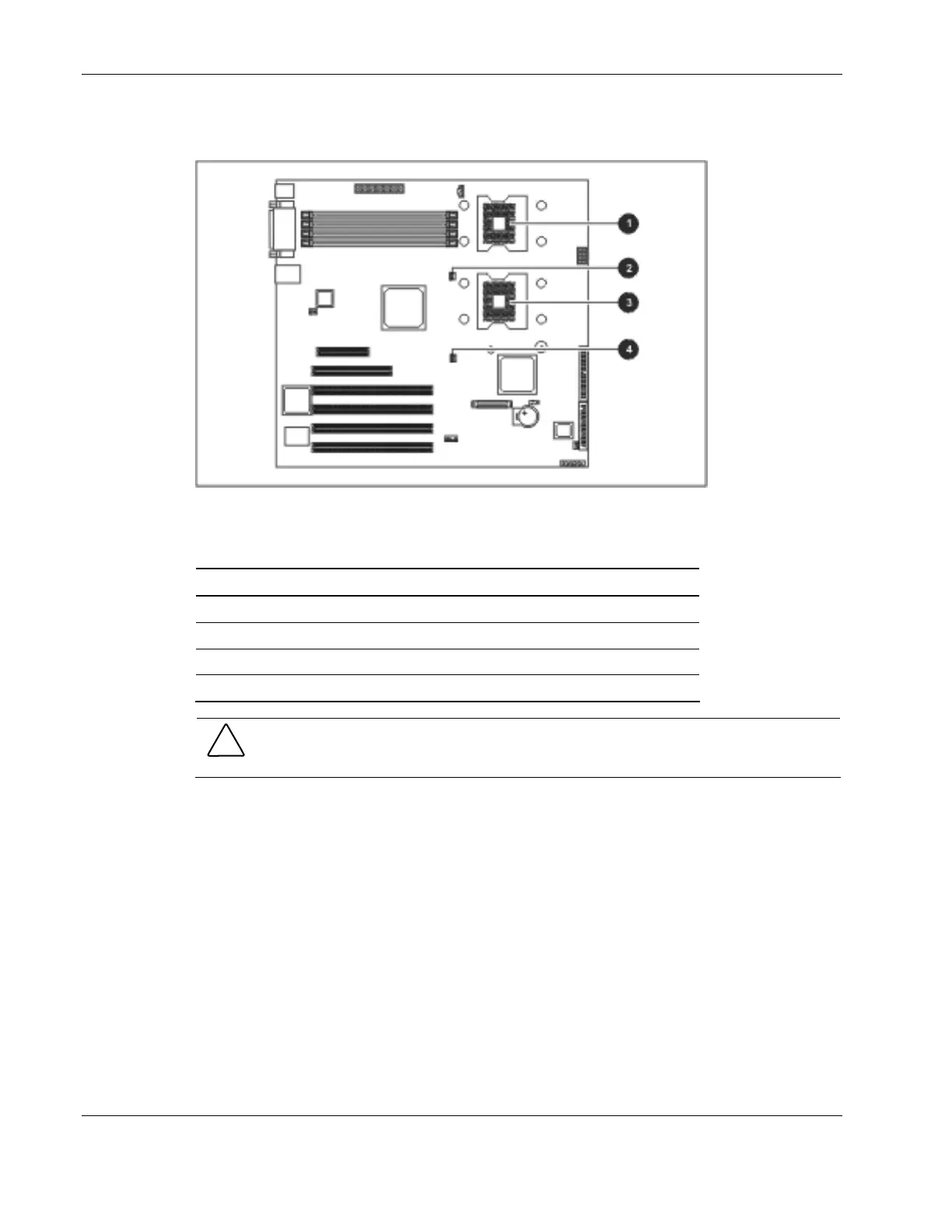

Figure 2-41: Processor locations
Table 2-4: Processor Locations
Item Description
1 Processor 1 socket
2 Processor 1 fan connector
3 Processor 2 socket
4 Processor 2 fan connector
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Be sure that
you are properly grounded (earthed) before beginning any installation procedure. Refer to
“Electrostatic Discharge Information” earlier in this chapter.
