Connectors and Components
This section contains illustrations and tables identifying connector locations and components
on the server rear panel and system board.
Rear Panel Components

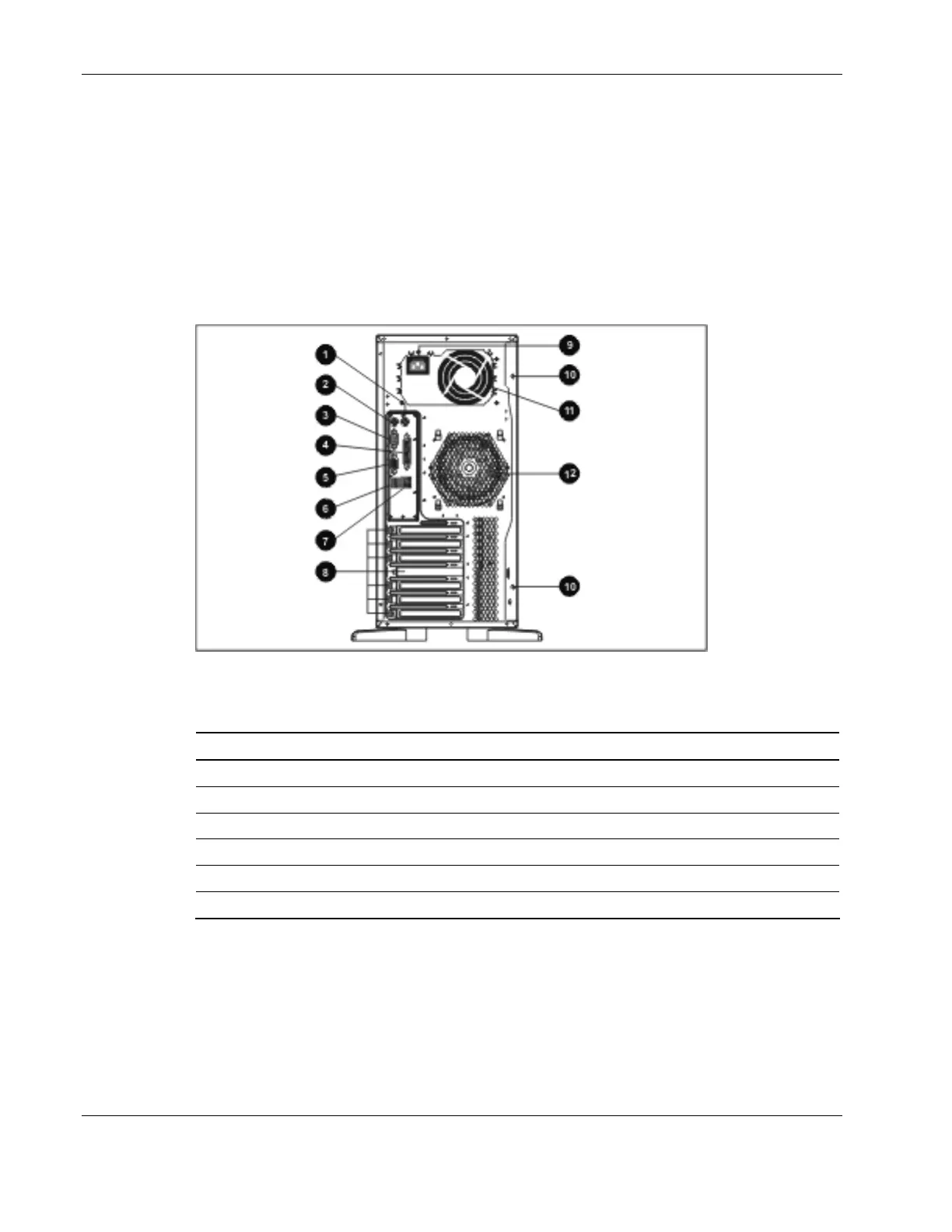

Figure 4-1 and Table 4-1 show and describe the locations of the components on the rear panel
of the server.
Figure 4-1: Rear panel components
Table 4-1: Rear Panel Components
Item Description Item Description
1 PS/2 mouse port (green) 7 10/100/1000 LAN port (RJ-45)
2 PS/2 keyboard port (purple) 8 I/O slot covers
3 Serial port (teal) 9 Power connector
4 Parallel port (burgundy) 10 Thumbscrews for detachable access panel
5 Monitor port (blue) 11 Power supply unit fan
6 USB 2.0 ports (black) 12 System fan
