HP zbook 15 G3 User Manual

2. Verify that lights are solid.
3. If shutdown is reproducible, test essential hardware conguration:
a. If no issue with hardware conguration, reinstall one non essential component at
a time to determine faulty hardware.
b. If issue persists, replace essential hardware with a conrmed working part, one at
a time. If no boot, replace system board.
Tips and tricks Intermittent issue is dicult to reproduce and troubleshoot. It is important to record details
on shutdown frequencies, system conguration (3D video application) and operating
conditions.

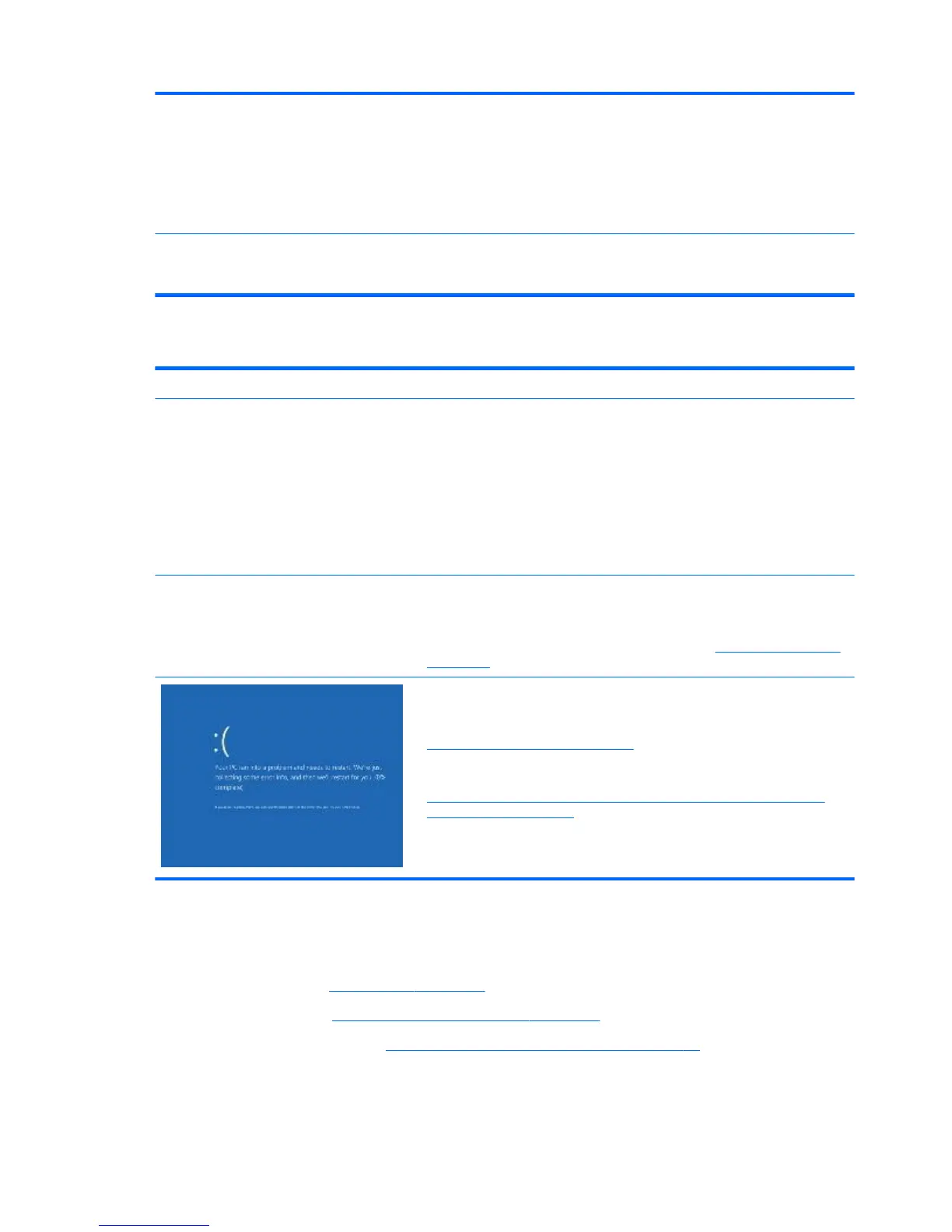

Blue screen
Symptoms
●
Have power, light activity, fan spinning
●
HP Logo displays briey
●
Fails to boot into Windows operating
system, displays blue screen, and then
crashes, restarts, or stops responding
Possible causes
Recent changes: conict of instructions from multiple programs or just added
hardware.
Incompatible hardware and driver.
Poor connection (hard drive, memory).
Hardware malfunctioning due to overheating (GPU, processor).
Defective hardware (memory, hard drive).
Important Notes & Resources Troubleshooting steps
There are many dierent ways to troubleshoot a blue screen error. Therefore, you
need to identify working conguration (Windows 7/8/10) and specic symptoms
of the failure in order to narrow down the issue. Refer to Blue screen (BSOD) error
on page 130.
Recommended resources
Microsoft knowledge base:
Resolving Blue Screen errors in Windows
HP Troubleshooting Error Messages on a blue screen:
HP Notebook PCs - Troubleshooting Error Messages on a Blue Screen that may
Occur During Startup or Boot
Overview of General Troubleshooting Steps for a blue screen error
1. Note the blue screen error message and what activity was performed at the time.
2. Perform a hard reset (8. Hard reset on page 89) after disconnecting all external peripherals.
3. Reset BIOS to default (9. Soft reset (Default Settings) on page 90) to prevent booting to another device.
4. Run HP Hardware Diagnostics (6. HP Hardware Diagnostics and Tools on page 82) to isolate major faulty
hardware issues.
106 Chapter 7 Troubleshooting guide

HP zbook 15 G3 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Black
Cable lock slot	Yes
Country of origin	China
Bus type	DMI3
Stepping	R0
Tjunction	100 °C
Processor cache	6 MB
Processor cores	4
Processor model	i7-6700HQ
System bus rate	8 GT/s
Processor family	Intel® Core™ i7
Processor series	Intel Core i7-6700 Mobile series
Processor socket	BGA 1440
Processor threads	8
Processor codename	Skylake
Processor frequency	2.6 GHz
Processor cache type	Smart Cache
Configurable TDP-down	35 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	45 W
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1866, 2133, 1600 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	64 GB
Motherboard chipset	Intel CM236
Pointing device	Touchpad
Recovery operating system	Windows 10 Pro
Operating system installed	Windows 7 Professional
Memory slots	4x SO-DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express
Storage media	SSD
Total storage capacity	256 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Display diagonal	15.6 \
Native aspect ratio	16:9
On-board graphics card ID	0x191B
Discrete graphics card model	NVIDIA® Quadro® M2000M
On-board graphics card model	Intel® HD Graphics 530
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
Battery capacity	90 Wh
Number of battery cells	9
AC adapter power	150 W
Number of built-in speakers	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDMI version	1.4
USB 2.0 ports quantity	0
Sustainability certificates	ENERGY STAR
Processor code	SR2FQ
Processor ARK ID	88967
Processor package size	42 x 28 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00

Weight and Dimensions

Depth	264 mm
Width	386 mm
Height	26 mm
Weight	2590 g
