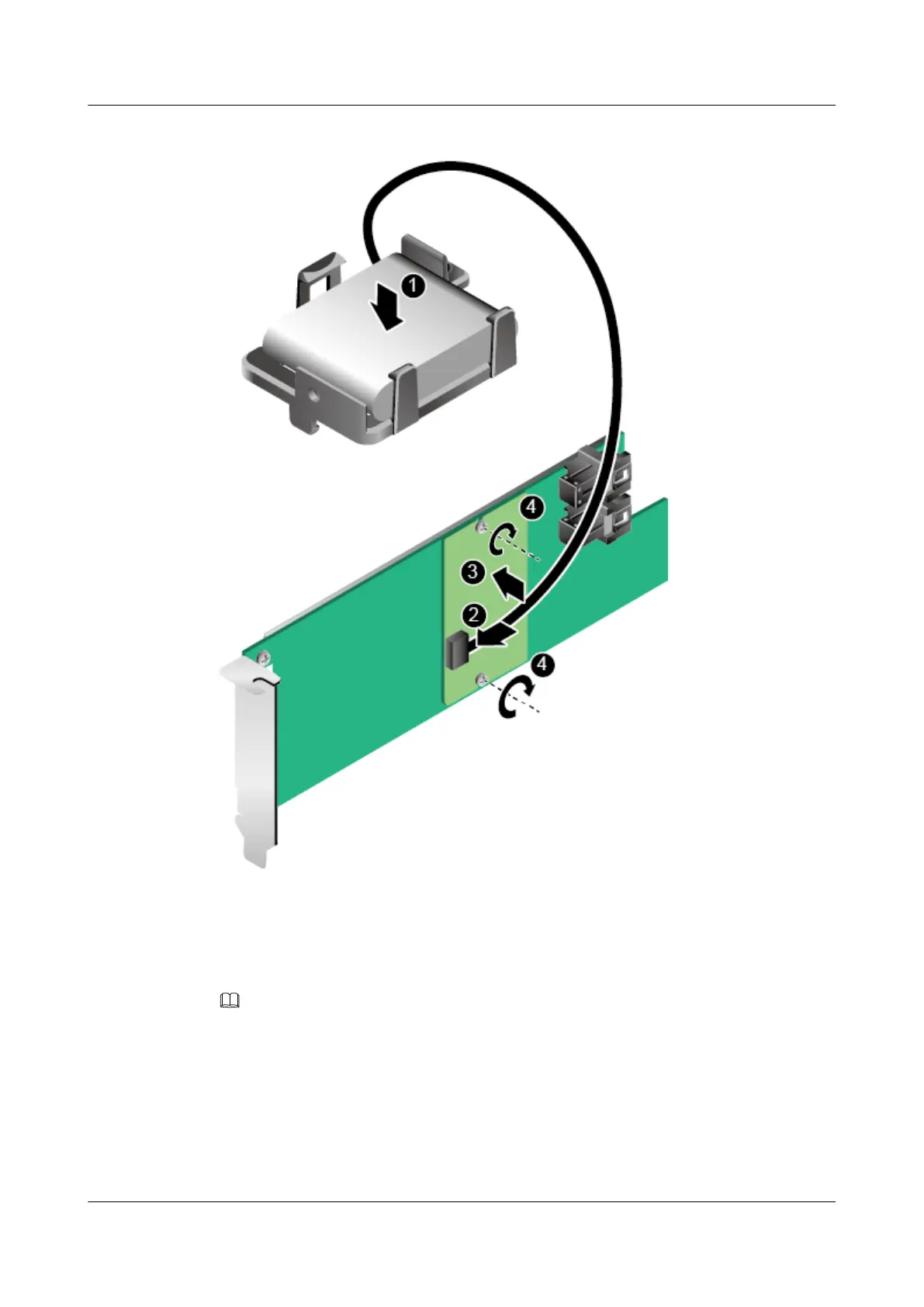

Figure 7-67 Installing the supercapacitor (LSI SAS3108)
1. Insert the TFM vertically into the RAID controller card. See step (3) in Figure 7-67.
2. Screw the TFM. See step (4) in Figure 7-67.
3. Connect the cable between the supercapacitor and the TFM. See step (2) in Figure 7-67.
NOTE
When installing the TFM, ensure that the side with pins on the connector faces the TFM to prevent
damage of the device due to reverse insertion of the connector.
If the chip model of the RAID controller card connected to the supercapacitor to be installed
is PM8060:
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 183
