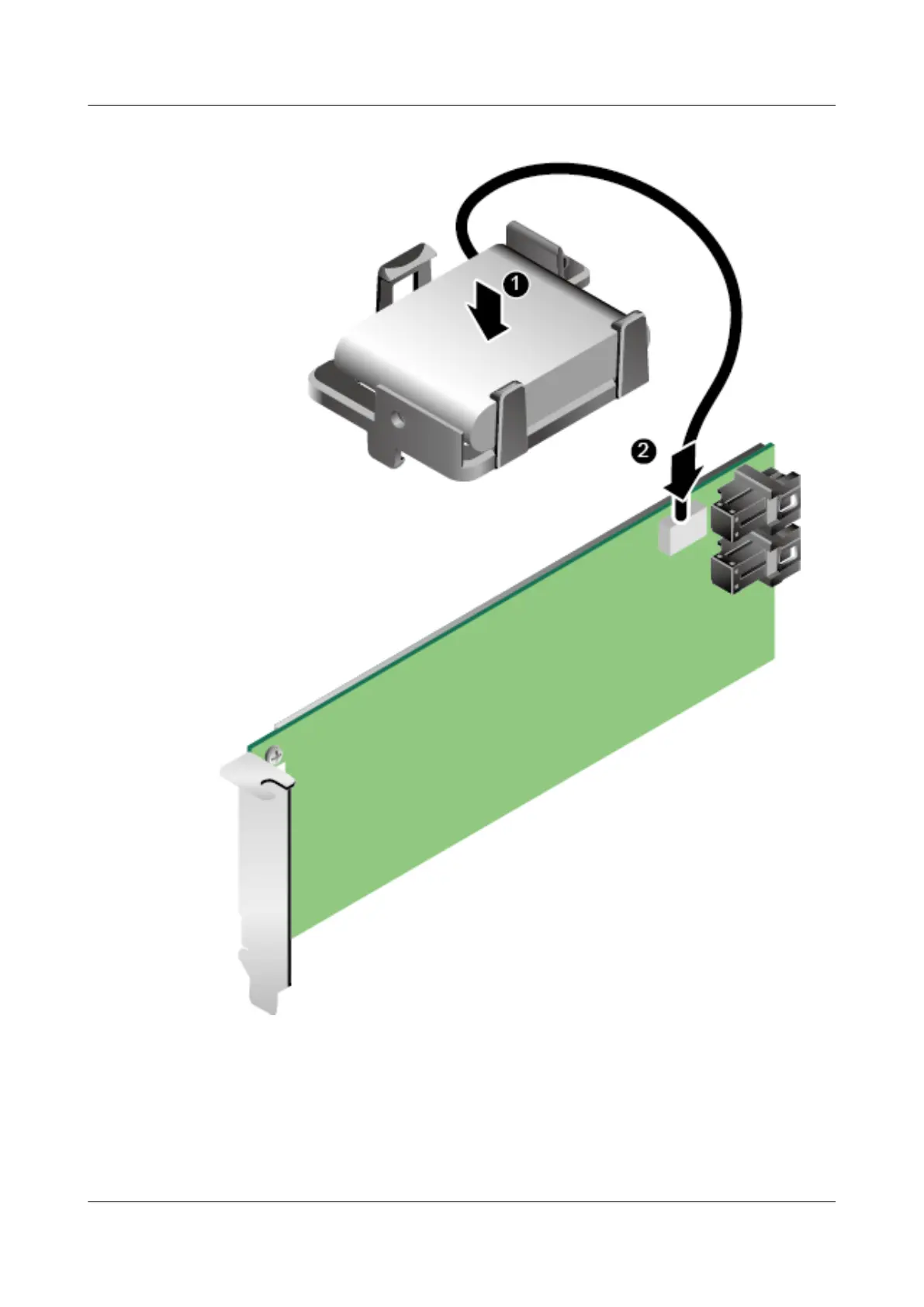

Figure 7-68 Installing the supercapacitor (PM8060)
1. Connect the cable between the supercapacitor and the RAID controller card. See step (2)
in Figure 7-68.
Step 6 Install the riser card tray above the RAID controller card. For details, see 7.19 Removing the
Riser Card.
5288 V3 Server
User Guide
7 Replacing Parts
Issue 26 (2018-11-19) Copyright © Huawei Technologies Co., Ltd. 184
