Huawei EchoLife HG850 User Manual

B SIP Service Configuration
EchoLife HG850
Service Manual
B-4
Huawei Technologies Proprietary
Issue 02 (2007-05-30)

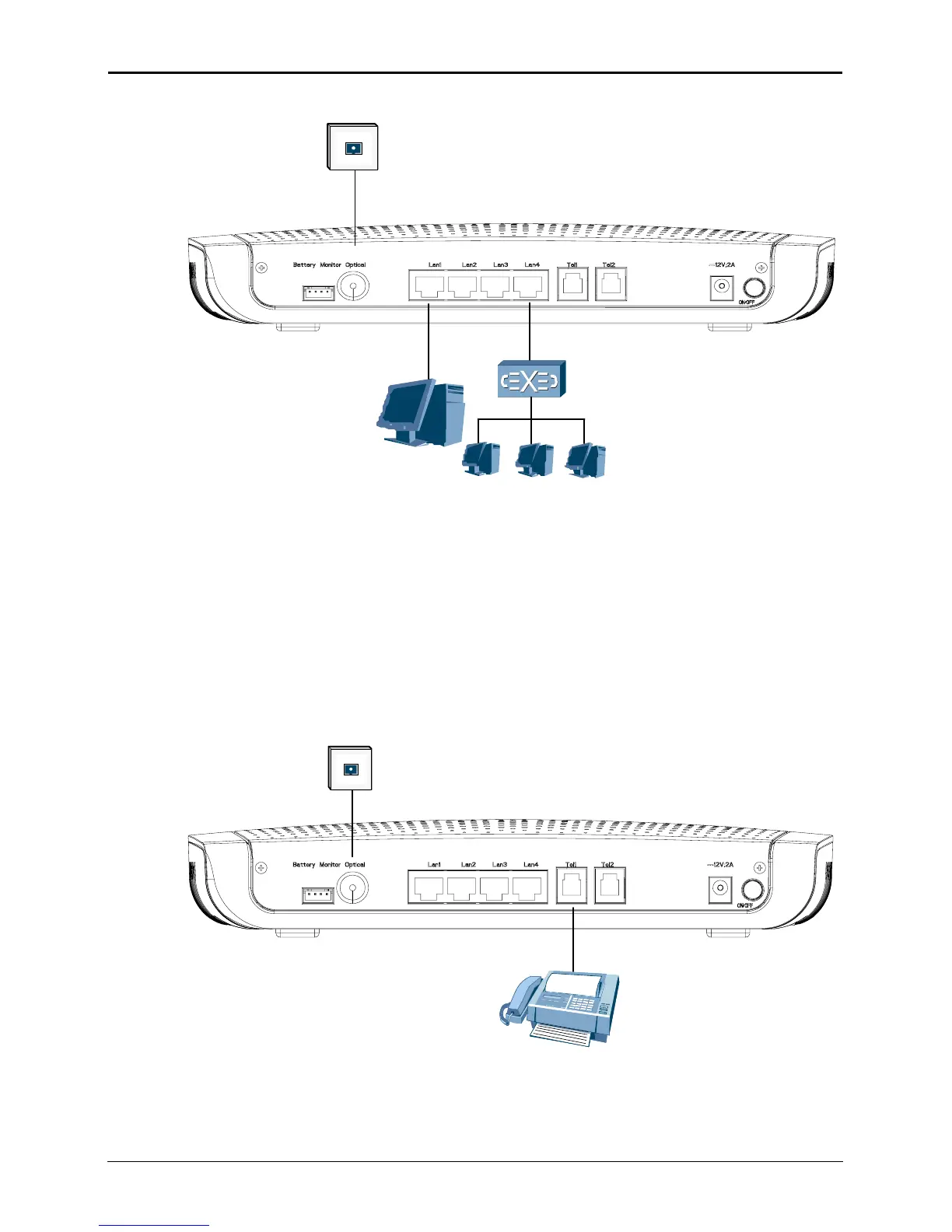

Figure B-1 Connection for the online service
(1)
(2)
(3)
(4)
(3)
(1) Optical interface on the wall (2) HG850
(3) PC (4) Modem
B.2.2 Fax Service
By default, the HG850 supports the fax service.
Figure B-2 shows the connection for the fax service.
Figure B-2 Connection for the fax service
(3)
(1)
(2)
(1) Optical interface on the wall (2) HG850 (3) Fax machine

Huawei EchoLife HG850 Specifications

General

Brand	Huawei
Model	EchoLife HG850
Category	Touch terminals
Language	English
