6.5 Resistance test - stop switch
1
Dismantle the stop switch as outlined in
“6.3 Dismantling the stop switch”.
2
Clean the contact areas.
3
Test the resistance by connecting a multimeter to
the stop switch. See figure 4. The resistance should
be as follows:
1 = 0.1 Ω
STOP = 1000 Ω
6.3 Dismantling the stop switch
1
Carefully remove the stop switch using a flat
screwdriver or similar tool. See figure 3 or figure 4
for R-handle.
2
Disconnect the cables.
Cleaning and inspection
• Clean and check the power switch carefully.
Replace parts that are broken or show signs of
other defects. Always use original spare parts.

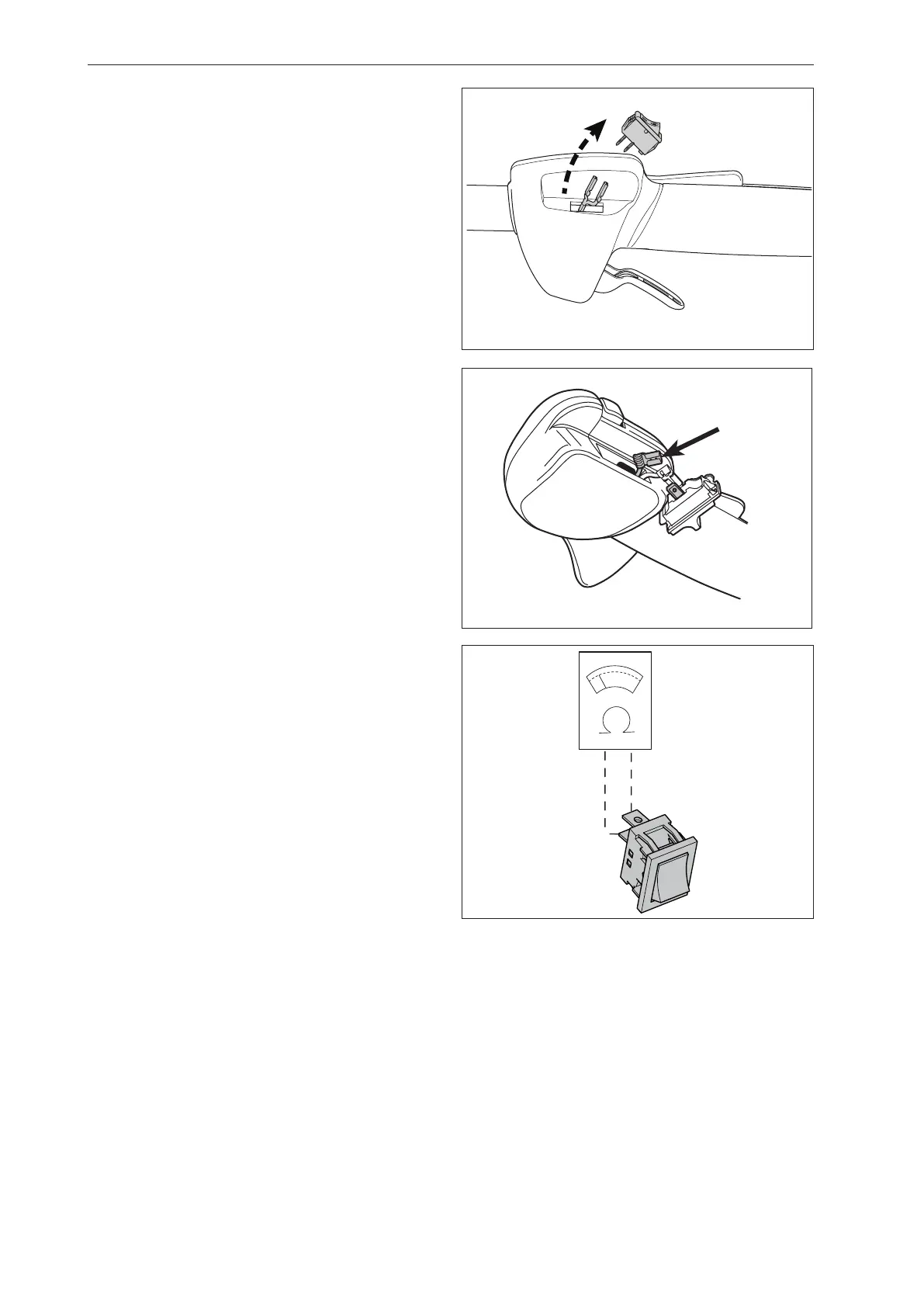

Fig 3
Fig 5
6.4 Assembling the stop switch
1
Connect the cables. See figure 3 or figure 4 for
R-handle.
2
Fit the stop switch.
Fig 4
