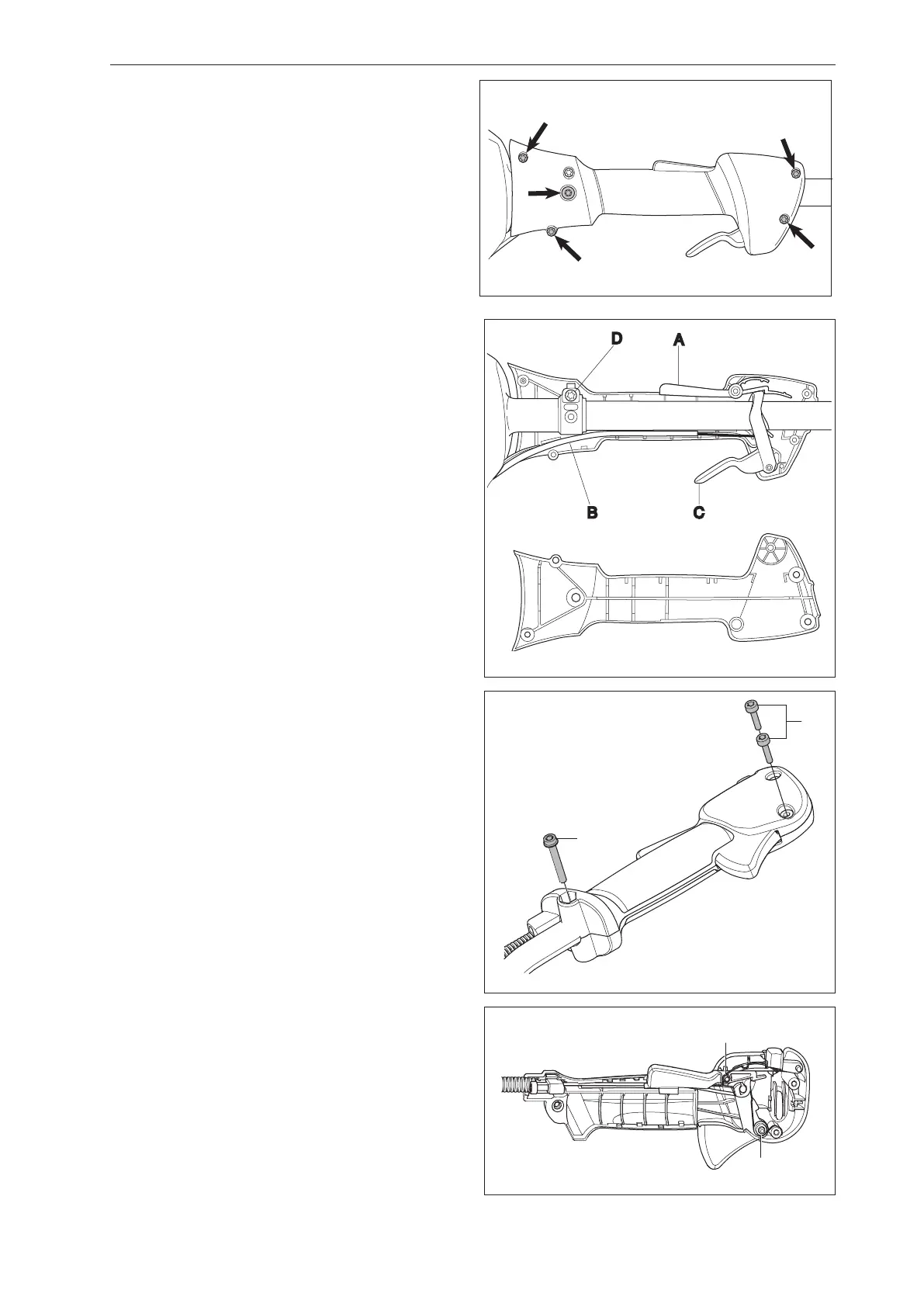

6.6 Dismantling the throttle
1
Remove the screw holding the throttle handle
against the shaft attachment, and the 4 screws
holding the handle halves together.
Lift off the right hand handle half and carefully note
how the different parts are fitted.
2
Lift off the catch (A) for unintentional full throttle
and replace if needed.
Lift up the throttle cable (B) from the channel
and unhook it from the throttle (C) and replace if
needed.
3
To continue dismantling to access for instance the
short-circuit switch or to replace the throttle (C), the
screws (D) are loosened after which the shaft can
be removed from the throttle handle half.
Assemble the throttle handle in the reverse order
as set out for dismantling.
A
Fig 8
Fig 9
2
Loosen the screws (B) holding the handle together.
3
Note how the recoil spring (C) and the throttle lock
(D) is mounted.
6.7 Dismantling the throttle, R-handle
1
Remove the screw holding the shaft, (A).
