The angle gear has two purposes:
The first is to gear down the engine’s high speed to better suit the lower speed a saw blade or trimmer
requires to work efficiently.
Secondly, the angle gear contributes towards the operator’s working stance so that it is comfortable and at
the same time efficient. In other words, the power from the engine via the drive axle should be angled so
that the cutting tool works parallel with the ground.

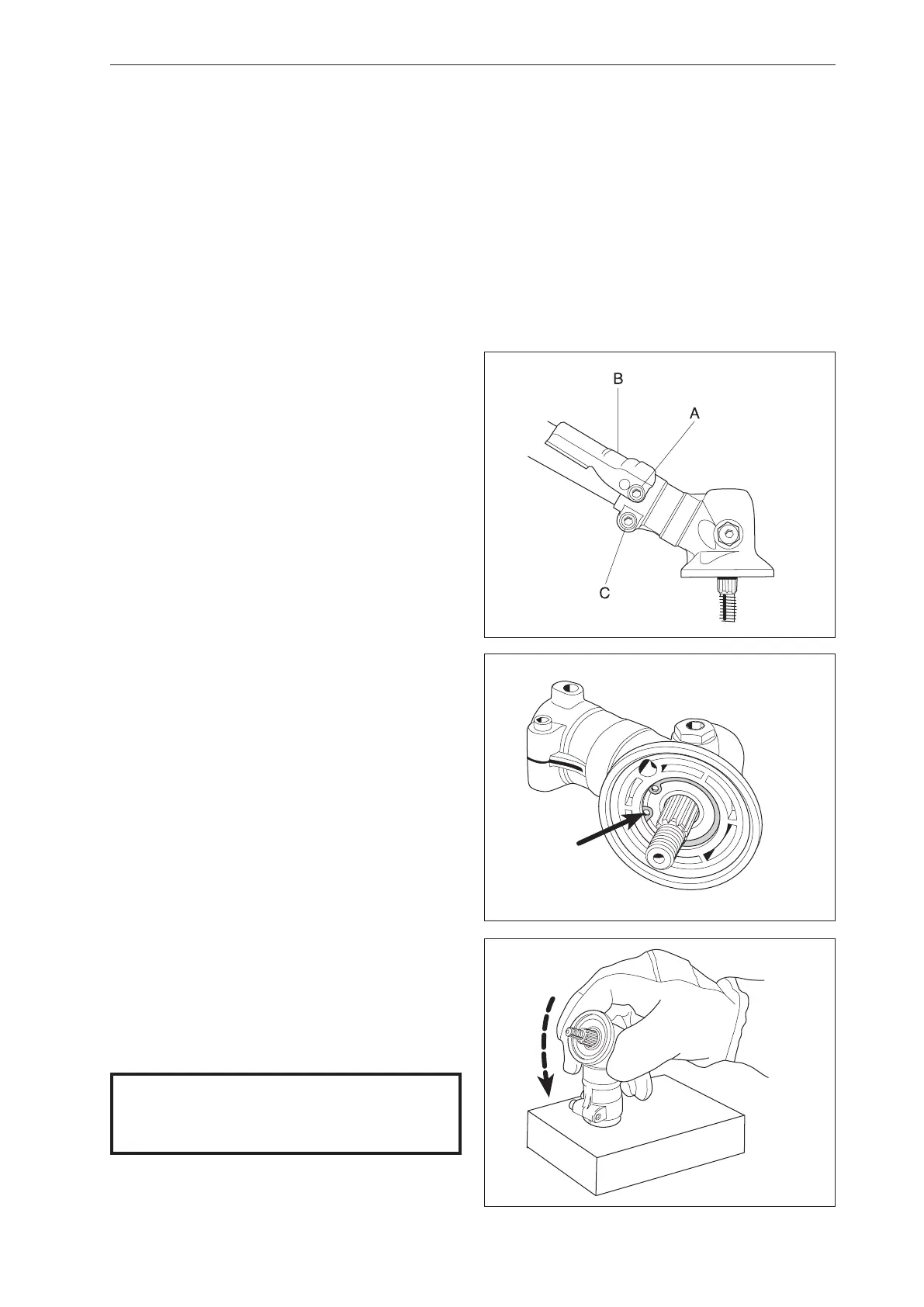

7.24 Dismantling the bevel gear
1
Remove the cutting equipment and guard.
Remove the screw (A) and lift off the plate (B).
Loosen the screw (C) holding the angle gear on
the shaft and remove the angle gear.
Fig 81
2
Remove the support washers and the dust
protection disc.
Remove the circlips holding the bearings on the
output axle (illustrated) and on the input axle using
the circlip pliers.
3
Heat the entire angle gear using a hot air gun to
approx. 110°C.
Knock the gear against a wooden block so that the
input axle and the bearing fall out.
Now lift out the output axle.
NOTE
Wear protective gloves.
Bevel gear
Fig 82
Fig 83
Bevel gear
