12 SERVICE WORK ON THE CHASSIS
56

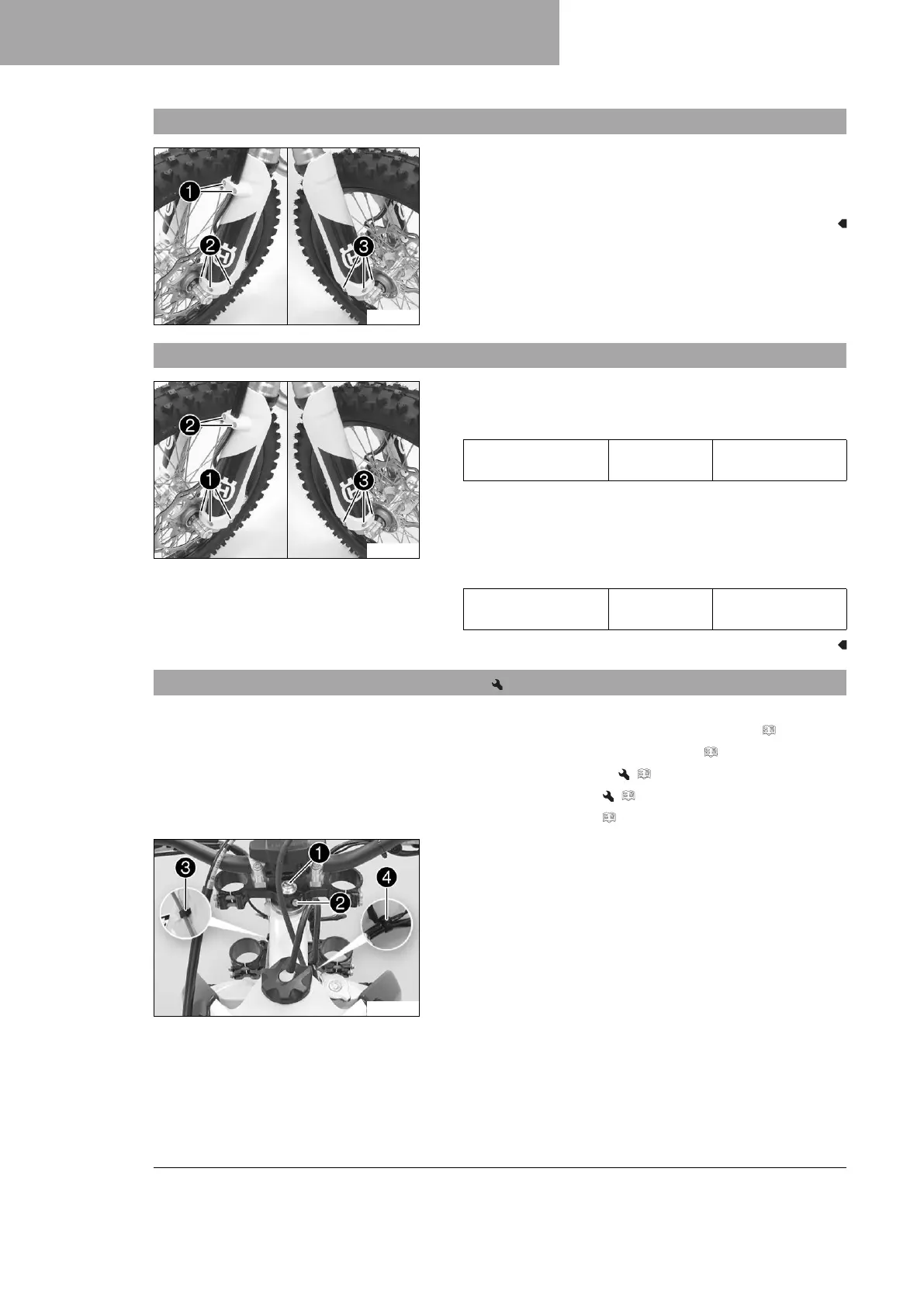

12.7 Removing the fork protector
V00903-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the left fork protector.
–
Remove screws
3
and take off the right fork protector.
12.8 Installing the fork protector
V00903-11
– Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
12.9 Removing the lower triple clamp
Preparatory work
– Remove the headlight mask with the headlight. ( p. 107)
– Raise the motorcycle with a lift stand. ( p. 53)
– Remove the front wheel. ( p. 97)
– Remove the fork legs. ( p. 54)
– Remove front fender. ( p. 61)
V00988-10
Main work
–
Remove screw
1
.
–
Remove screw
2
.
–
Open cable holder
3
in front of the left radiator and detach
the clutch line.
–
Open cable holder
4
in front of the right radiator and detach
the wiring harness.
– Remove the upper triple clamp with the handlebar and set
aside.
