12 SERVICE WORK ON THE CHASSIS
72
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid skin, eye and clothing contact with fuel.
– Immediately consult a doctor if you swallow fuel.
– Do not inhale fuel vapors.
– In case of skin contact, rinse the affected area with plenty of water.
– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
– Change your clothing in case of fuel spills on them.
– Keep fuels correctly in a suitable canister, and out of the reach of children.
Preparatory work
– Remove the air filter box cover. ( p. 66)
– Remove the seat. ( p. 65)
– Remove the right side cover. ( p. 71)
V00980-10
Main work
–

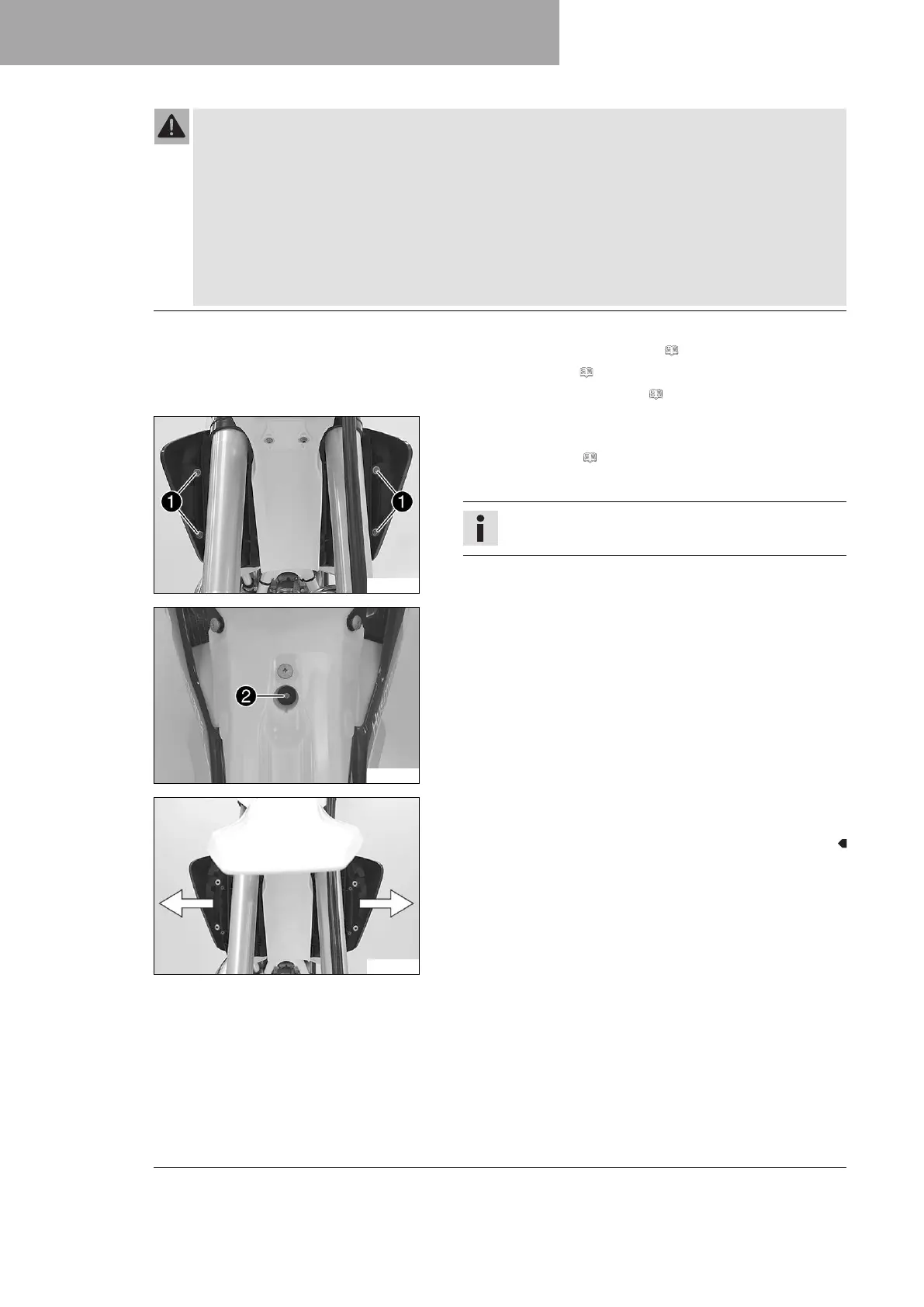

Turn handle
1
of the fuel tap to the OFF position.
(Figure H02505-10 p. 20)
– Pull off the fuel hose.
Info
Remaining fuel may flow out of the fuel hose.
–
Remove screws
1
with the collar bushings.
E00405-10
–
Remove screw
2
with the rubber bushing.
– Remove the hose from the fuel tank breather.
V00928-10
– Pull both spoilers off laterally from the radiator bracket and lift
off the fuel tank.
