13 BRAKE SYSTEM
89
V00999-11

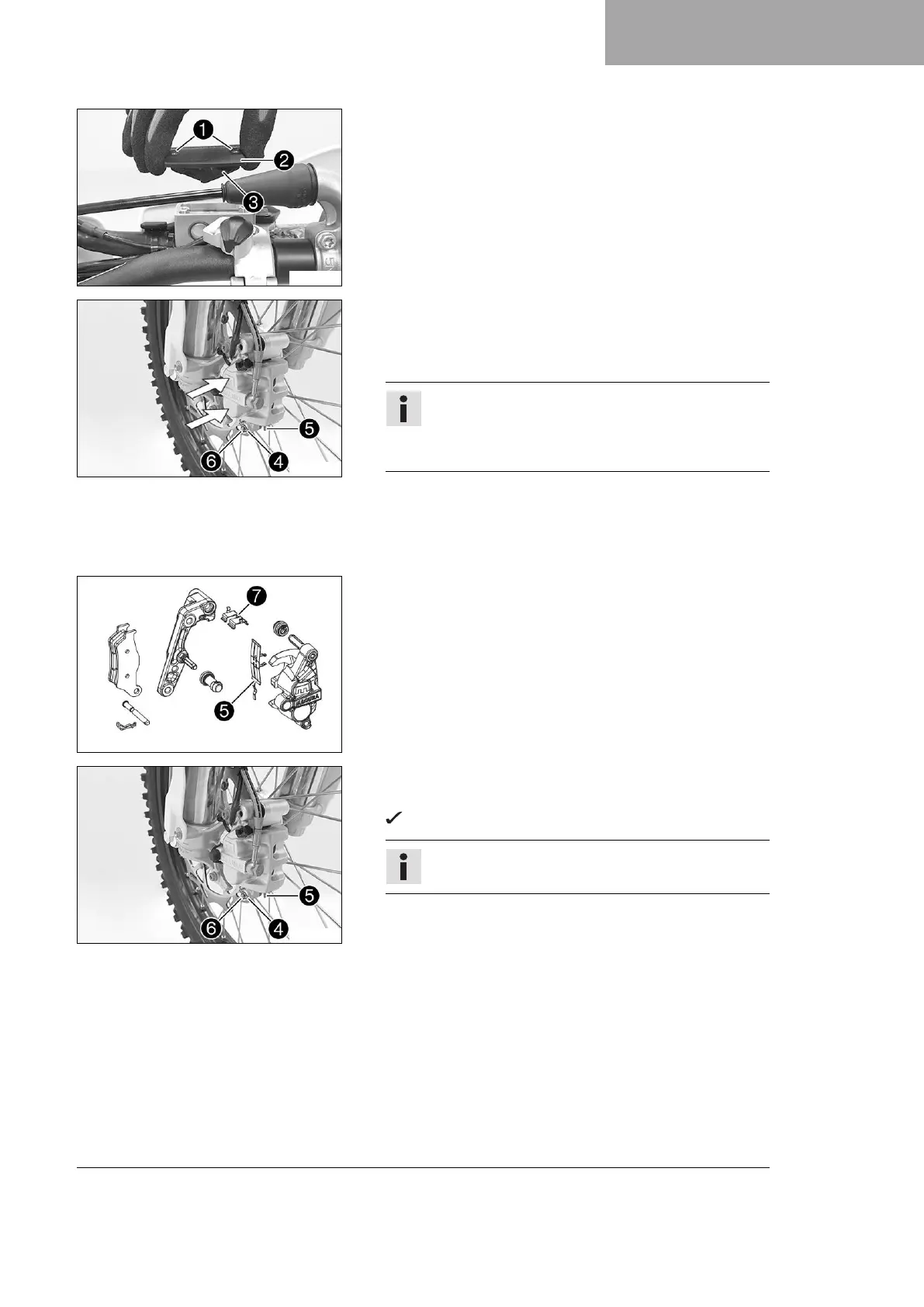

– Move the brake fluid reservoir mounted on the handlebar to a
horizontal position.
–
Remove screws
1
.
–
Remove cover
2
with membrane
3
.
K00944-10
– Manually press the brake caliper toward the brake disc to
push back the brake pistons. Ensure that brake fluid does
not flow out of the brake fluid reservoir, if necessary extract
excess.
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake pis-
tons.
–
Remove cotter pin
4
.
–
Push leaf spring
5
upwards and remove pin
6
.
– Remove brake linings.
– Clean the brake caliper and brake caliper support.
H02377-10
–
Check that leaf spring
5
in the brake caliper and sliding
plate
7
in the brake caliper support are seated correctly.
K00944-11
– Insert the new brake linings.
–
Mount pin
6
.
Leaf spring
5
engages in the groove on the pin.
Info
Always change the brake linings in pairs.
–
Mount cotter pins
4
.
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
