134 ArcGlide THC Instruction Manual 806450
3–Operation

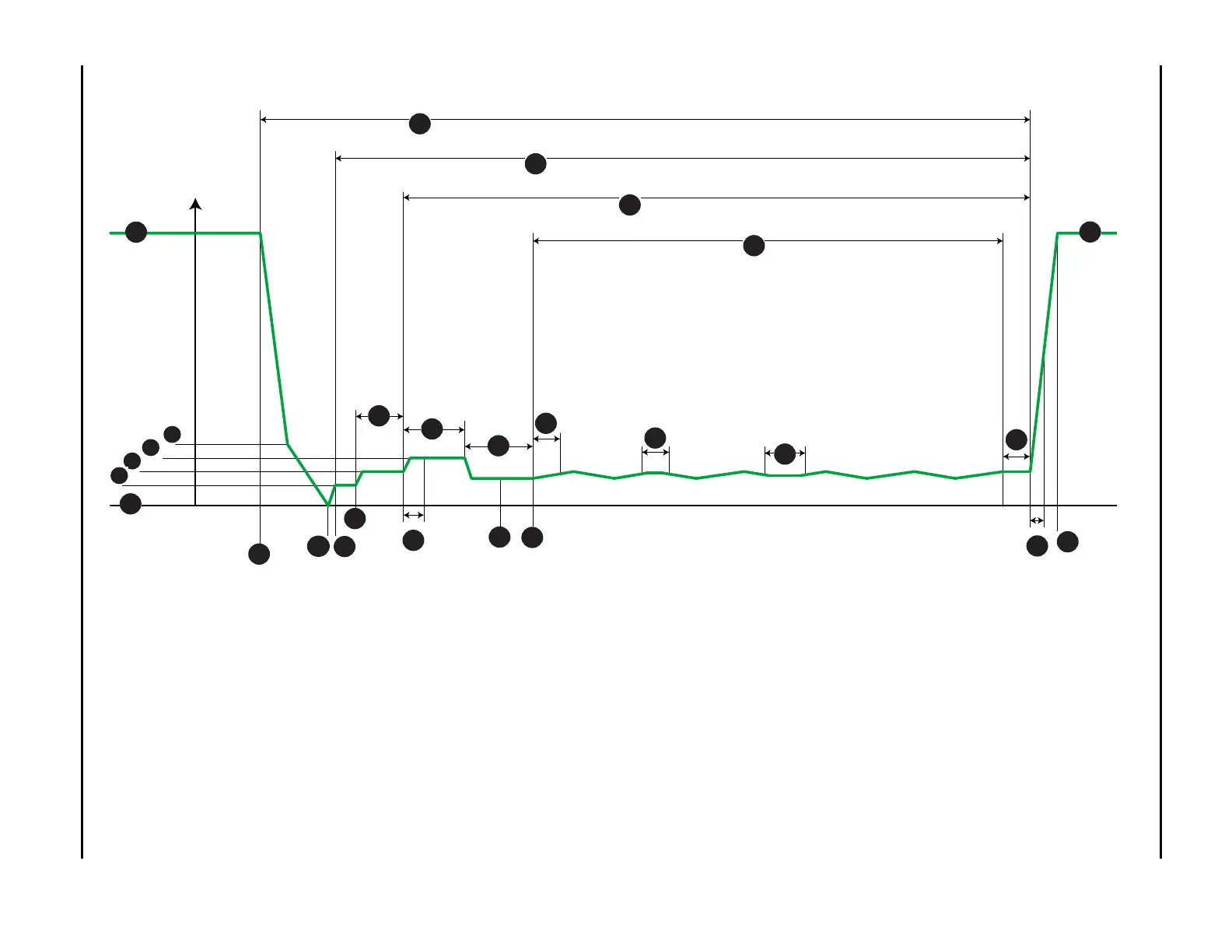

Figure 35
22
1
2
3
4
5
6
7
8
10
11
12
13
15
16
17
18
19
20
21
24
25
26
27
23
1 Torch path
2 IHS start height
3 Puddle jump height
4 Pierce height
5 Transfer height
6 Workpiece
7 CNC cycle start (Cut Control)
8
Tip touch
9
Plasma start
10
Arc transfer
11
Creep time
12
Cut height
13
AVC begins
14
Stop time
15
Retract complete
16
Pierce delay
17
Cut height delay
18
AVC delay
19
AVC sampling
20
Auto kerf detect
21
Torch height disable
22
Cut Off time
23
CNC cut control active
24
Plasma torch active
25
Cutting X/Y motion
26
AVC active
27
Retract height
9
14
