PARTS LIST
6-2 HySpeed HT2000LHF Instruction Manual
6
Part
Item Number Description Designator Qty.
1 001233 Panel, HT2000 Front 1
2 129307 Fan SA:225CFM M3 1
027080 Fan:225CFM 120VAC 50-60HZ
027568 Fan Guard:6.375 DIA
3 129307 Fan SA:225CFM M2 1
027080 Fan:225CFM 120VAC 50-60HZ
027568 Fan Guard:6.375 DIA
4 129308 Fan SA:450-550CFM M4 1
027079 Fan:450-550CFM 120VAC 50-60HZ
027567 Fan Guard:8.75 DIA
5 008509 Bushing 1.75 MTG X 1.37 ID 3
6 008245 Bushing, 7/8" Hole X 11/16" ID 1
7 041764 PCB Assy: HT2000LHF Control PCB2 1
8 041276 PCB Assy: HT2000 Anlg PCB3 1
9 041246 PCB Assy: Relay, HD1070 / HT2000 PCB4 1
001566* Panel:HT2000 Front Filter 1
001567* Cover:HT2000 Front Filter Panel 1
027441* Filter:24 X 24 X 2 Fiberglass air 1
029697** HT2000 THC SA
* Items not shown in Figure 6-1
** Used only in HT2000LHF power supplies with the THC option – see Figure 6-2

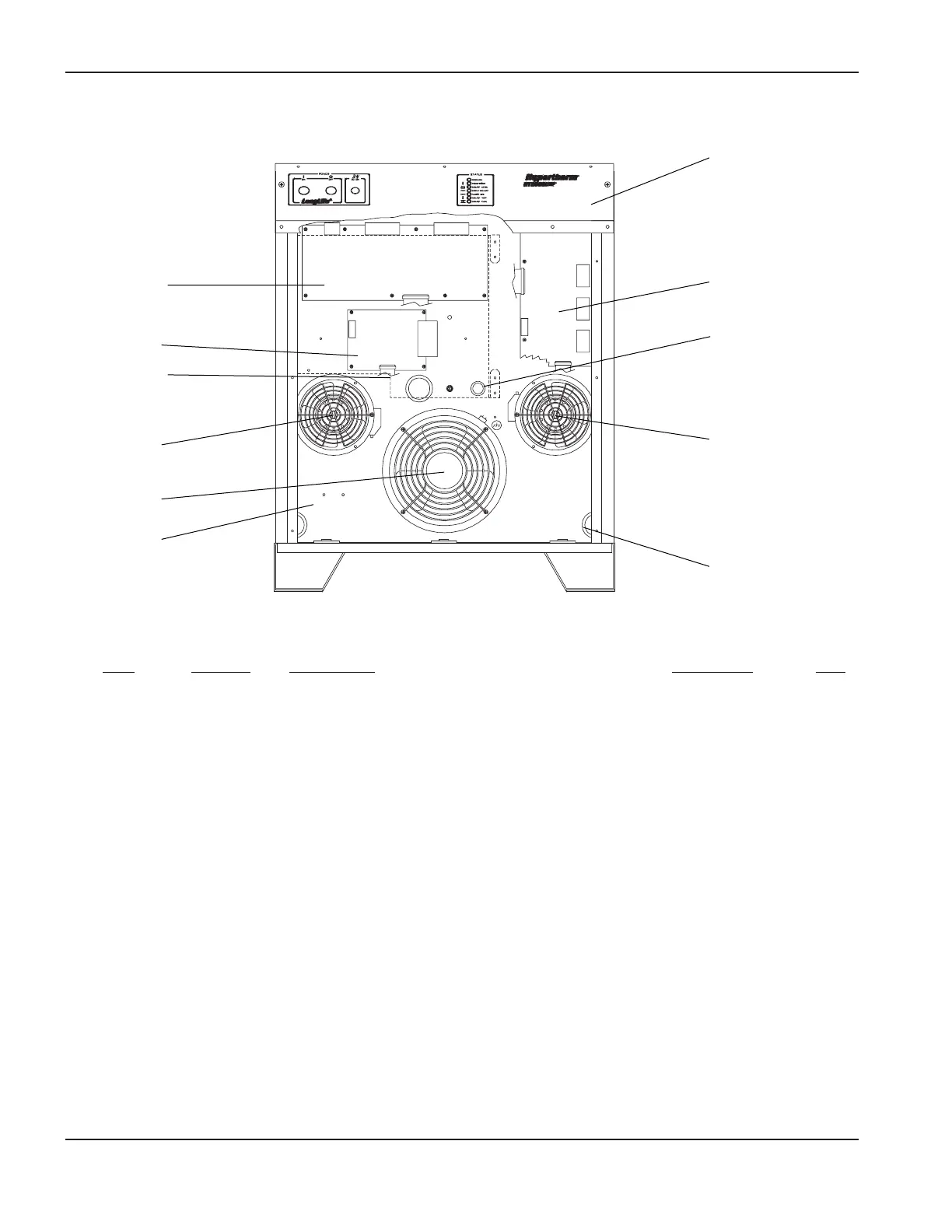

Figure 6-1 HT2000LHF Power Supply – Front Panel
HT2000LHF Power Supply: Front Panel
1
2
4
3
5
6
7
8
9
See Figure 6-3
for detail of
control panel
See Figure 6-2
for detail of
THC module
