PARTS LIST
6-6 HySpeed HT2000LHF Instruction Manual
6
Part
Item Number Description Designator Qty.
1 129118 CH130 CE/LVD Chopper SA CH1 1
005199 Temperature Switch 82°C TSW1 1
2 129118 CH130 CE/LVD Chopper SA CH2 1
005199 Temperature Switch 82°C TSW2 1
3 008509 Bushing 1.75 MTG X 1.37 ID 3
4 041564 PCB Assy:Phase Loss Detection Circuit 1
HT2000LHF Power Supply: Front Wall Inside

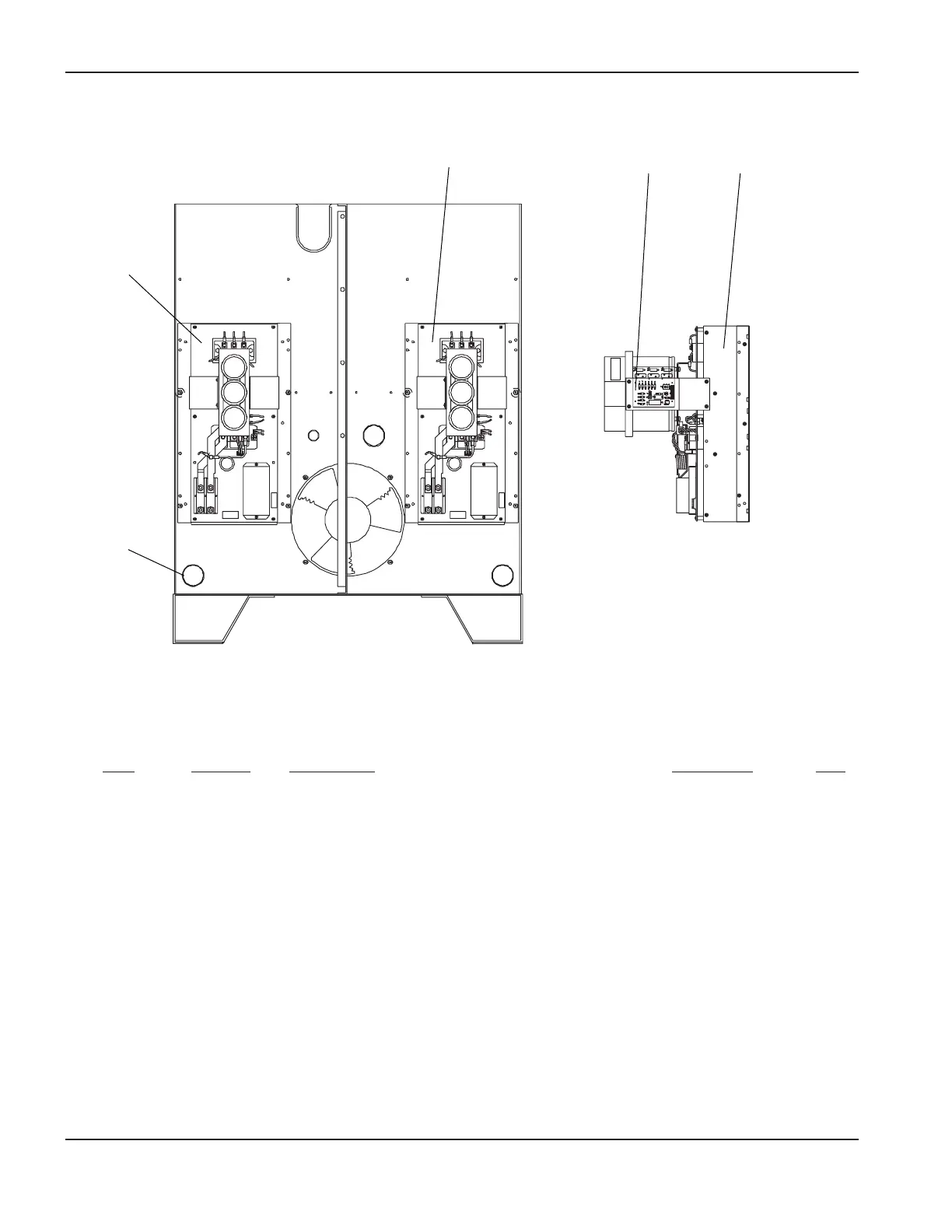

Figure 6-6 HT2000LHF Power Supply – Front Wall Inside
1
3
2
24
