PARTS LIST
HySpeed HT2000LHF Instruction Manual 6-3
6
Part
Item Number Description Designator Qty.
029697 HT2000 THC Assembly 1
1 001297 Cover: HT2000 THC Dust 1
2 004338 Hinge: THC Pan, HT2000 2
3 041294 PCB Assy: HT2000 THC Mother PCB9 1
4 041186 PCB Assy: HT2000 Torch Hght Cntrl PCB10 1
HT2000LHF Power Supply: THC Assembly (optional)
1
4
2
2
3

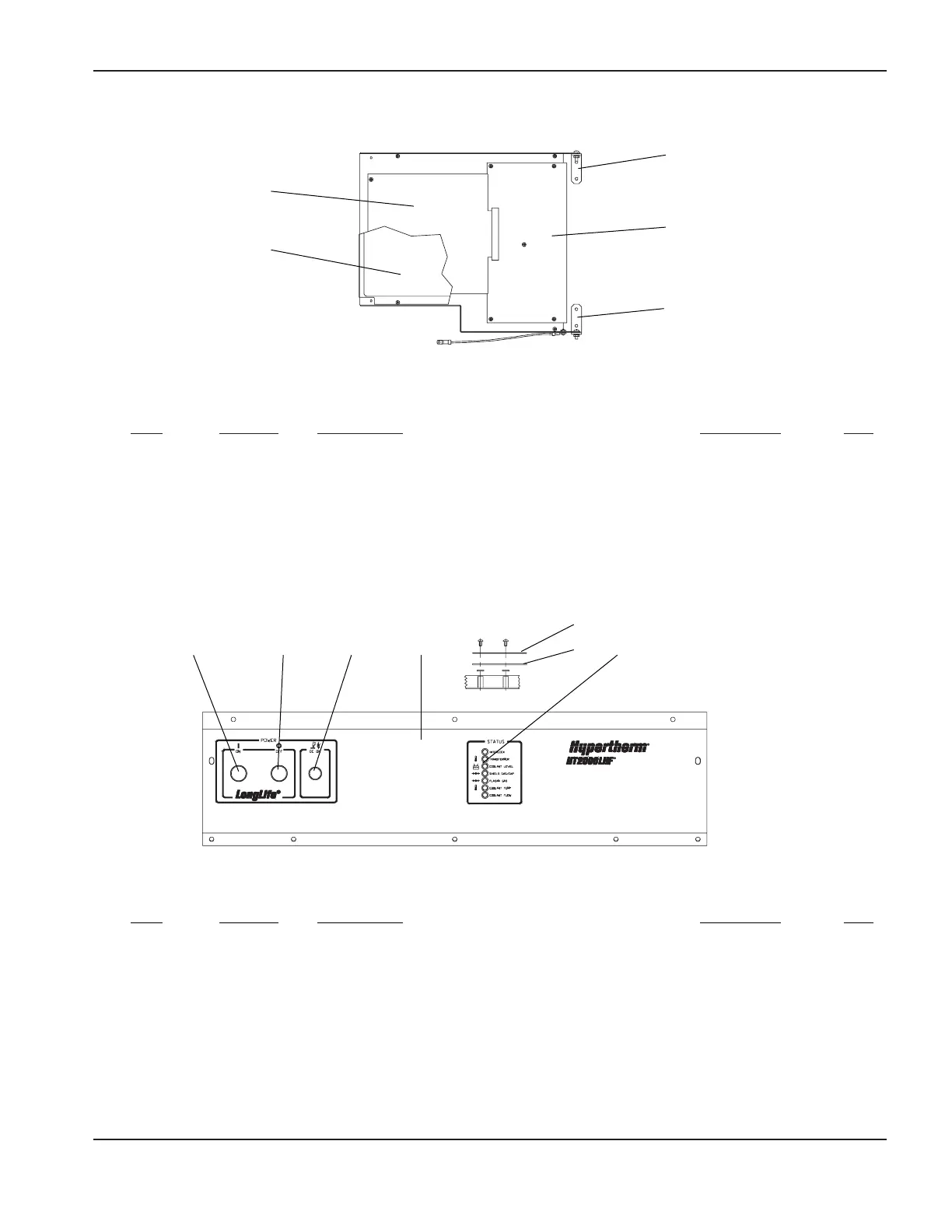

Figure 6-2 HT2000LHF Power Supply – THC Assembly
Part
Item Number Description Designator Qty.
129331 Contr Pnl SA, HT2000LHF 1
1 001661 Pnl :HT2000LHF Cont 1
2 005151 Lamp holder 1
3 005149 Bulb, 120VAC LT2 1
4 005089 Lens:White for 005088 1
5 041536 PC BD Assy Intlk Dsply 200/4001 PCB12 1
6 009063 Diode, Ind LED Amber 7
7 002278 Cover:HT2000 Cont. Panel SA 1
8 005121 Pushbutton, 2 NO Green Illumin PB1/LT1 1
9 005122 Pushbutton, 2 NC Red Extended PB2 1
Figure 6-3 HT2000LHF Power Supply – Control Panel
HT2000LHF Power Supply: Control Panel
12, 3, 4
5
6
7
89
