OPERATION
HySpeed HT2000LHF Instruction Manual 4-3
6
VOLTAGE Adjust Potentiometer
Adjusts the cutting arc voltage from 100 to 200
volts. Values are chosen from the Cut Charts
and depend on the thickness and type of metal
to cut.
CURRENT Adjust Potentiometer
Adjusts the cutting arc current from
40 amps to 200 amps. Values are
chosen from the
Cut Charts and depend on the
thickness and type of metal
to cut.
VOLTAGE LEDs
Display cutting voltage.
UP / DOWN LEDs
Indicate that torch height
is being adjusted up or
down.
CURRENT LEDs
Display cutting current.

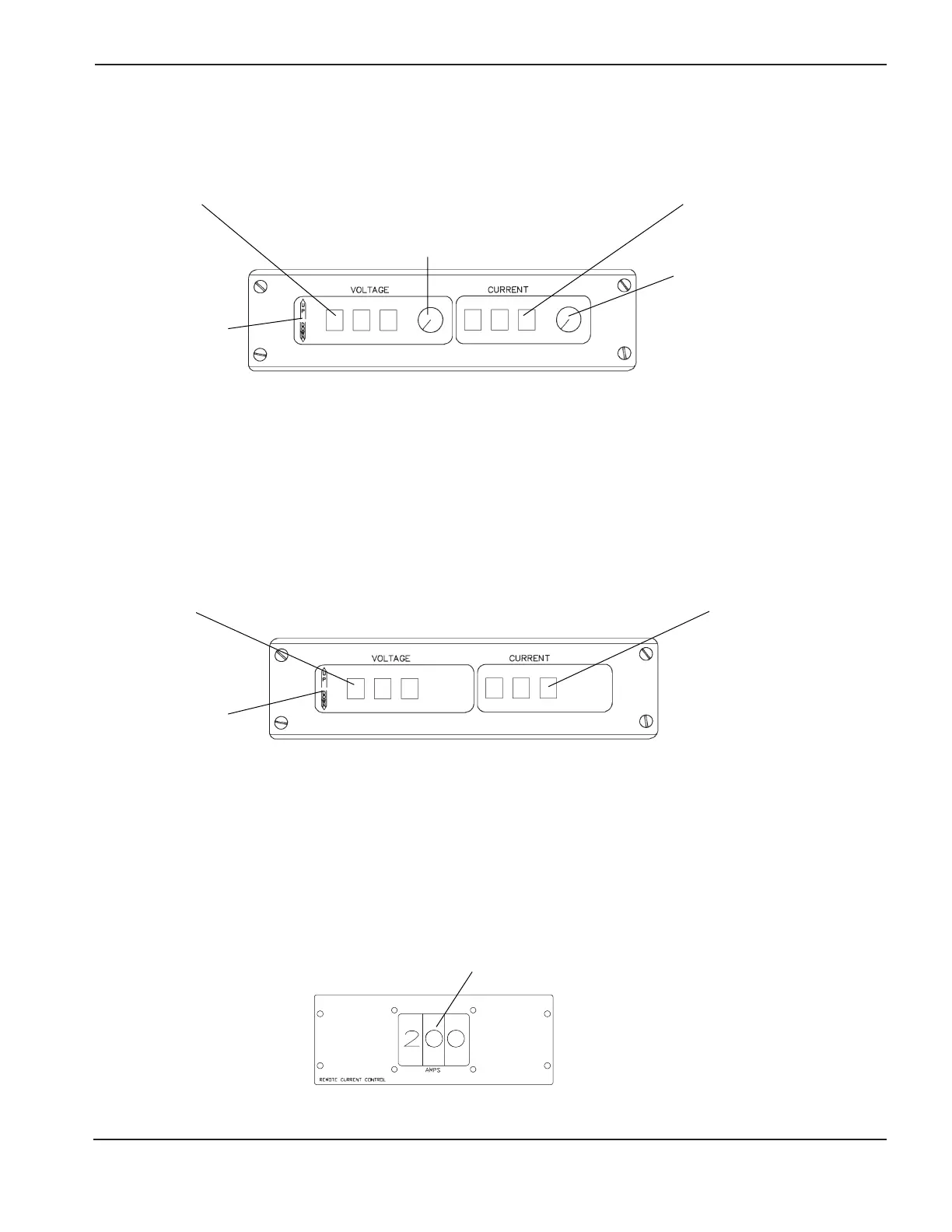

Figure 4-3 Digital Remote Voltage & Current Control Console Front Panel Controls and Indicators
VOLTAGE LEDs
Display cutting voltage during
cut sequence
CURRENT LEDs
Display cutting current during
cut sequence
UP / DOWN LEDs
Indicate that torch height
is being adjusted up or
down.
Figure 4-4 Programmable Remote Voltage & Current Control Console Front Panel Indicators
Digital Remote Voltage & Current Control Console
Programmable Remote Voltage & Current Control Console
Remote Current Control Console
AMPS Thumbwheel
Adjusts the cutting arc current from 40 amps to 200 amps. Values are
chosen from the Cut Charts and depend on the thickness and type of
metal to cut.
Figure 4-5 Remote Current Control Console Front Panel Controls
