Locations — Models 840, SB3 system unit with processor tower and FC 9079 Base
I/O Tower
For use by authorized service providers.
The following diagrams show FRU layout in the Models 840, SB3 system unit with processor tower and
FC 9079 base I/O tower. Use it with the tables and additional diagrams below. If you need address
information, refer to Addresses — Models 840, SB3 system unit with processor tower and FC 9079 base
I/O tower.

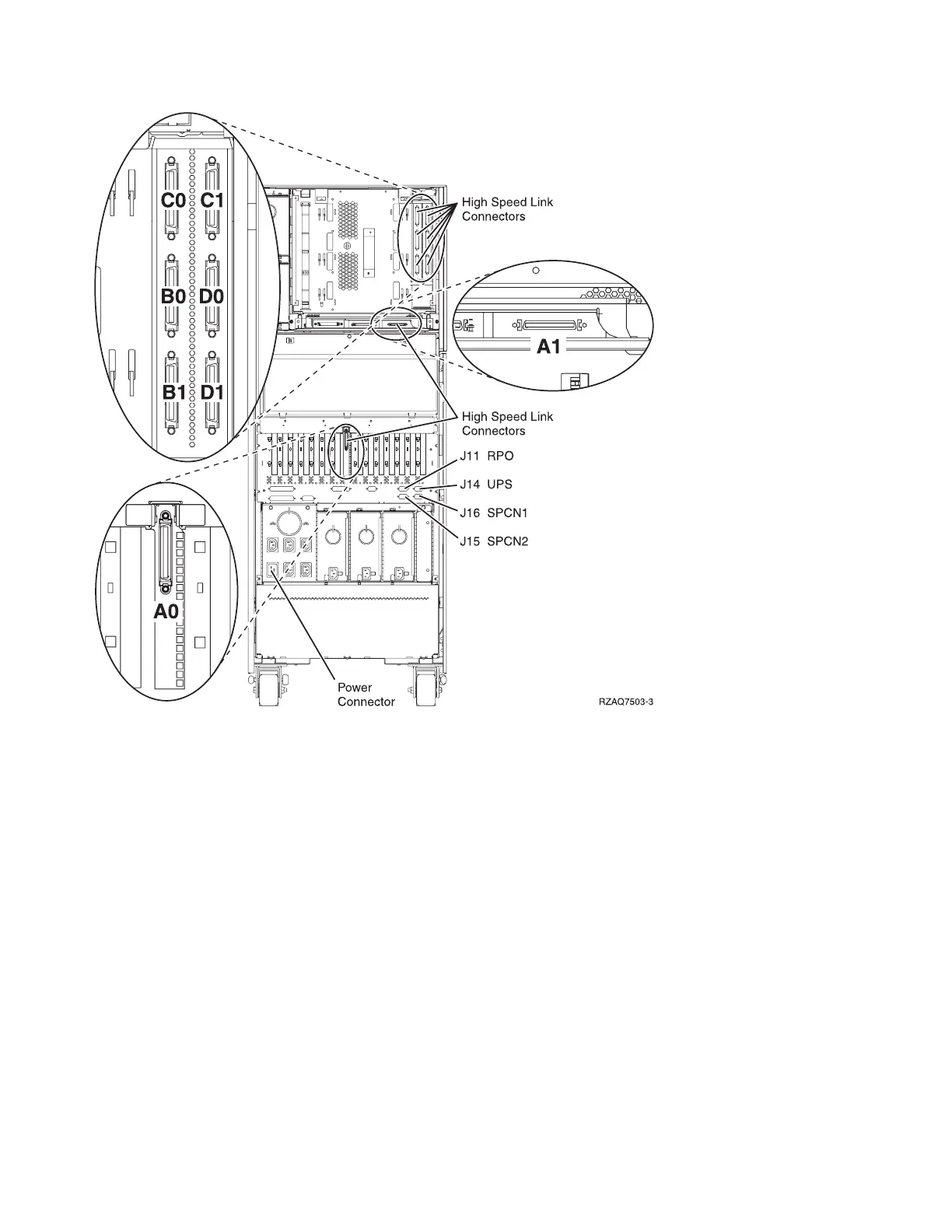

Figure 1a. Model 840, SB3 processor tower (single line cord)
270 Hardware (Remove and Replace; Part Locations and Listings)
