IBM iSeries 270 - Locations - Models 870 and 890

v “Locations — Models 870 and 890”
v “Locations — FC 9094 Base I/O Tower” on page 291
Locations — Models 870 and 890: The following diagram shows FRU layout in the Models 870 and
890. Use it with the tables below. If you need address information, refer to Addresses — Models 870 and
890 with an FC 9094 Base I/O Tower.

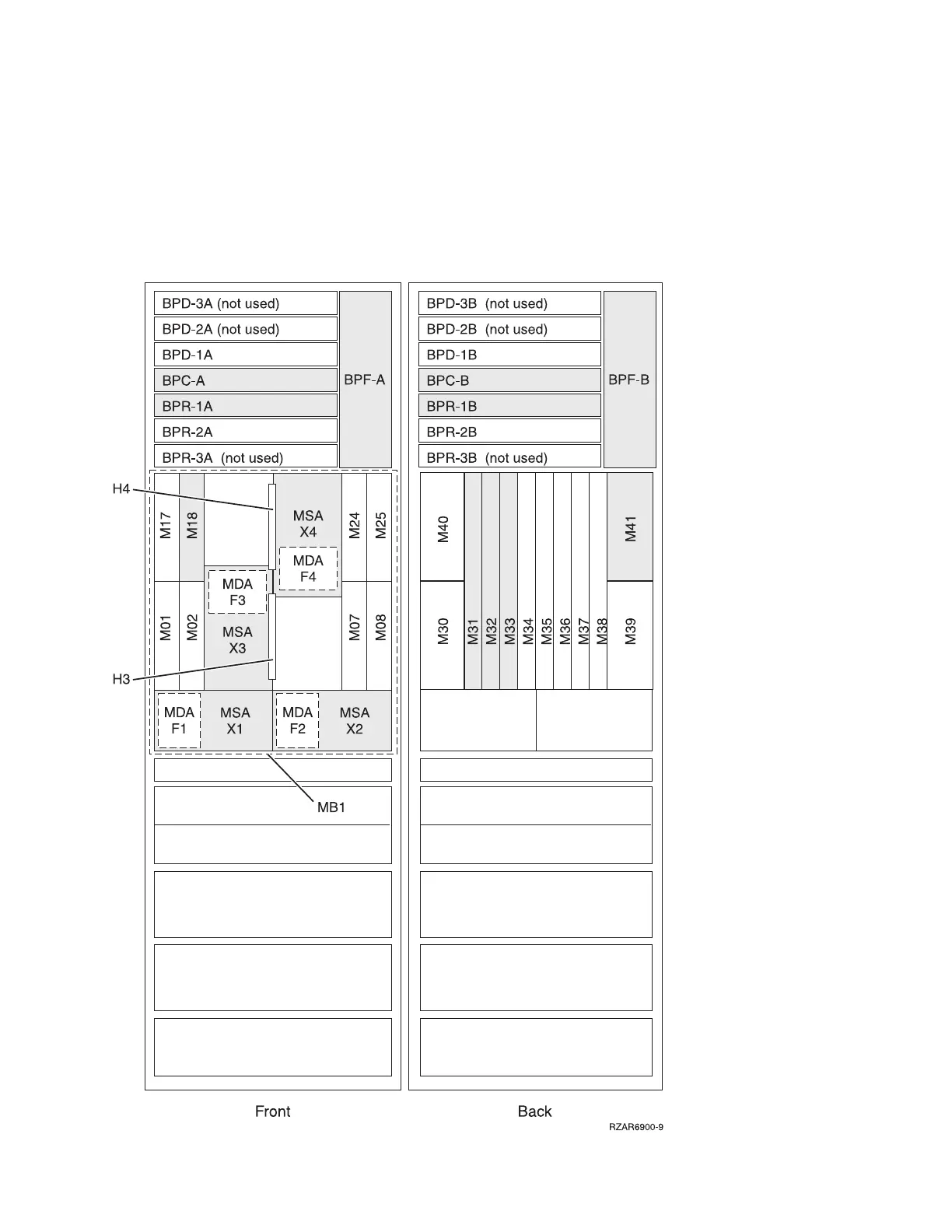

Figure 1. Locations for Models 870 and 890 - System Tower
Analyze hardware problems 285
