8. Remove the screw that attaches the interlock switch to the top of the frame.
9. Disconnect the two wires attached to the switch.
10. Install the new part by reversing this procedure.
This ends the procedure.
Model 825 - Memory - A through H
For use by authorized service providers.
To remove or replace the memory - A through H in the Model 825, refer to the Model 825 - Cards
(dedicated) procedure.
Model 825 - Power cable harness assembly
For use by authorized service providers.

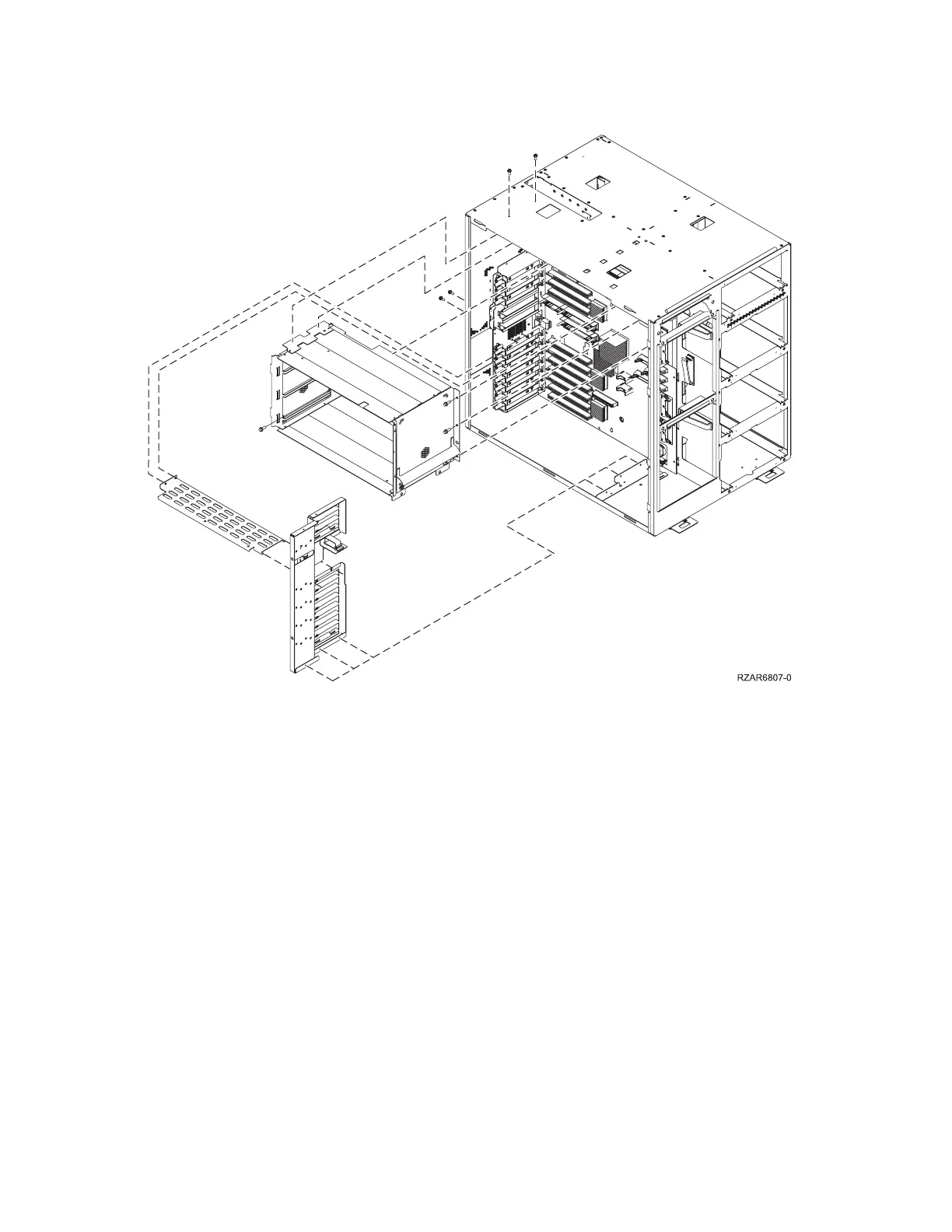

Use this procedure to remove and install the power cable harness assembly on the Model 825.
Note: Screw head sizes are 5.5mm and 7mm.
To remove or replace the power cable harness assembly:
1. Power off the system and remove the power cord. See Power on/off the system and logical partitions.
2. Remove the front, rear, and right side covers as viewed from the front. See Model 825 - Covers
3. Remove the power supplies.
Analyze hardware problems 41
