Installing the CD-RW/DVD drive
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
Note: Before running a procedure, refer to “Removing a file module to perform a
maintenance action” on page 51.
To install the replacement CD-RW/DVD drive, complete the following procedure.
1. To help you work safely with Storwize V7000 Unified file modules, read the
safety information in “Safety” on page xi, “Safety statements” on page xiii, and
“Installation guidelines” on page 54.
2. Follow the instructions that come with the drive to set any jumpers or switches.
3. If a drive filler panel is in place, remove it.

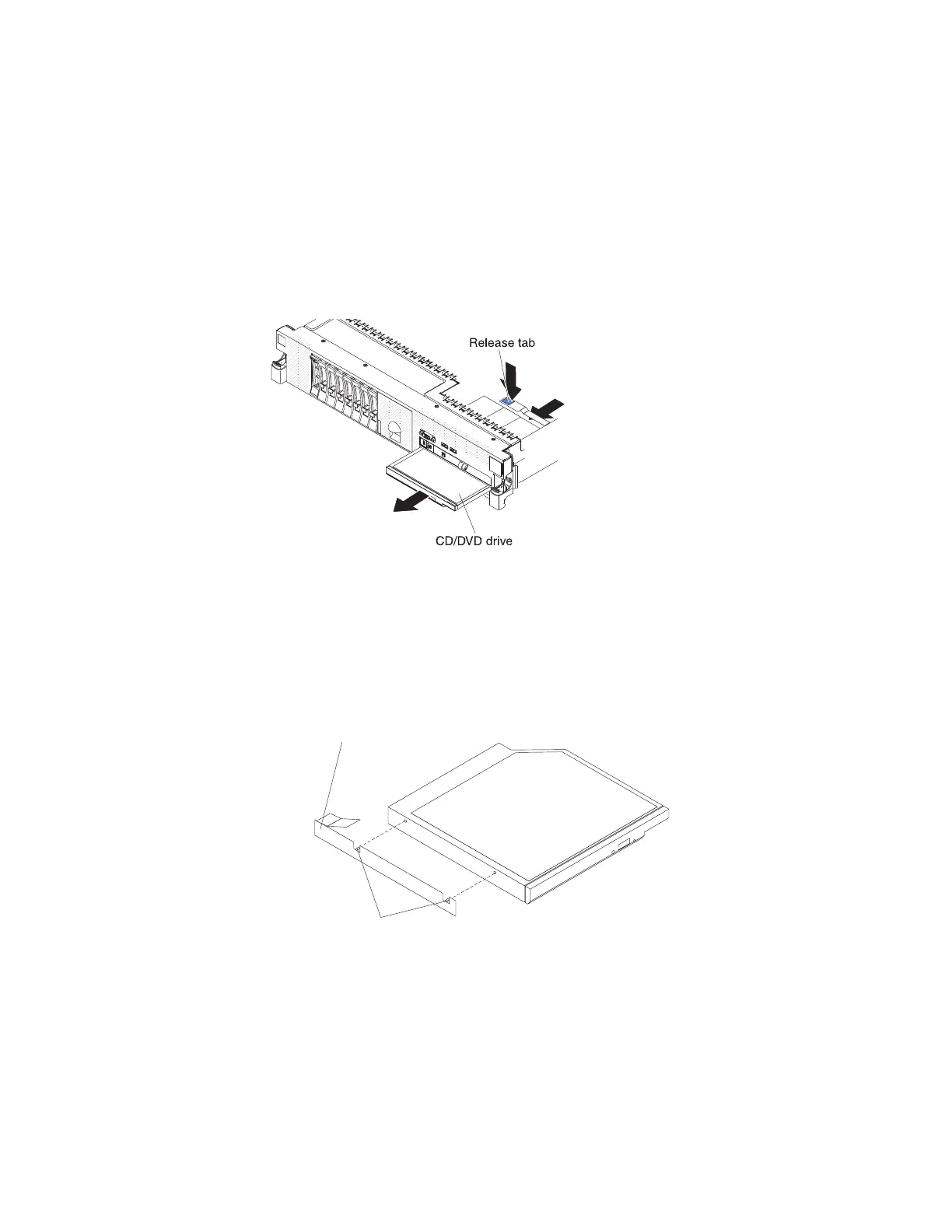

4. Attach the drive-retention clip to the side of the drive. The retention bracket is
not secured by any fasteners; carefully attach the retention bracket to the
CD-RW/DVD drive, noting the point of attachment as indicated in the figure.
Alignment pins
Drive retention clip
5. Slide the drive into the CD/DVD drive bay until the drive clicks into place.
6. Install the cover, as described in “Installing the cover” on page 84.
7. Slide the file module into the rack.
8. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the file module.
Note: You must wait approximately 2.5 minutes after you connect the power
cord of the file module to an electrical outlet before the power-control button
becomes active.
