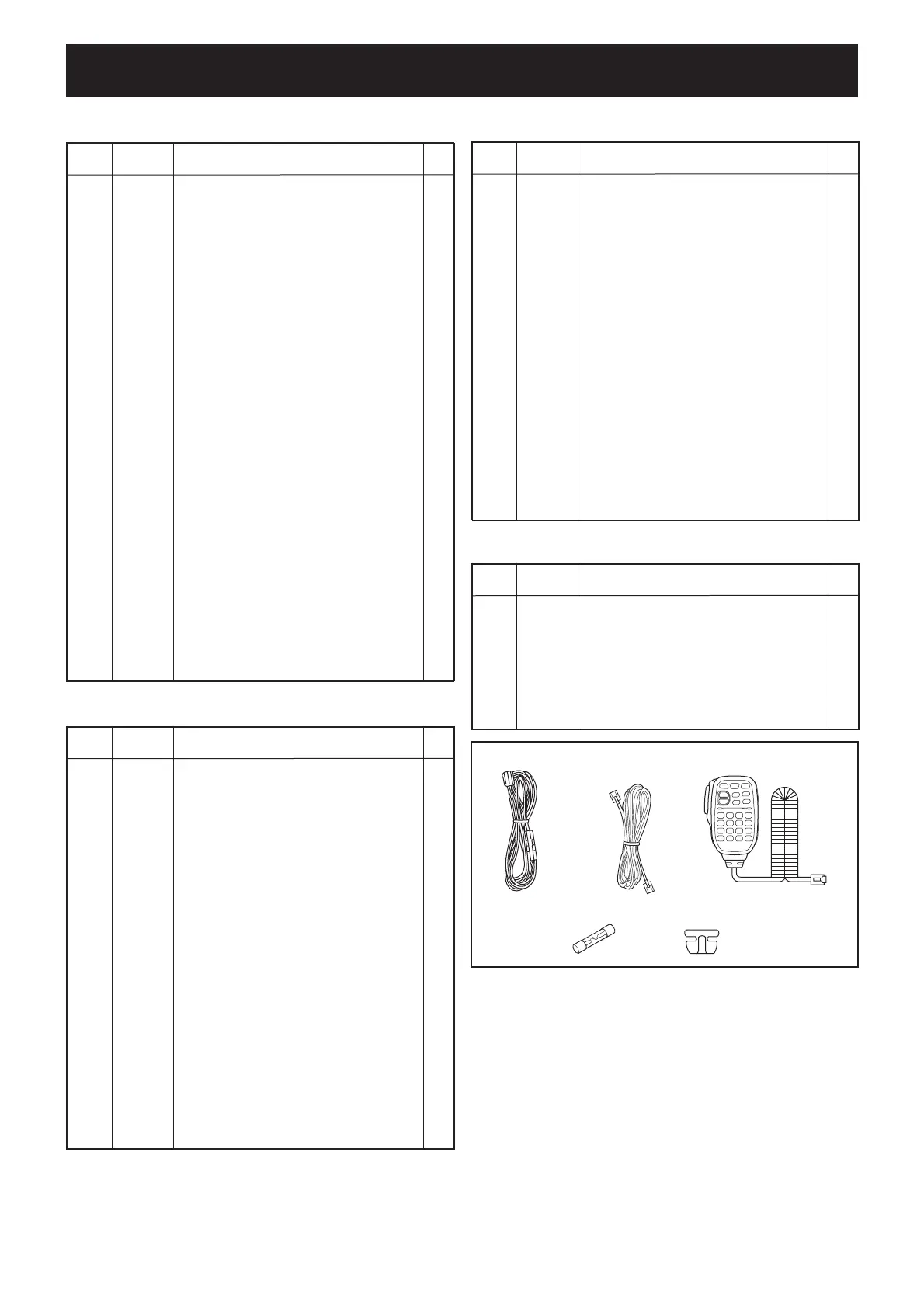

7-1
[CONTROL UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1* 6510027710 S5B-ZR-SM4A-TF (LF) (SN) 1
J2* 6510028740 14FLH-SM1-TB (LF) (SN) 1
J3* 6510028880 04-6238-010-410-800+ 1
J5* 6510030110 IMSA-9681S-38Y901 1
J6 6450002260 6606A-B11G ROHS <KTC> 1
J7* 6510030080 IMSA-9632S-04Y800 1
DS1 5030003870 JIC-MSGF013343-01 <RYOYO> 1
S4 2250000880 EC12E2420801 1
S5 2250000880 EC12E2420801 1
S6* 2260002740 LS8J2M-T 1
S7* 2260002740 LS8J2M-T 1
W1** 8910000210 FFC-1026 (P0.5N10L80) 1
EP1 6910024590 WT5039-E <SKD> 1
EP13 6910024430 GPS-123B-077 1
MP1 8210029580 3484 FRONT PANEL (A) [EUR-01] 1
8210029580 3484 FRONT PANEL (A) [ITR-01] 1
8210029440 3484 FRONT PANEL [TPE-01] 1
8210029440 3484 FRONT PANEL [USA-01] 1
8210029440 3484 FRONT PANEL [KOR-01] 1
8210029440 3484 FRONT PANEL [EXP-01] 1
MP2 8210029710 3484 REAR PANEL ASSEMBLY 1
MP3 8930089000 3484 POWER BUTTON 1
MP4 8930089010 3484 LCD PLATE 1
MP5 8930089020 3484 LCD SPONGE 1
MP6 8930089520 3484 GPS SPONGE 1
MP7 8610014670 KNOB N-415 2
MP8 8610014681 KNOB N-416-1 2
MP9 8610014690 KNOB N-417 2
MP10 8810009181 BT M2 X 5 NI-ZC3 4
MP11 8810009221 PHB0 M2 X 8 NI-ZK3 BT 4
MP12 8810009221 PHB0 M2 X 8 NI-ZK3 BT 4
MP16 8930064320 SPONGE (HW) 1
MP17 8310085160 3484 GPS LABEL 1
[MAIN UNIT]
[ACCESSORIES]
[CHASSIS UNIT]
REF ORDER
DESCRIPTION
QTY.
NO. NO.
J1* 6510014961 B2B-ZR-SM4-TF (LF) (SN) 1
J100* 6510023110 3008L-8P8C <KIN> 1
J101* 6450001440 HSJ1403-01-010 1
J102* 6510025940 PJ-3047S <XIN> 1
J103* 6510014961 B2B-ZR-SM4-TF (LF) (SN) 1
J300* 6510025950 PCB-606 (6P6C) BLACK <VKH> 1
J301* 6510029570 20P5.0-JMCS-G-B-TF (N) 1
J304* 6510027740 HSJ2462-010010 1
J305* 6510028980 SCDABA0500 1
J400* 6510029010 20FHSY-RSM1-GAN-TB (LF) (SN) 1
BT300* 3020000390 ML414HIV01E 1
W1* 7030012290 RDS2T0R0 1
W300** 8900015130 OPC-1131A 1
MP200* 8510018150 2969 B-VCO CASE 1
MP202* 8510016471 2775 VCO CASE-1 1
MP203* 8510018140 2969 S-VCO CASE 1
MP204* 8510018150 2969 B-VCO CASE 1
MP206* 8510016471 2775 VCO CASE-1 1
MP207* 8510018140 2969 S-VCO CASE 1
MP208* 8510018160 2969 B-VCO COVER 2
MP210* 8510016461 2775 VCO COVER-1 2
MP211* 8510016461 2775 VCO COVER-1 2
MP212 8930060270 2633 M-SHEET 2
MP213 8930059770 2633 M-HOLDER Y668 2
MP214 8930088330 FERRITE SHEET (AM) 1
MP400 8510020600 3390 DSP CASE <KN> 1
MP401 8930079760 SHIELD SPONGE (CO) 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
W1**
8600036881
SP CABLE-1 (FX2493 P01LO)<PHL>
1
J1* 6510004881 MR-DSE-01-1 <GA> 1
SP1 2510001160 057P0802 1
MF1 2710000820 EFB0412VHD-6P38 <USE> 1
MP1 8010022980 3484 CHASSIS 1
MP2 8210029460 3484 CHASSIS PANEL 1
MP3 8110010550 3484 U-COVER ASSEMBLY 1
MP4 8110010540 3484 L-COVER 1
MP5 8110009020 2969 FAN COVER 1
MP6 8930078590 3167 SP RUBBER (TOP) 1
MP7 8930089330 3484 CLIP Y1311 1
MP8 8810009611 FLAT M2.6X 6 ZK3 16
MP9 8810008661 PHBT M3 X 8 NI-ZC3 13
MP10 8810008661 PHBT M3 X 8 NI-ZC3 4
MP11 8810008661 PHBT M3 X 8 NI-ZC3 2
MP12 8810010141 SCREW PH M3 X30 ZK3 4
MP14 8930078390 THERMAL SHEET (BQ) TC350HS-1.4 (8X20) 1
MP15 8310081740 3393 NAME PLATE 1
MP16 8930089600 3561 PLATE Y1322 1
MP17 8810007410 PH M3 X 6 NI 1
MP18 8930085720 SPONGE (LV) 1
REF ORDER
DESCRIPTION
QTY.
NO. NO.
F1 5210000080 FGB 20A (FGB0 125V) 1
MC1 (Optional) HM-207 (KEYBOARD-E) 1
W1 (Optional) OPC-1132A 1
W2 8900008610 OPC-837 1
MP1 8930007300 MIC HANGER 1
SECTION
7
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
W2
MC1
F1
MP1
W1
To Next Page
