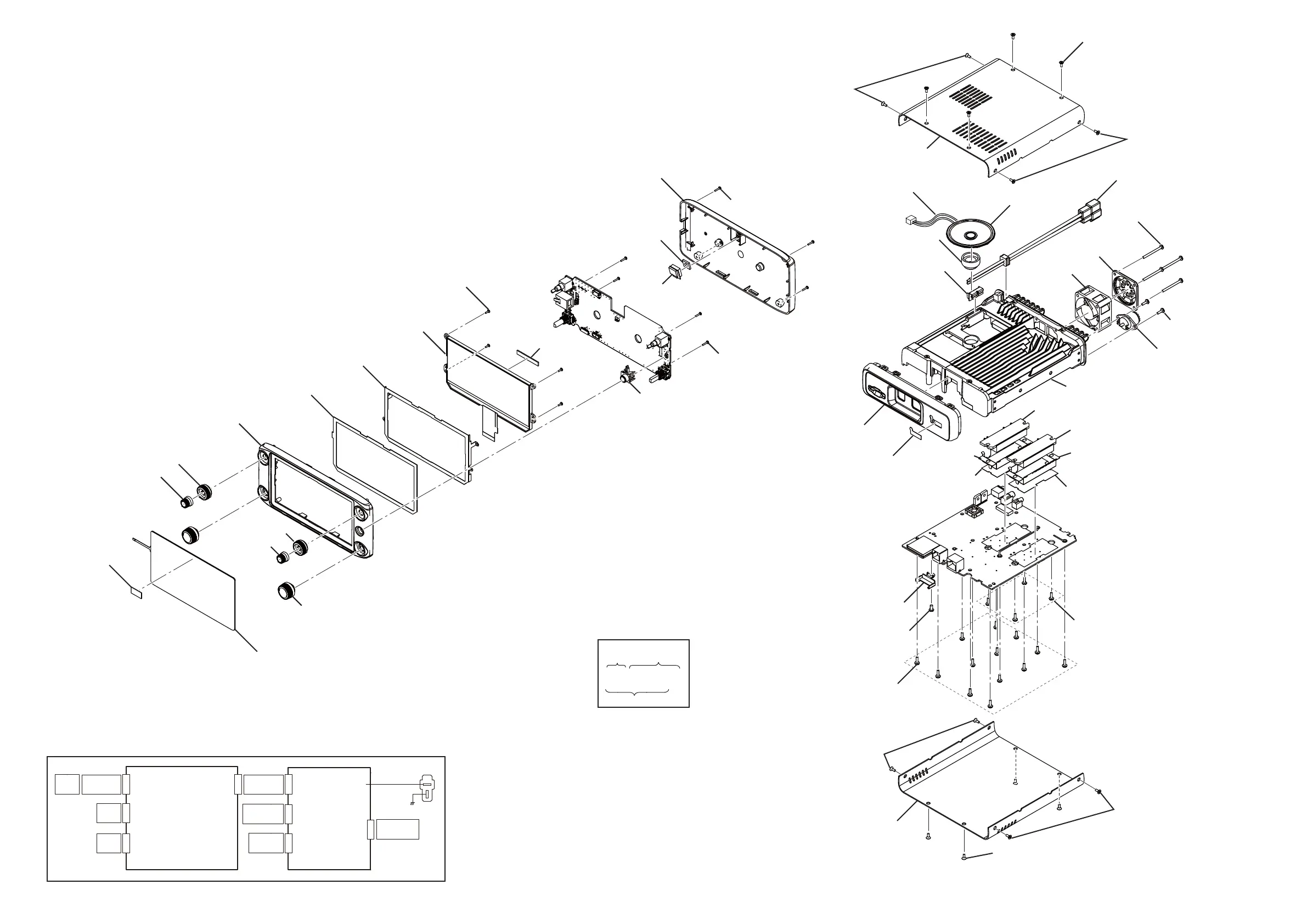

Icom ID-5100A Service Manual

7-2
MP8(CONTROL)
(8610014681)
MP17(CONTROL)
(8310085160)
MP7(CONTROL)
(8610014670)
MP8(CONTROL)
(8610014681)
MP7(CONTROL)
(8610014670)
MP1(CONTROL)
(Refer to the list.)
DS1(CONTROL)
(5030003870)
MP11(CONTROL)x4
(8810009221)
MP4(CONTROL)
(8930089010)
MP5(CONTROL)
(8930089020)
EP1(CONTROL)
(6910024590)
MP2(CONTROL)
(8210029710)
MP213(MAIN)
(8930059770)
MP12(CHASSIS)x4
(8810010141)
MP6(CONTROL)
(8930089520)
MP7(CHASSIS)
(8930089330)
MP6(CHASSIS)
(8930078590)
W1(CHASSIS)
(8600036881)
MP5(CHASSIS)
(8110009020)
MF1(CHASSIS)
(2710000820)
MP8(CHASSIS)x4
(8810009611)
MP8(CHASSIS)
(8810009611)
MP8(CHASSIS)x2
(8810009611)
MP8(CHASSIS)x2
(8810009611)
MP8(CHASSIS)
(8810009611)
MP8(CHASSIS)x4
(8810009611)
W300(MAIN)
(8900015130)
IC3(MAIN)
(1150002423)
MP213(MAIN)
(8930059770)
MP16(CONTROL)
(8930064320)
IC4(MAIN)
(1150002400)
SP1(CHASSIS)
(2510001160)
NOTE: When replacing a flat cable, form the new one in the same shape as the original.
MP212(MAIN)
(8930060270)
MP10(CHASSIS)x4
(8810008661)
MP3(CONTROL)
(8930089000)
MP9(CONTROL)
(8610014690)
MP11(CONTROL)
(8810009221)
MP12(CONTROL)
(8810009221)
MP1(CHASSIS)
(8010022980)
J1(CHASSIS)
(6510004881)
MP11(CHASSIS)x2
(8810008661)
EP13(CONTROL)
(6910024430)
MP212(MAIN)
(8930060270)
MP15(CHASSIS)
(8310081740)
MP16(CHASSIS)
(8930089600)
MP17(CHASSIS)
(8810007410)
MP2(CHASSIS)
(8210029460)
MP4(CHASSIS)
(8110010540)
MP9(CHASSIS)x13
(8810008661)
MP3(CHASSIS)
(8110010550)
MP1 (CHASSIS)
Ref. No.
Legend:
Unit Name
Parts No.
(1234567890)
MF1(CHASSIS)
W300(MAIN)
(8900015130)
DC cable
LCD
Cooling fan
GPS
(EP13)
W1(CONTROL)
(8910000210)
J3 J300J6
(DS1)
(EP1)
Touch
panel
CONTROL UNIT
MAIN UNIT
W2
(Optional)
J6
J5
HM-207
(Optional)
J100
Speaker
SP1(CHASSIS)
J103
J7
• GENERAL WIRING
