Inovance MD380 Series User Manual

Mechanical and Electrical Installation MD380 User Manual
- 30 -

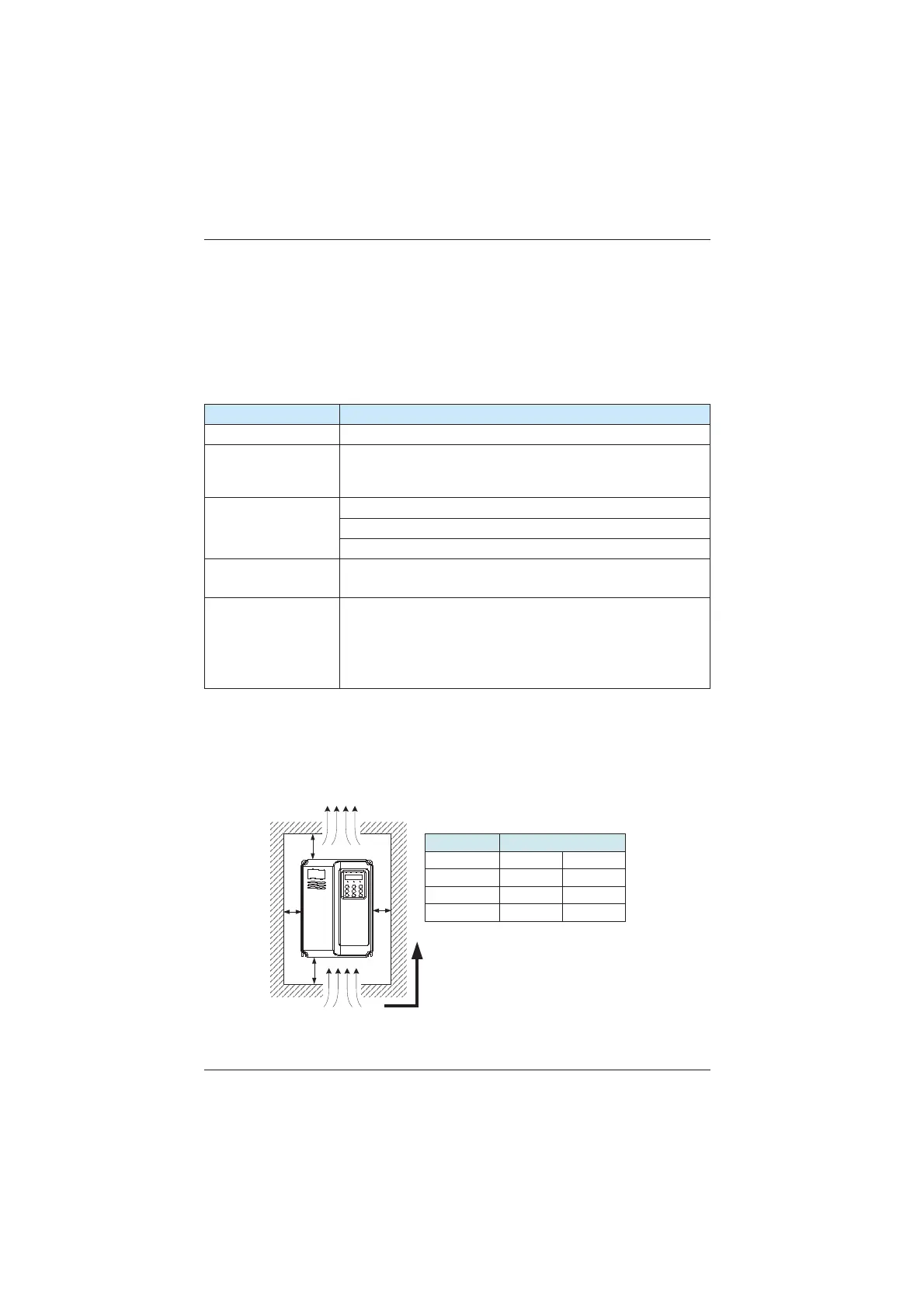

Chapter 3 Mechanical and Electrical Installation
3.1 Mechanical Installation
3.1.1 Installation Environment Requirements
Item Requirements
Ambient temperature
-10°C to +50°C
Heat dissipation
Install the AC drive on the surface of an incombustible object, and
HQVXUHWKDWWKHUHLVVXI¿FLHQWVSDFHDURXQGIRUKHDWGLVVLSDWLRQ
Install the AC drive vertically on the support using screws.
Mounting location
Free from direct sunlight, high humidity and condensation
Free from corrosive, explosive and combustible gas
Free from oil dirt, dust and metal powder
Vibration
Less than 0.6 g
Far away from the punching machine or the like
Protective enclosure
The MD380 series AC drive of plastic housing is a built-in product
DQGQHHGVWREHLQVWDOOHGLQWKH¿QDOV\VWHP2QO\WKHRSHUDWLRQ
SDQHOH[SRVHVRQWKH¿QDOFRYHUIRUWKHXVHUWRSHUIRUPRSHUDWLRQV
7KH¿QDOV\VWHPPXVWKDYHWKHUHTXLUHG¿UHSURRIFRYHUHOHFWULFDO
protective cover and mechanical protective cover, and satisfy the
regional laws & regulations and related IEC requirements.
3.1.2 Installation Clearance Requirements
The clearance that needs to be reserved varies with the power class of the MD380, as
VKRZQLQWKHIROORZLQJ¿JXUH
Figure 3-1 Clearance around the MD380 for installation
The AC drive shall be installed vertically upward.
B
B
A
A
MD380
Hot air
Cold air
0.4 í 15 N: A  10 mm B  100 mm
18.5 í 22 N: A  10 mm B  200 mm
30 í 37 N: A  50 mm B  200 mm
45 í 560 N: A  50 mm B  300 mm
Installation clearance requirements on
the MD380 series AC drives of different
power classes
Power Class Clearance Requirements
