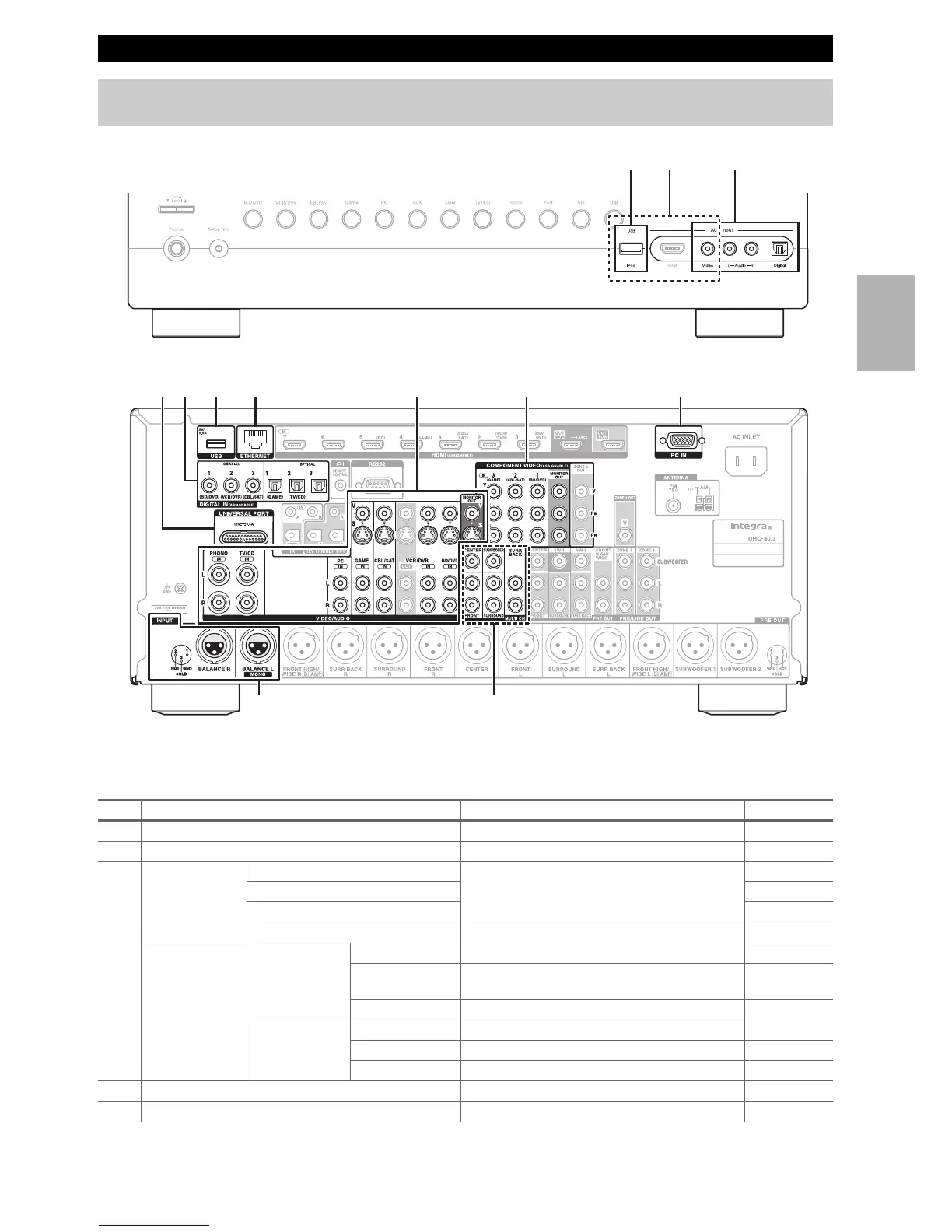

Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection
Tips and Video Signal Path” for more information (➔ page 95).
✔: Assignment can be changed (➔ page 51).
Connecting Your Components
The on-screen menus appear only on a TV that is connected to the HDMI OUT MAIN. If your TV is connected to
other video outputs, use the AV controller’s display when changing settings.
No. Jack/Port Components Assignable
A
USB
*1
iPod/iPhone, MP3 player, USB flash drive
B
USB, AUX Input Video iPod/iPhone (video playback)
C
AUX Input Video Camcorder, etc.
Audio L/R
Digital
D
UNIVERSAL PORT Universal port option dock (UP-A1 etc.)
E
DIGITAL IN COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔
2 (VCR/DVR) VCR or DVD recorder/digital video recorder, RI
dock
✔
3 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔
OPTICAL 1 (GAME) Game console ✔
2 (TV/CD) TV, CD player ✔
3 Other components ✔
F
USB
*1
MP3 player, USB flash drive
G
ETHERNET Router
CBA
EDJF G I
L
H
K
Front
Rear
