Electrical Specifications
20 Datasheet
NOTES:
1. The loadline specification includes both static and transient limits except for overshoot
allowed as shown in Section 2.5.3.
2. This loadline specification shows the deviation from the VID set point.
3. The loadlines specify voltage limits at the die measured at the VCC_SENSE and
VSS_SENSE lands. Voltage regulation feedback for voltage regulator circuits must be taken
from processor VCC and VSS lands. Refer to the Voltage Regulator-Down (VRD) 11.0
Processor Power Delivery Design Guidelines For Desktop LGA775 Socket for socket loadline
guidelines and VR implementation details.

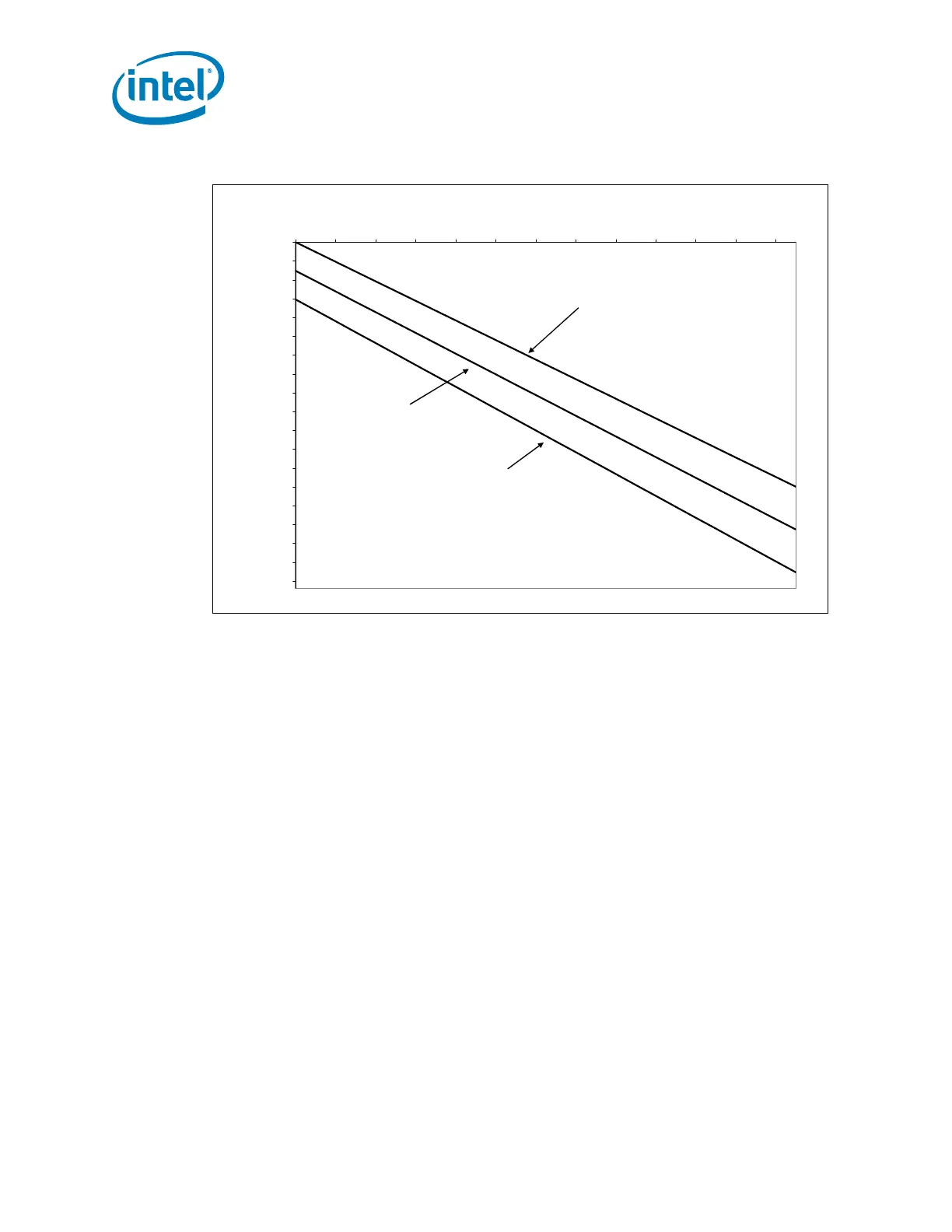

Figure 1. V
CC
Static and Transient Tolerance
VID - 0.000
VID - 0.013
VID - 0.025
VID - 0.038
VID - 0.050
VID - 0.063
VID - 0.075
VID - 0.088
VID - 0.100
VID - 0.113
VID - 0.125
VID - 0.138
VID - 0.150
VID - 0.163
VID - 0.175
VID - 0.188
VID - 0.200
VID - 0.213
VID - 0.225
0 102030405060708090100110120
Icc [A]
Vcc [V]
Vcc Maximum
Vcc Typical
Vcc Minimum
