INVT GD20-0R7G-4 User Manual

Goodrive20 inverters Appendix B
123
B.2 Inverter chart

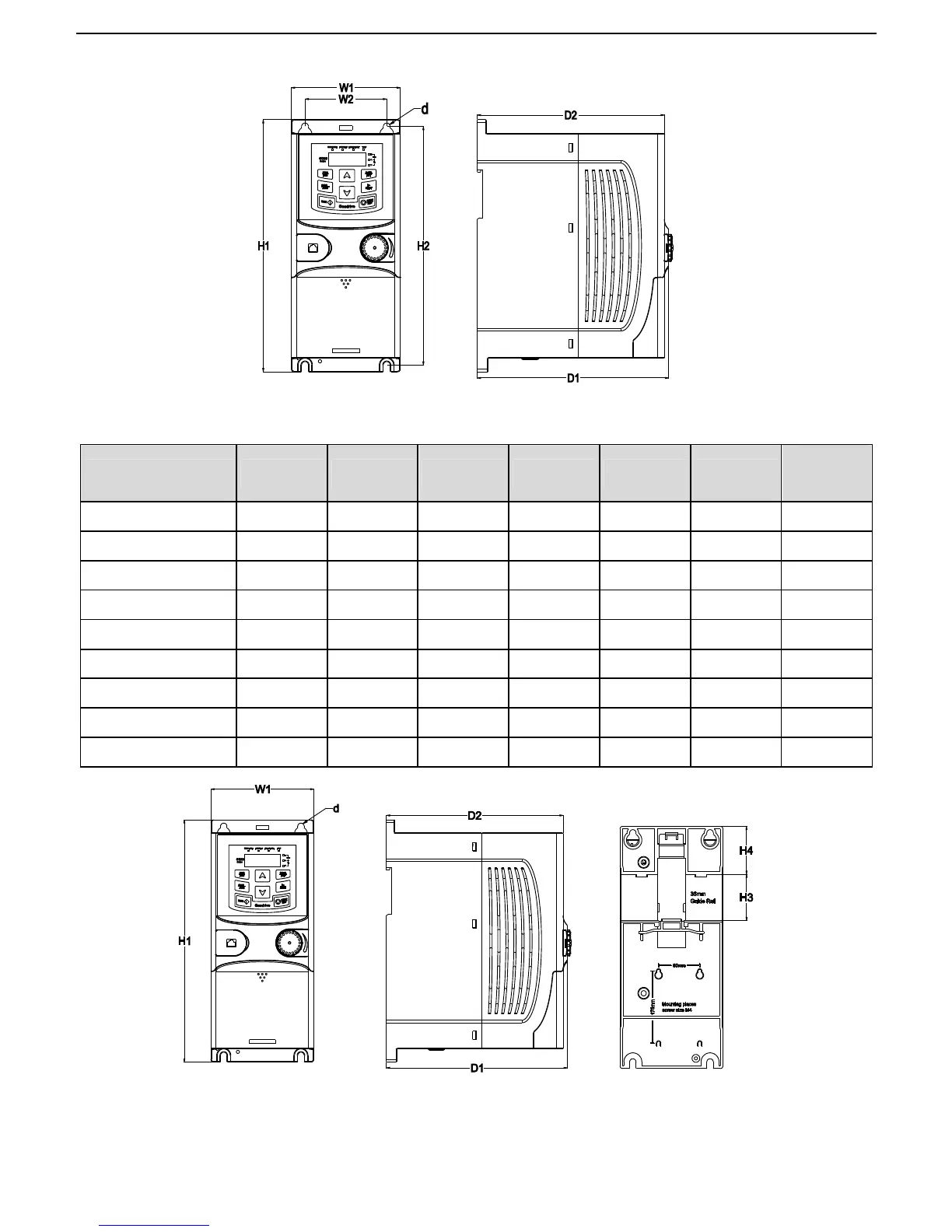

Wall mounting of 0.75~2.2kW inverters
Dimension (unit: mm)
Model W1 W2 H1 H2 D1 D2
Installatio
n hole (d)
GD20-0R4G-S2 80.0 60.0 160.0 150.0 123.5 120.3 5
GD20-0R7G-S2 80.0 60.0 160.0 150.0 123.5 120.3 5
GD20-1R5G-S2 80.0 60.0 185.0 175.0 140.5 137.3 5
GD20-2R2G-S2 80.0 60.0 185.0 175.0 140.5 137.3 5
GD20-0R4G-2 80.0 60.0 185.0 175.0 140.5 137.3 5
GD20-0R7G-2 80.0 60.0 185.0 175.0 140.5 137.3 5
GD20-0R7G-4 80.0 60.0 185.0 175.0 140.5 137.3 5
GD20-1R5G-4 80.0 60.0 185.0 175.0 140.5 137.3 5
GD20-2R2G-4 80.0 60.0 185.0 175.0 140.5 137.3 5
Rail mounting of inverters of 1PH 220V/3PH 380V (≤2.2kW) and 3PH 220V (≤0.75kW)
Dimension (unit: mm)

INVT GD20-0R7G-4 Specifications

General

Brand	INVT
Model	GD20-0R7G-4
Category	DC Drives
Language	English
