INVT GD20-0R7G-4 User Manual

Goodrive20 inverters Keypad operation procedure
22
4 Keypad Operation Procedure
4.1 Keypad introduction
The keypad is used to control Goodrive20 series inverters, read the state data and adjust parameters.

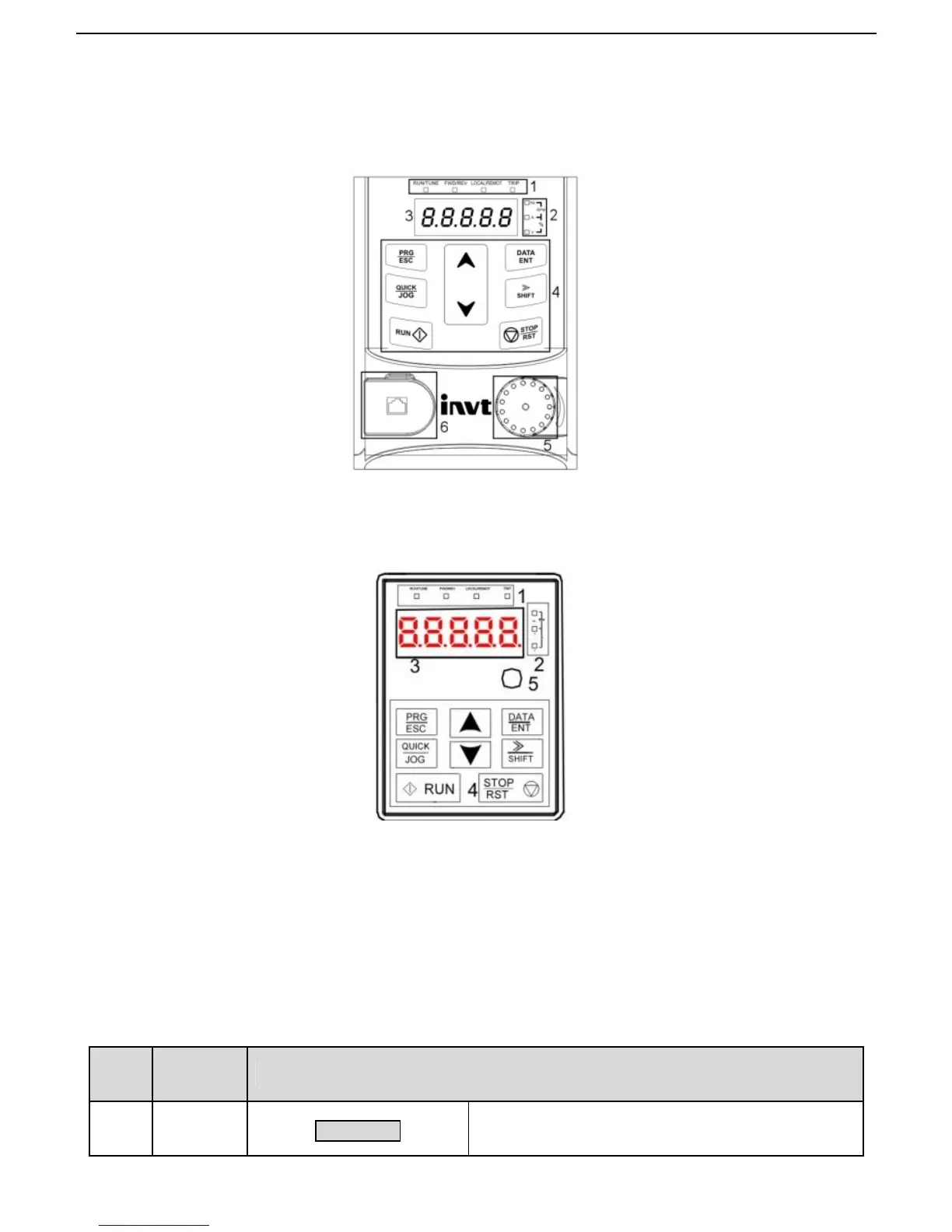

Figure 4-1 Film keypad
Figure 4-2 External keypad
Note:
1. The film keypad is standard for the inverters of 1PH 220V/3PH 380V(≤2.2kW) and the inverters of
3PH(≤0.75kW). The external keypad is standard for the inverters of 3PH 380V (≥4kW) and 3PH
220V (≥1.5kW).
2. The external keypads are optional (including the external keypads with and without the function of
parameter copying).
Serial
No.
Name Description
1 State LED
RUN/TUNE
LED off means that the inverter is in the stopping
state; LED blinking means the inverter is in the
